Home >> Oldsmobile >> 1995 >> Cutlass Ciera Cruiser L4-2.2L VIN 4 >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Exterior Lamps >> Rear Marker/Tail/License/Underhood >> Wagon

Wagon

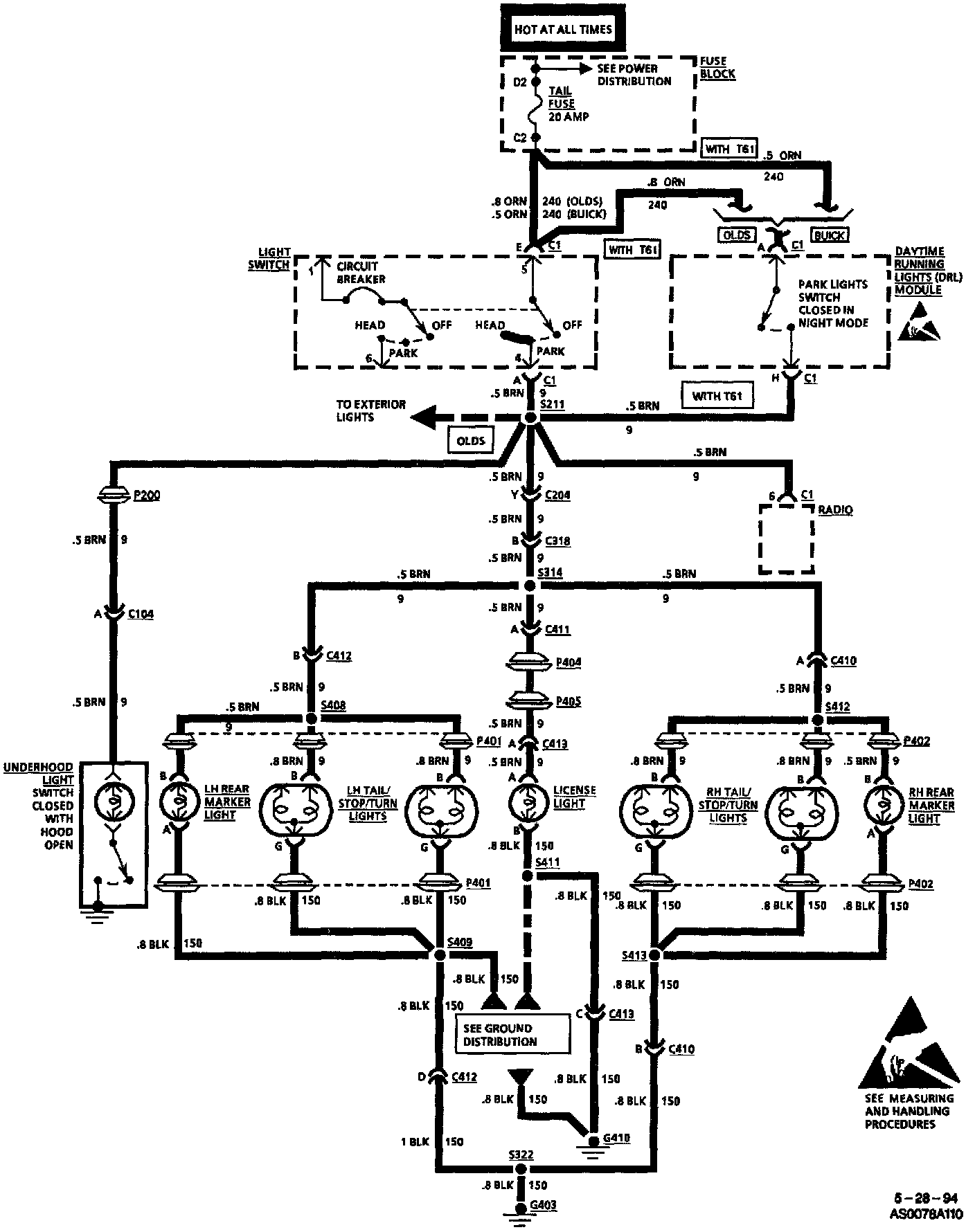

Rear Market/Tail/License/Underhood:
