Component Tests and General Diagnostics

Antenna System Test:

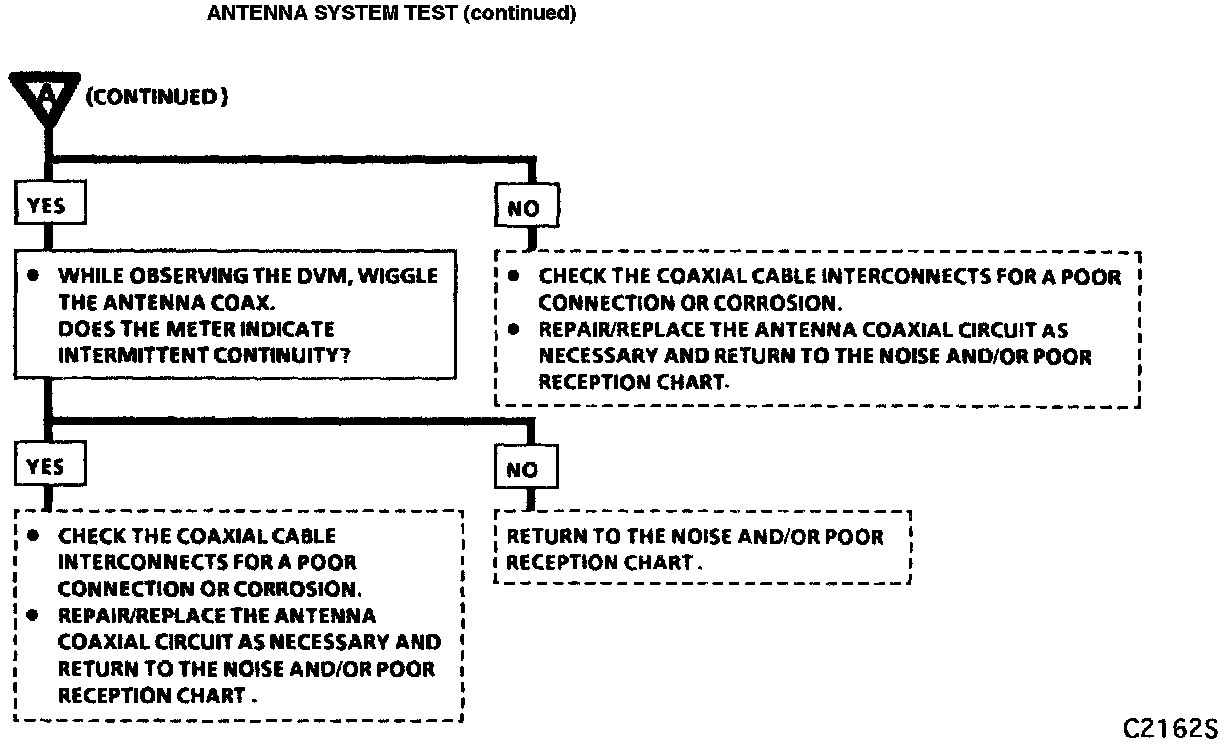

Antenna System Test (continued):

Important:
^ Before measuring the resistance of the antenna, remove the negative lead of the Battery and "Zero" the meter before taking measurements. When checking resistance, cautiously wiggle the antenna mast, the lead-in tip and cable. The readings below should always be obtained. If not, some portion ol the lead-in is intermittent and the lead-in should be replaced.

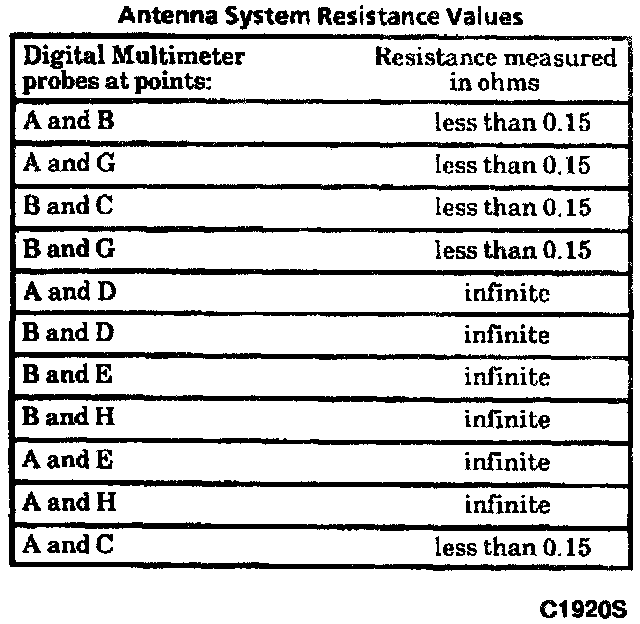

Antenna System Resistance Values

Antenna System Resistance Values:

Part 1 of 2

Antenna System Resistance Values:

Part 2 of 2
