Cluster View

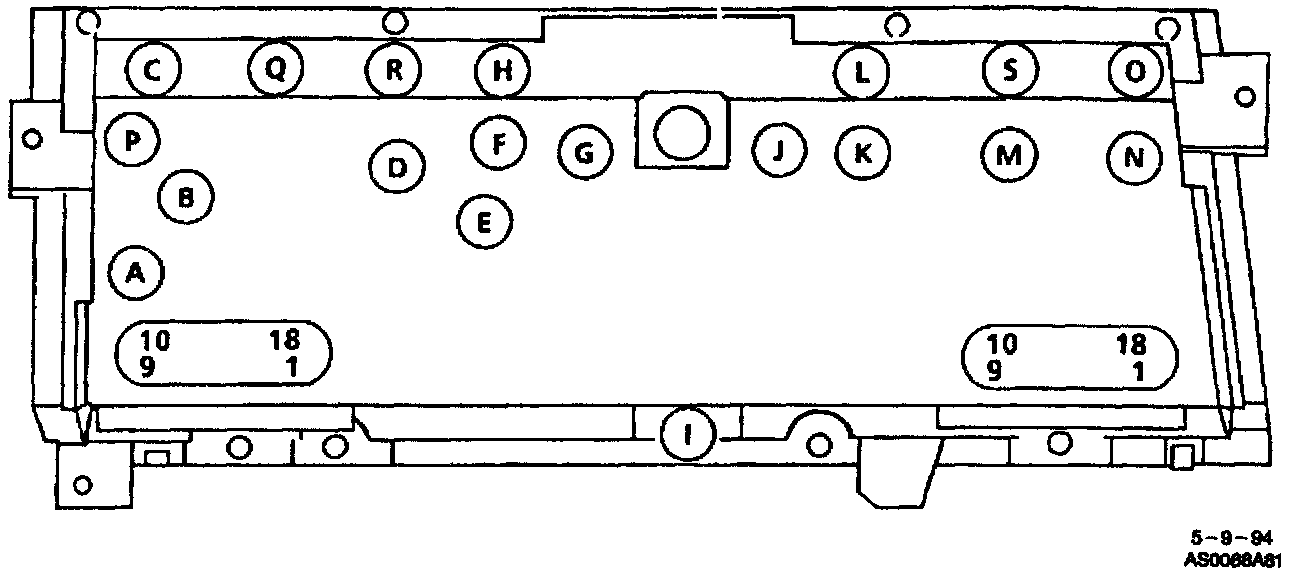

Cluster Rear View:

Connector C1
1 Ignition Input
2 RH Beam Indicator
3 RH Turn Indicator
4 Vehicle Speed Input
5 "BRAKE" Indicator
6 Ignition Input
7 Ground
8 Not Used
9 Ground
10 "FASTEN BELTS" Indicator
11 "ANTI-LOCK" Brake Indicator
12 "SERVICE ENGINE SOON" Indicator Lamp (MIL)
13 "CHARGE" Indicator
14 Not Used
15 "AIR BAG" Indicator
16 "OIL PRESSURE" Indicator
17 Fuel Gage Input
18 Ground

Connector C2
1 Not Used
2 Not Used
3 Illumination
4 Not Used
5 Not Used
7 LH Turn Indicator
8 Ground
9 "TAILGATE AJAR" Indicator (Wagon)
10 "LOW TRACTION" Indicator
11 Not Used
12 Engine Coolant "TEMP" Indicator
13 Engine Coolant Temperature Gage Input
14 Not Used
15 Ground
16 Ignition Input
17 Not Used
18 Not Used
