Home
>>
Oldsmobile
>>
1995
>>
Cutlass Ciera Cruiser V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>
Without Reclining Split Bench
Without Reclining Split Bench

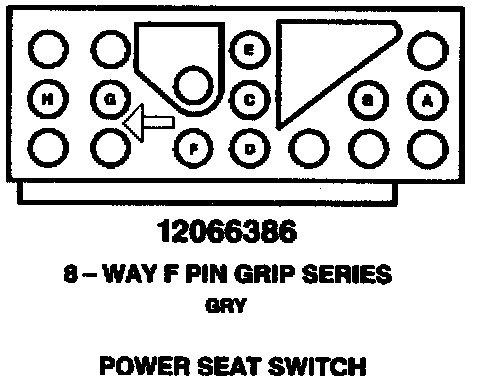

8-way F Pin Grip Series GRY (Power Seat Switch):
