Audible Warning Device

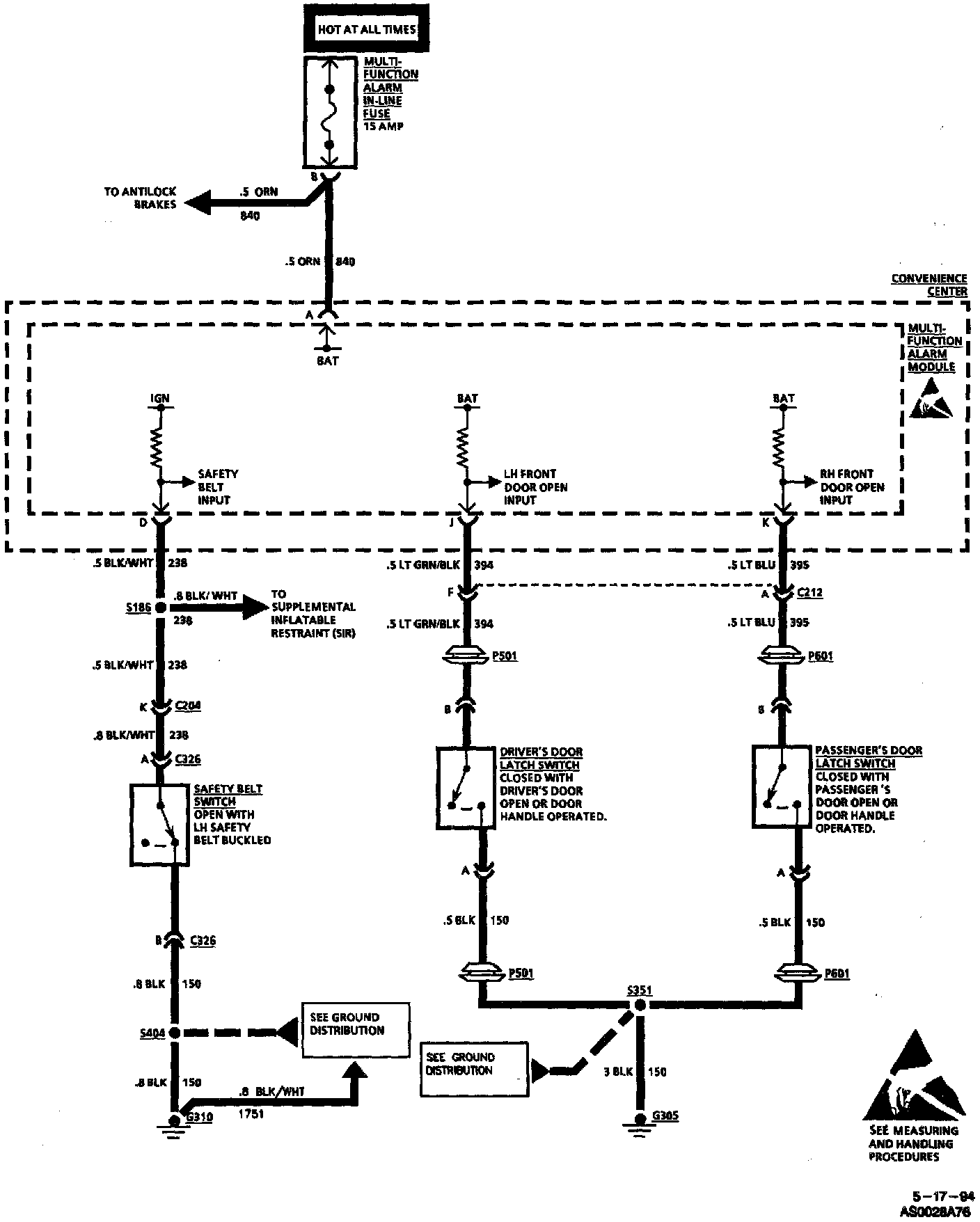

Audible Warnings (Part 1 Of 3):

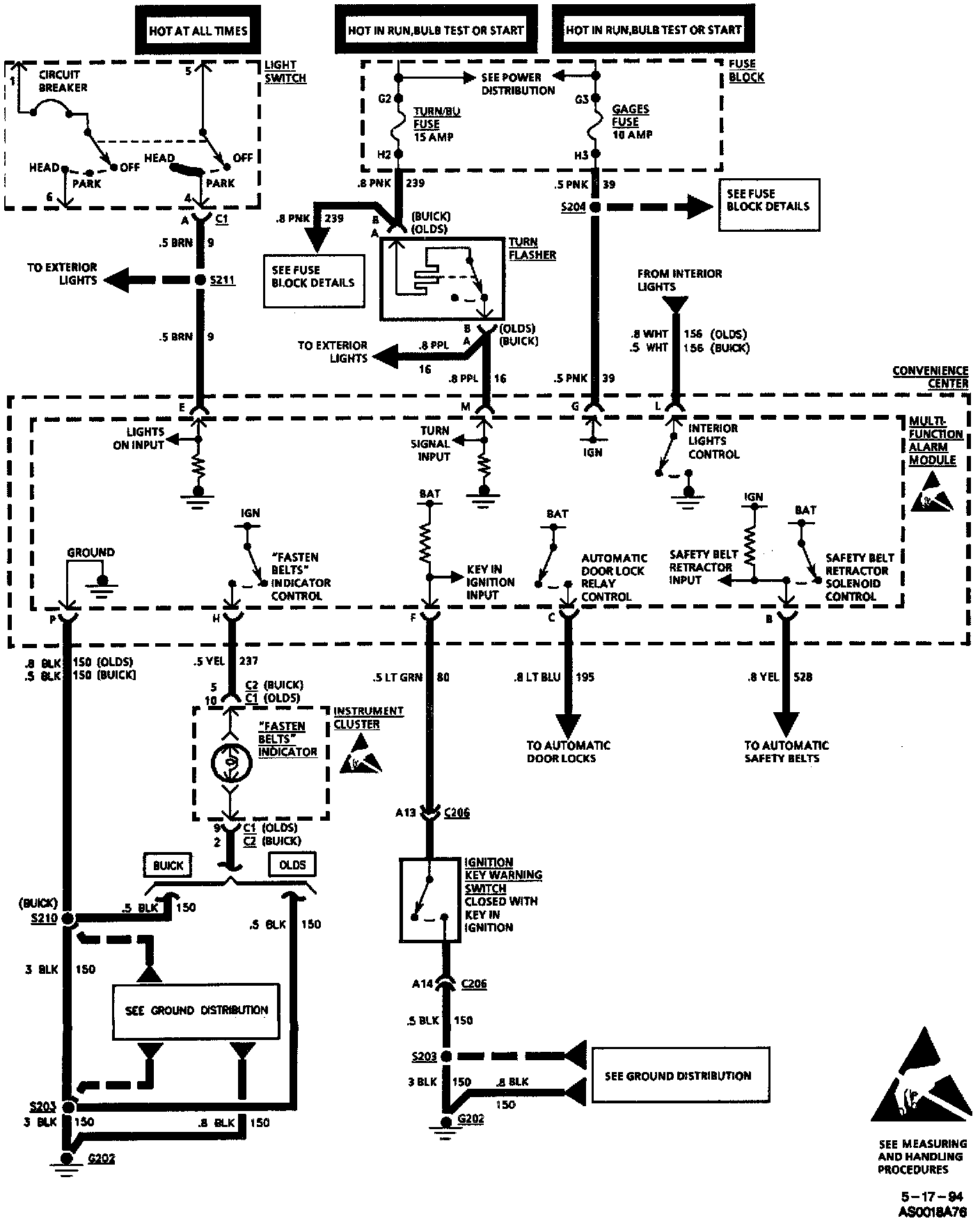

Audible Warnings (Part 2 Of 3):





Audible Warnings (Part 3 Of 3):
