Daytime Running Lamp Control Unit

8-Way F Metri-Pack 280 Series BLK (Daytime Running Lights) DRL Module:

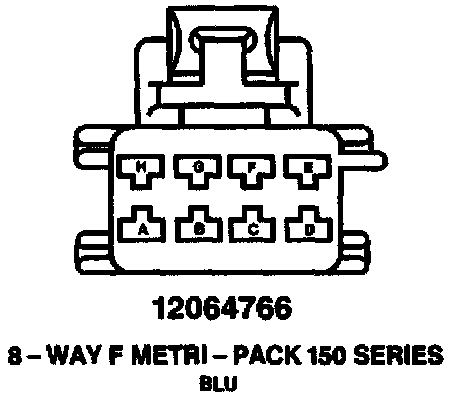

8-Way F Metri-Pack 150 Series BLU (Daytime Running Lights) DRL Module:

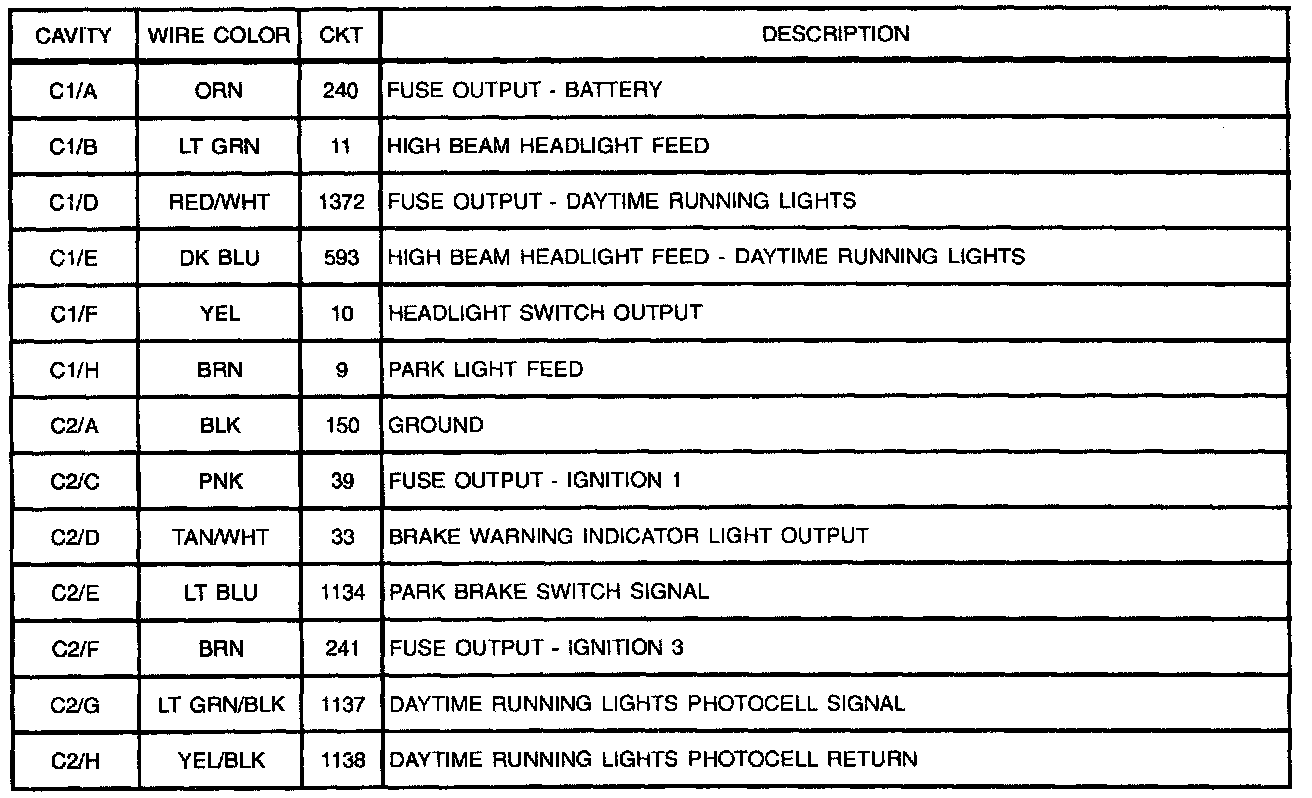

Daytime Running Light (DRL) Module:
