Antilock Brake System Wiring Circuit
Antilock Brake System Wiring Circuit

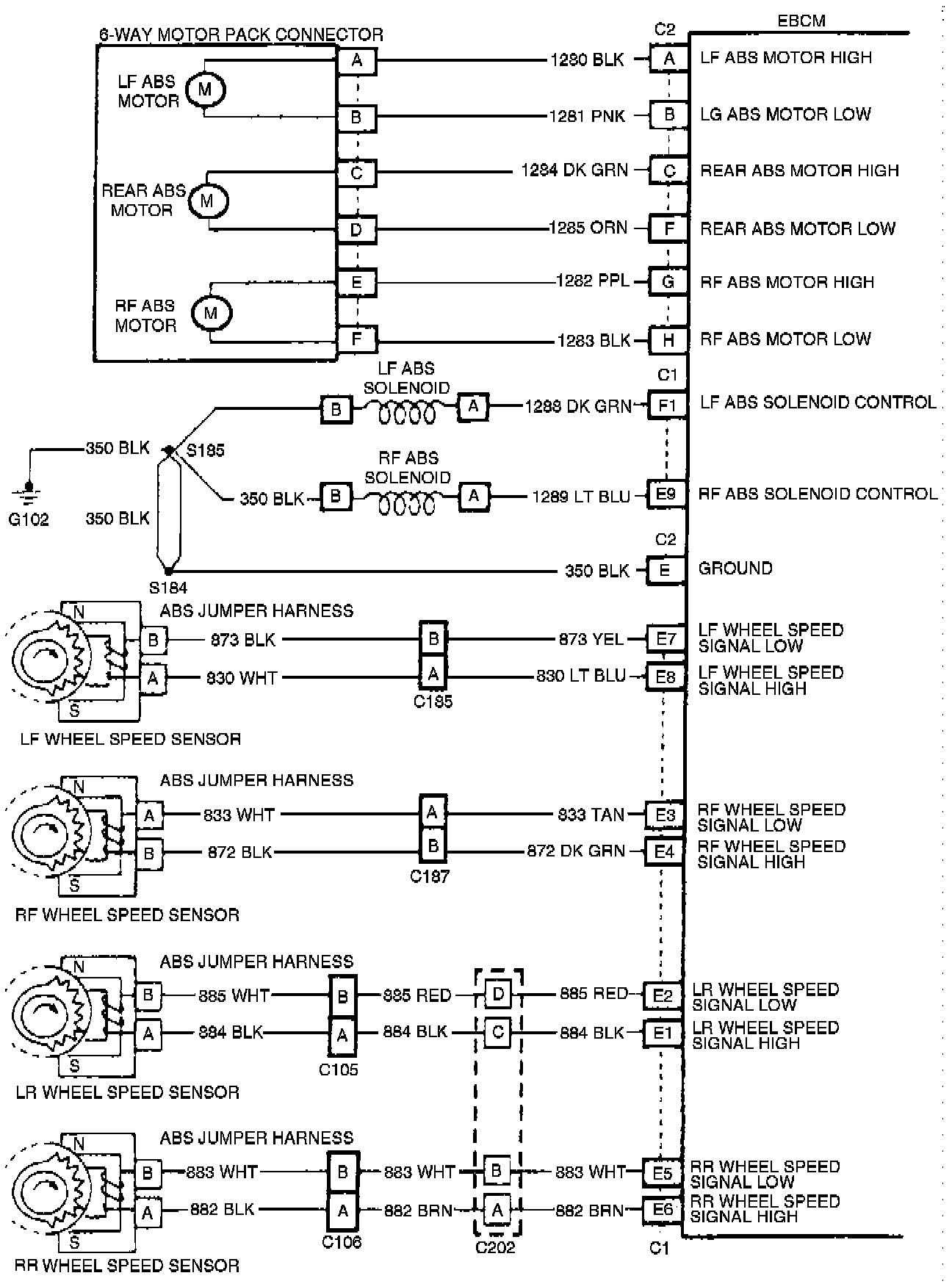

Fig. 12 ABS Wiring Circuit (Part 1 Of 2):
Fig. 12 ABS Wiring Circuit (Part 2 Of 2):
Refer to the
ABS
wiring circuits,
Fig. 12
, when performing diagnostic procedures.
