Home >> Oldsmobile >> 1995 >> Cutlass Ciera V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Parking Lamp

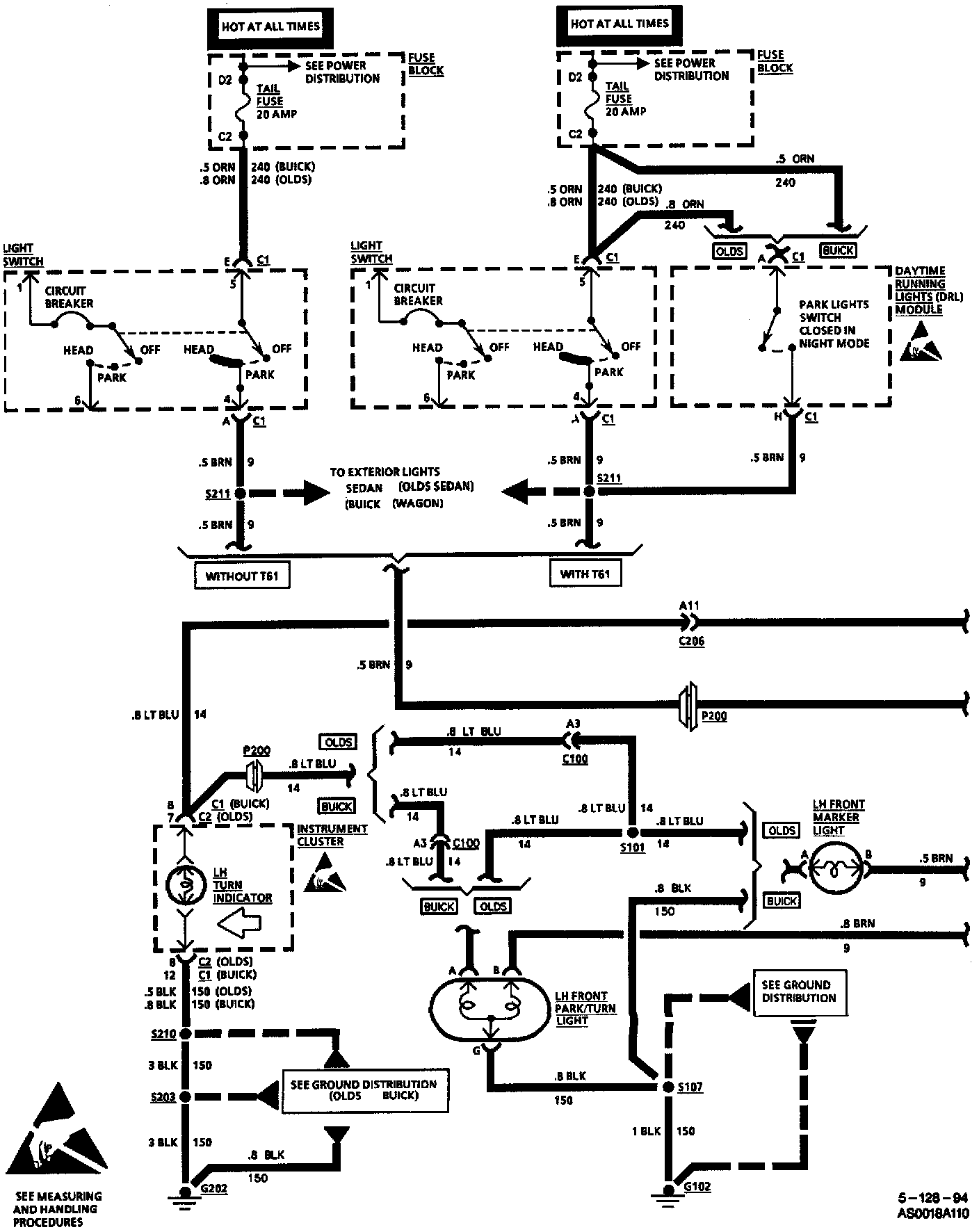

Parking Lamp

Turn/Hazard/Front Marker/Park:
