Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1995
>>
Cutlass Ciera V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Turn Signals
Turn Signals

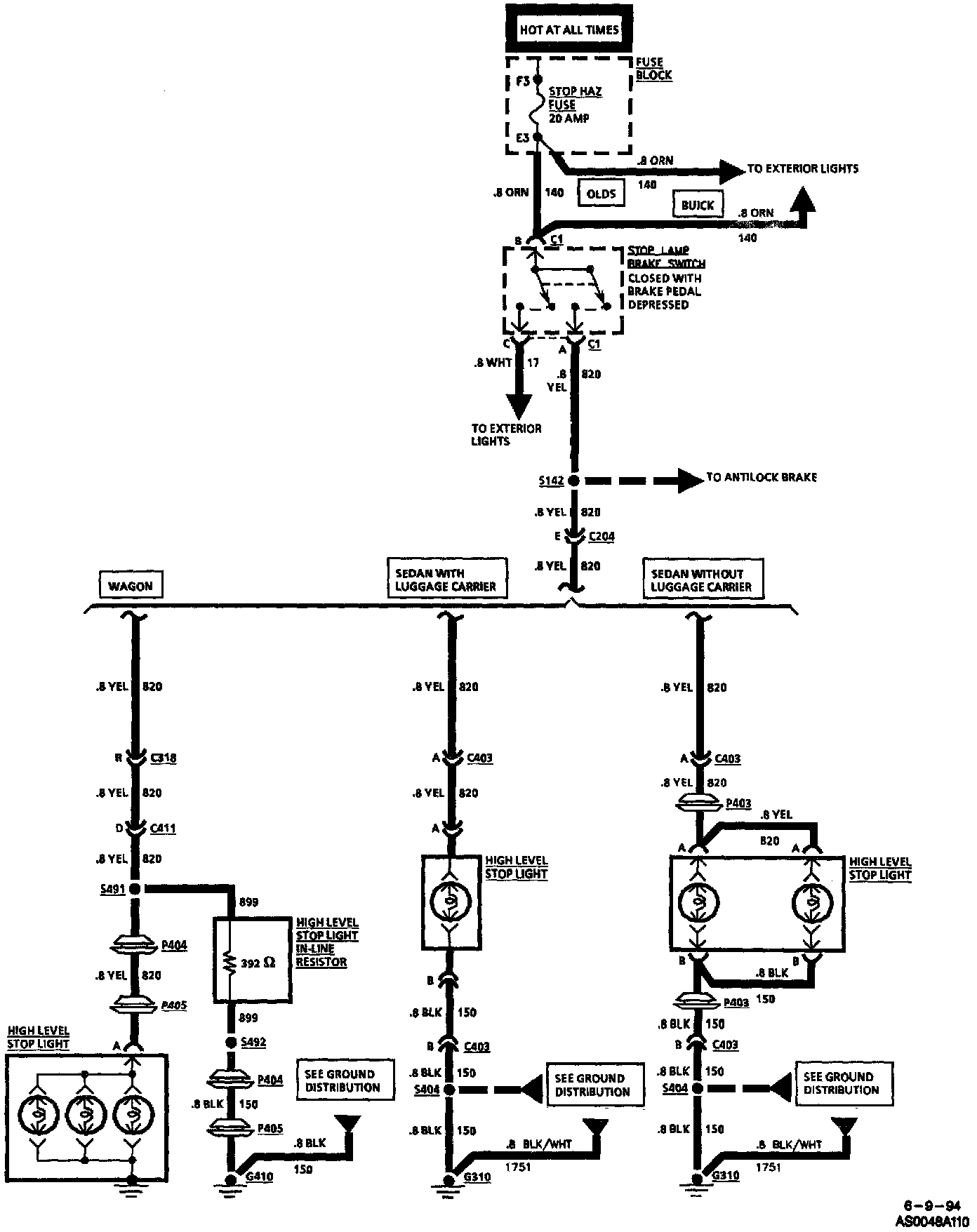

Tail/Stop/Turn (Part 1 Of 3):

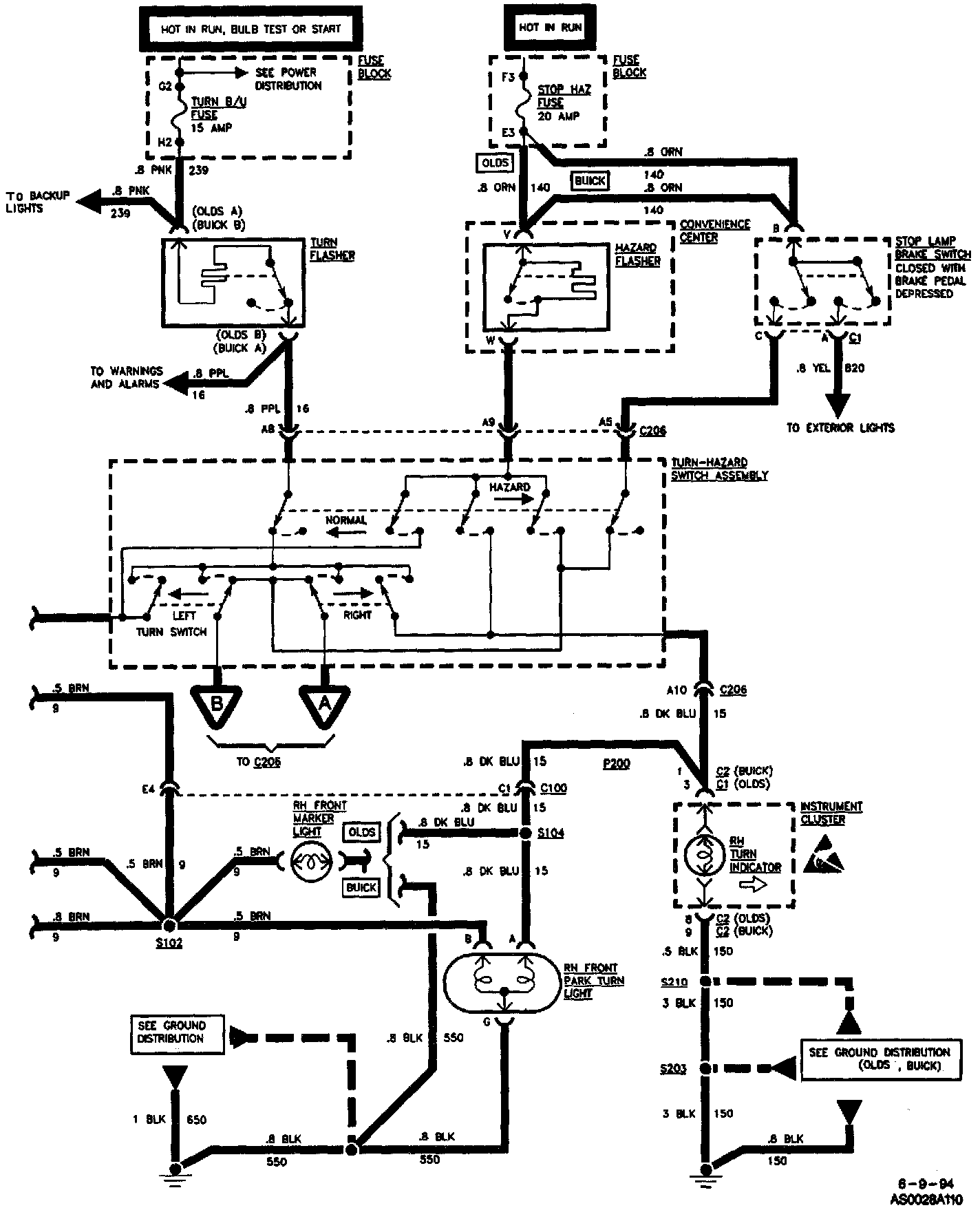

Tail/Stop/Turn (Part 2 Of 3):

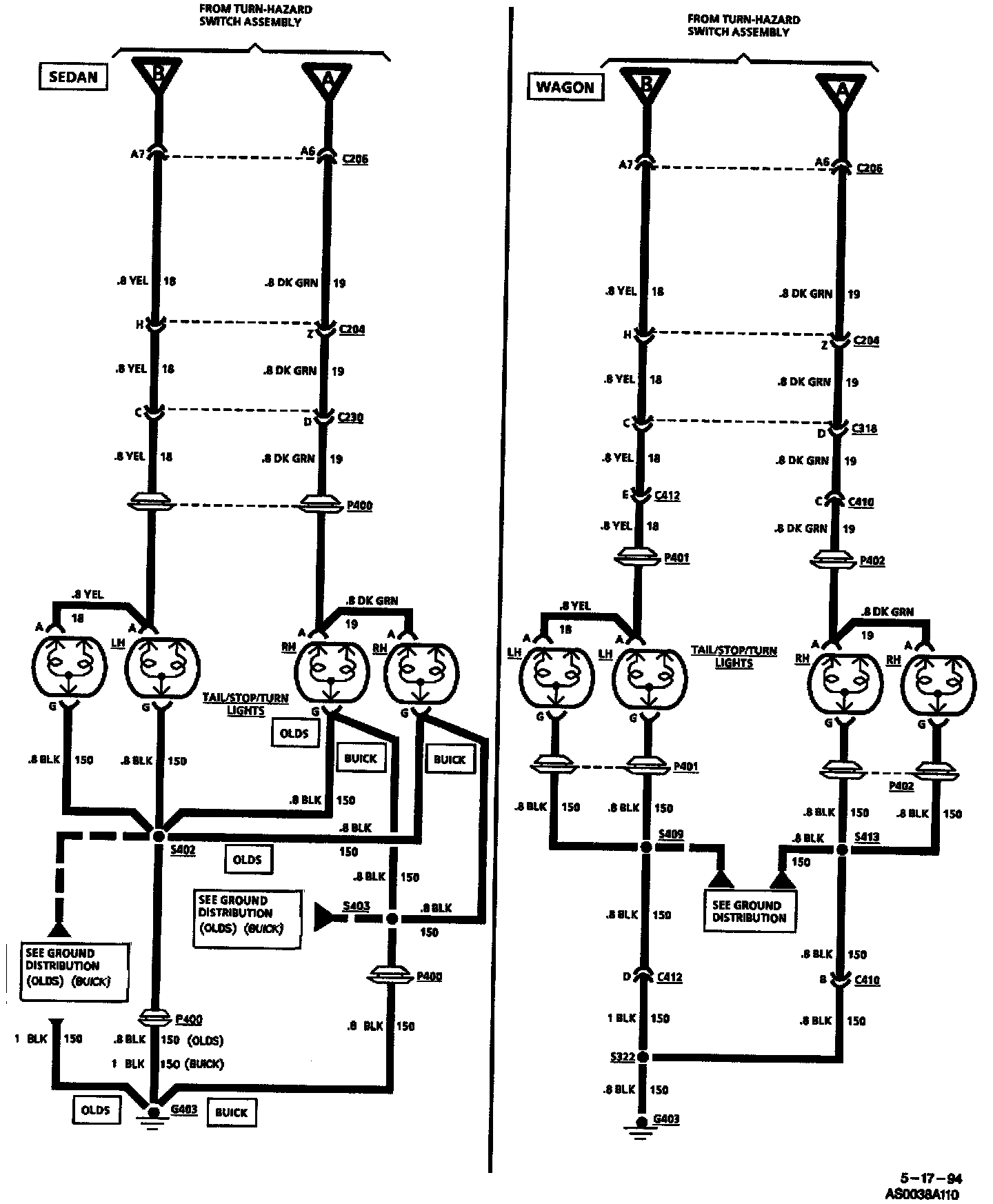

Tail/Stop/Turn (Part 3 Of 3):
