Chart 1 Sunroof Does Not Move When SW Is Pressed
Chart 1 Sunroof Does Not Move When SW Is Pressed

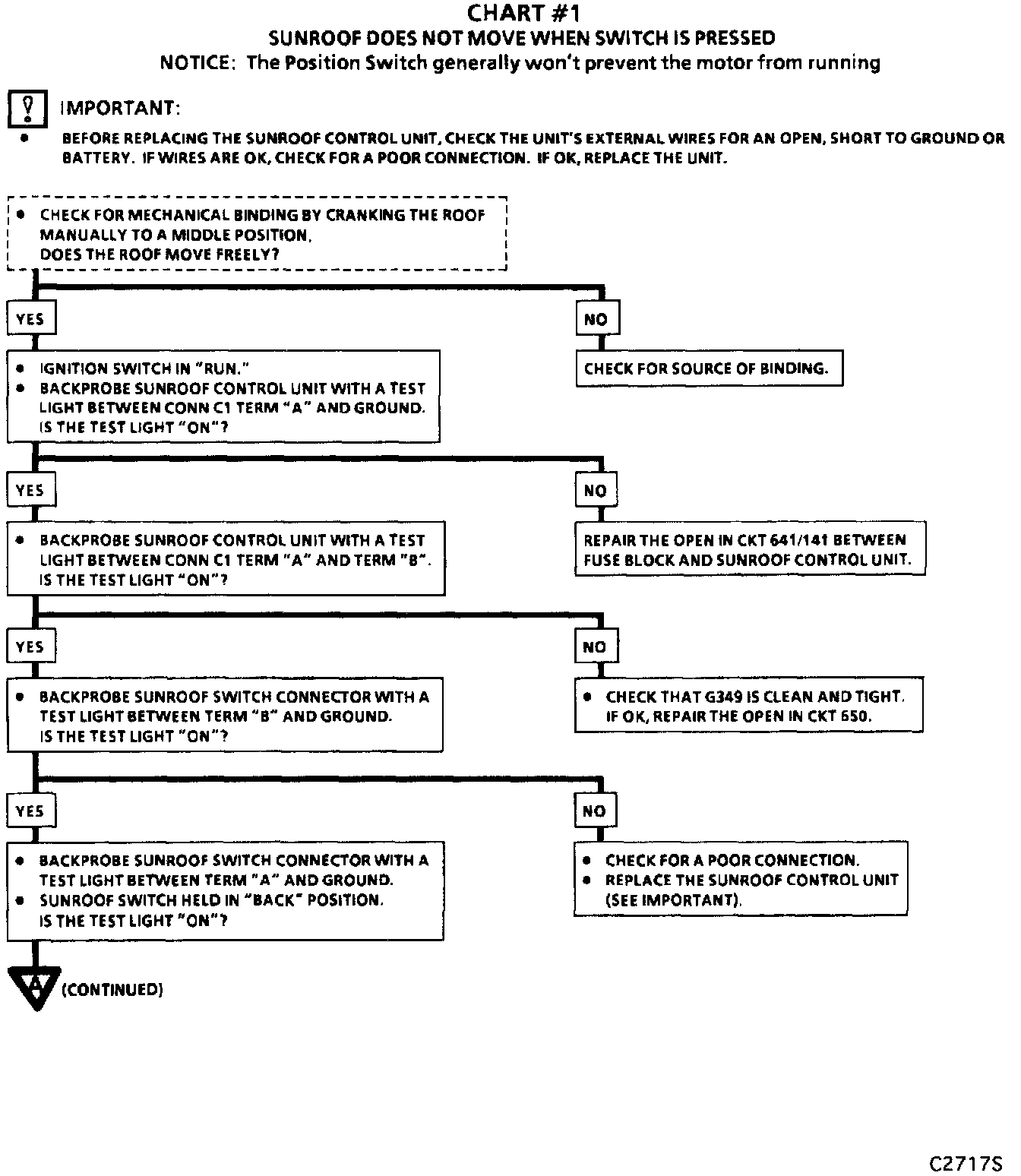

Chart #1 Sunroof Does Not Move When Switch Is Pressed (Part 1 Of 2):

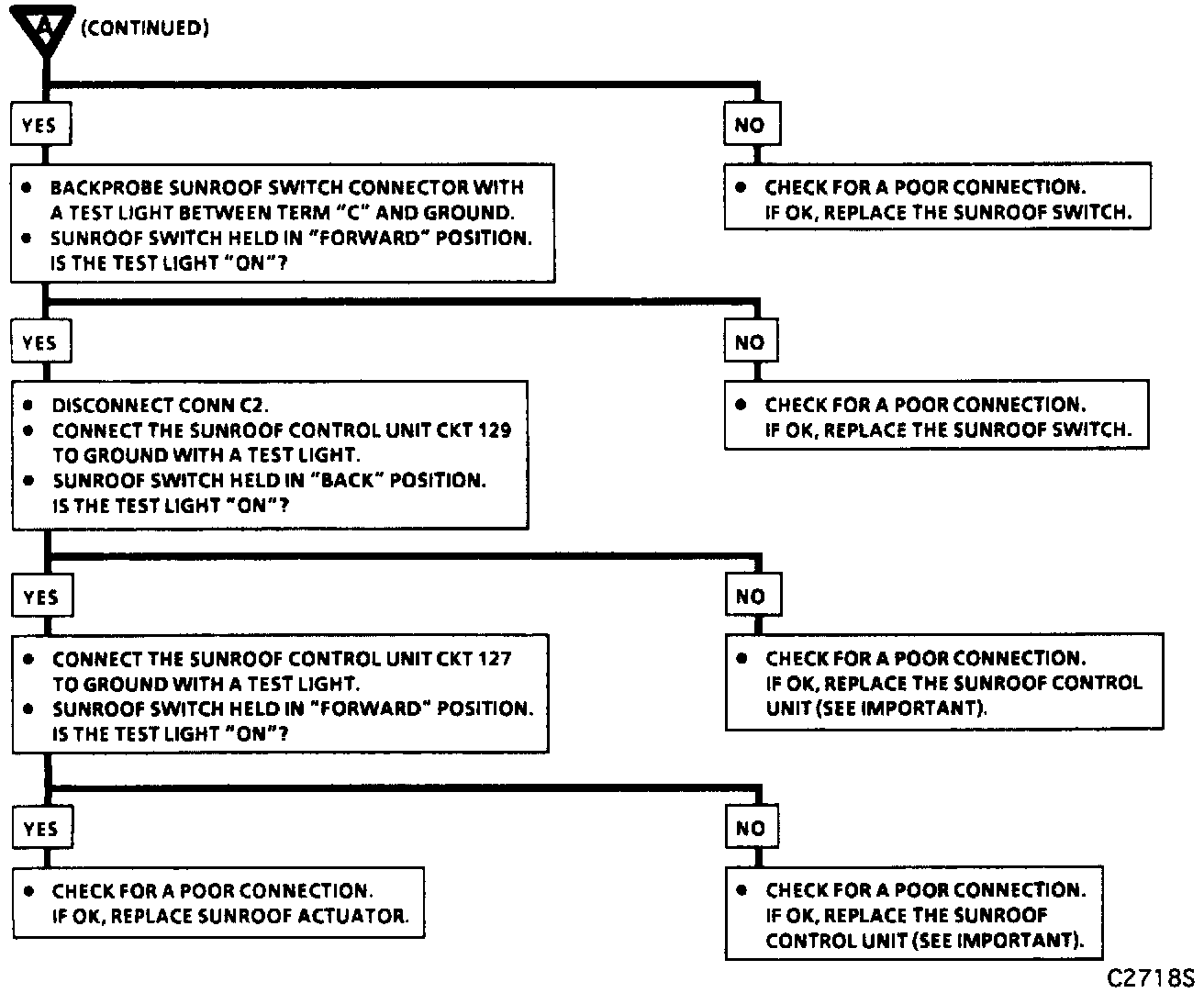

Chart #1 Sunroof Does Not Move When Switch Is Pressed (Part 2 Of 2):
