Air Delivery (C60/C67/CJ3)

HVAC: Air Delivery And Temperature Control (C67) (Part 1 Of 2):

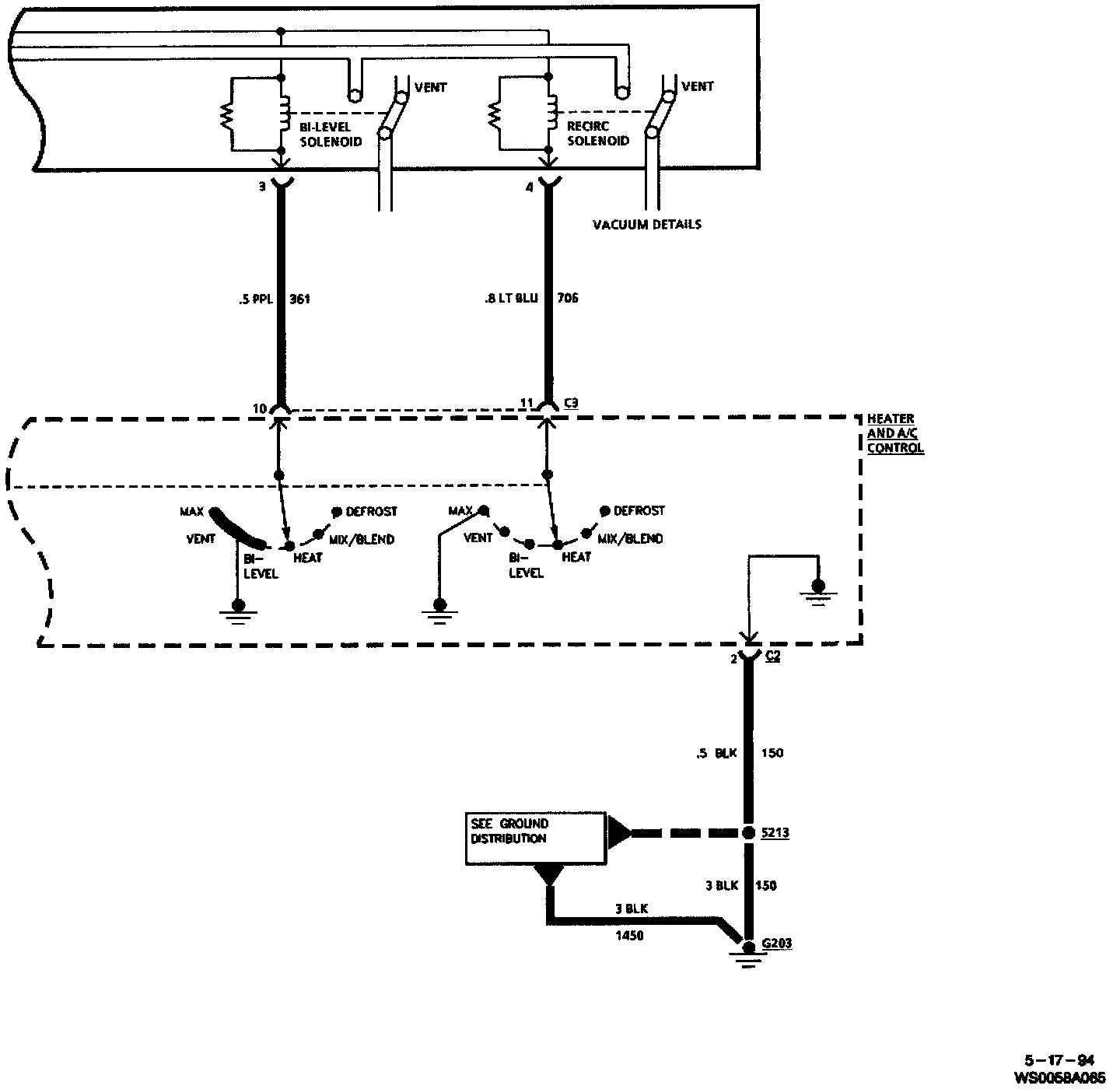

HVAC: Air Delivery And Temperature Control (C67) (Part 2 Of 2):
