Temperature Controls (C60/C67/CJ3)

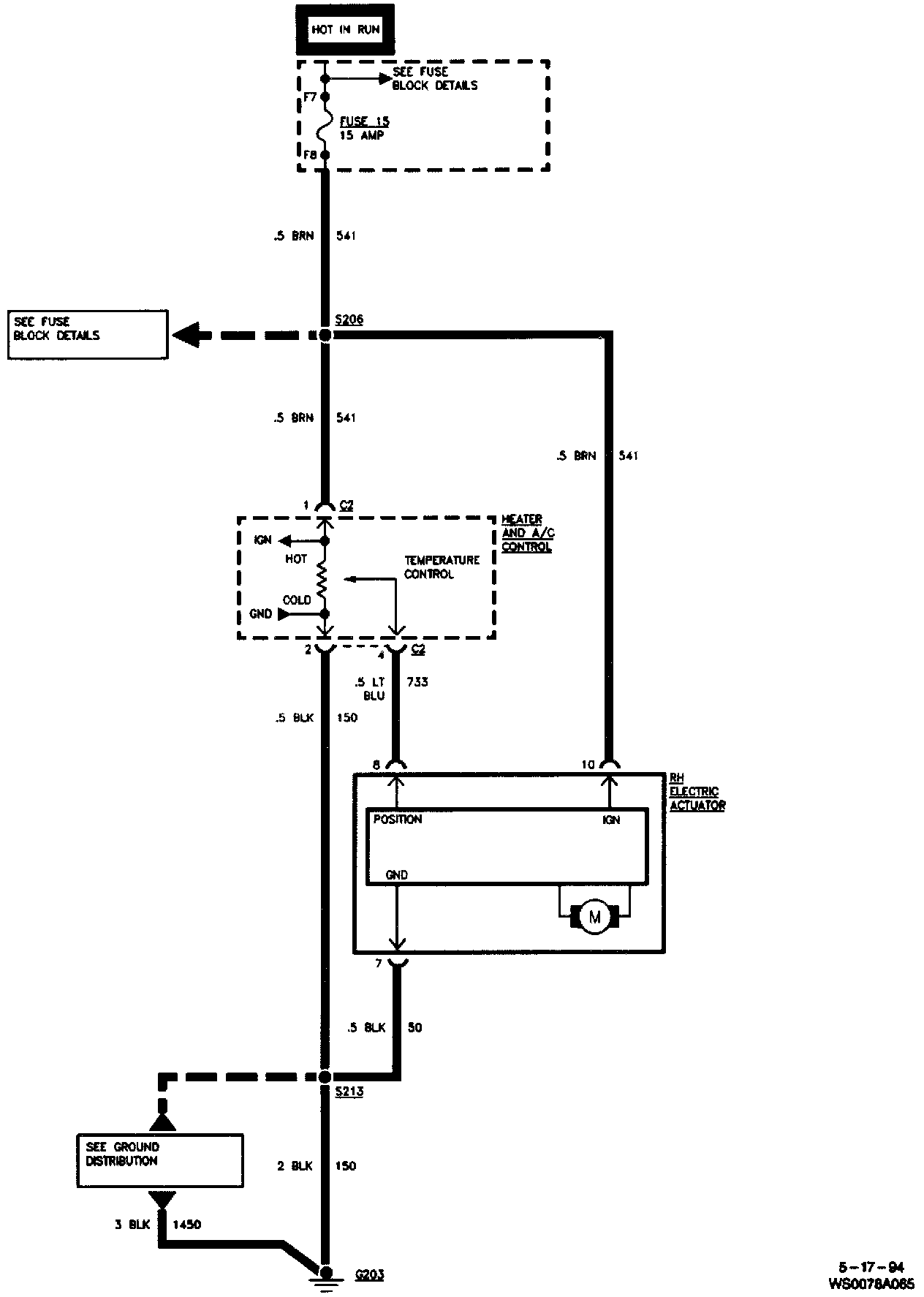

Temperature Controls (C60/C67):



Air Delivery & Temperature Control (C67):
