DTC 34

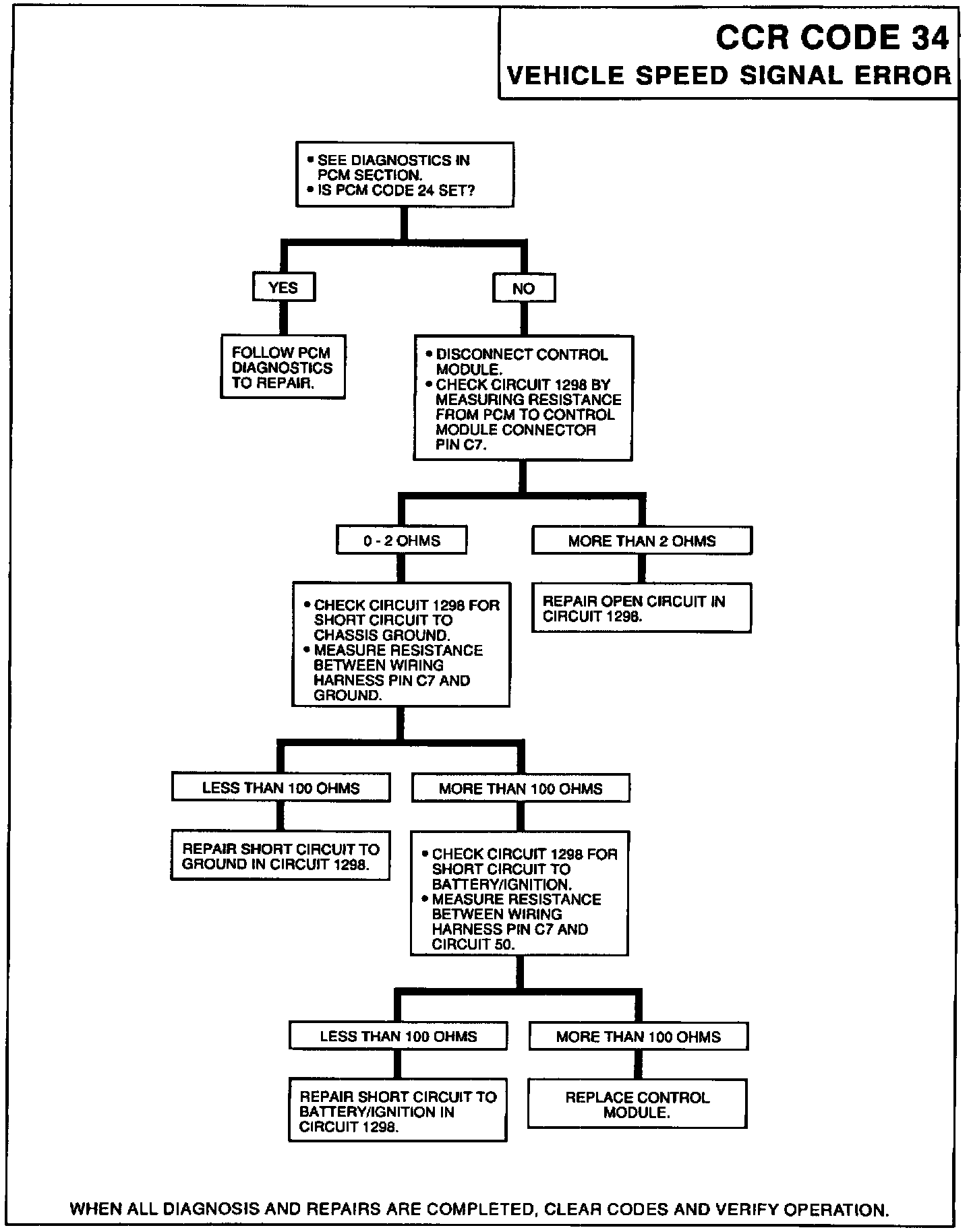

Diagnostic Chart:

Wiring Diagram:

TEST CONDITIONS

Check for vehicle speed signal during periods when vehicle movement is suspected.

FAULT CONDITIONS

If vehicle speed signal is not detected for 20 seconds, followed by 5 or more transitions in lateral accelerator switch input, set code.

ACTION TAKEN

Record vehicle speed signal error,
Turn on both driver select switch L.E.D.'s,
System will continue to default to zero speed damping level (Sport mode).

DESCRIPTION

A vehicle speed signal error occurs when the Control Module detects 5 or more transitions in the lateral accelerator switch input after 20 or more seconds without a vehicle speed input. If a fault is detected, the system will set error code 34 and activate the error lamp.

NOTES ON INTERMITTENTS

Refer to Lateral Accelerator Switch Error (Code 32), Suspension Control - Computer Command Ride (CCR) and to Computers and Control Systems for diagnostic information. Testing and Inspection

Also refer to Notes on Intermittents. Notes on Intermittents
