Home >> Oldsmobile >> 1995 >> Ninety-Eight V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Brake Warning Indicator >> Indicators Cluster

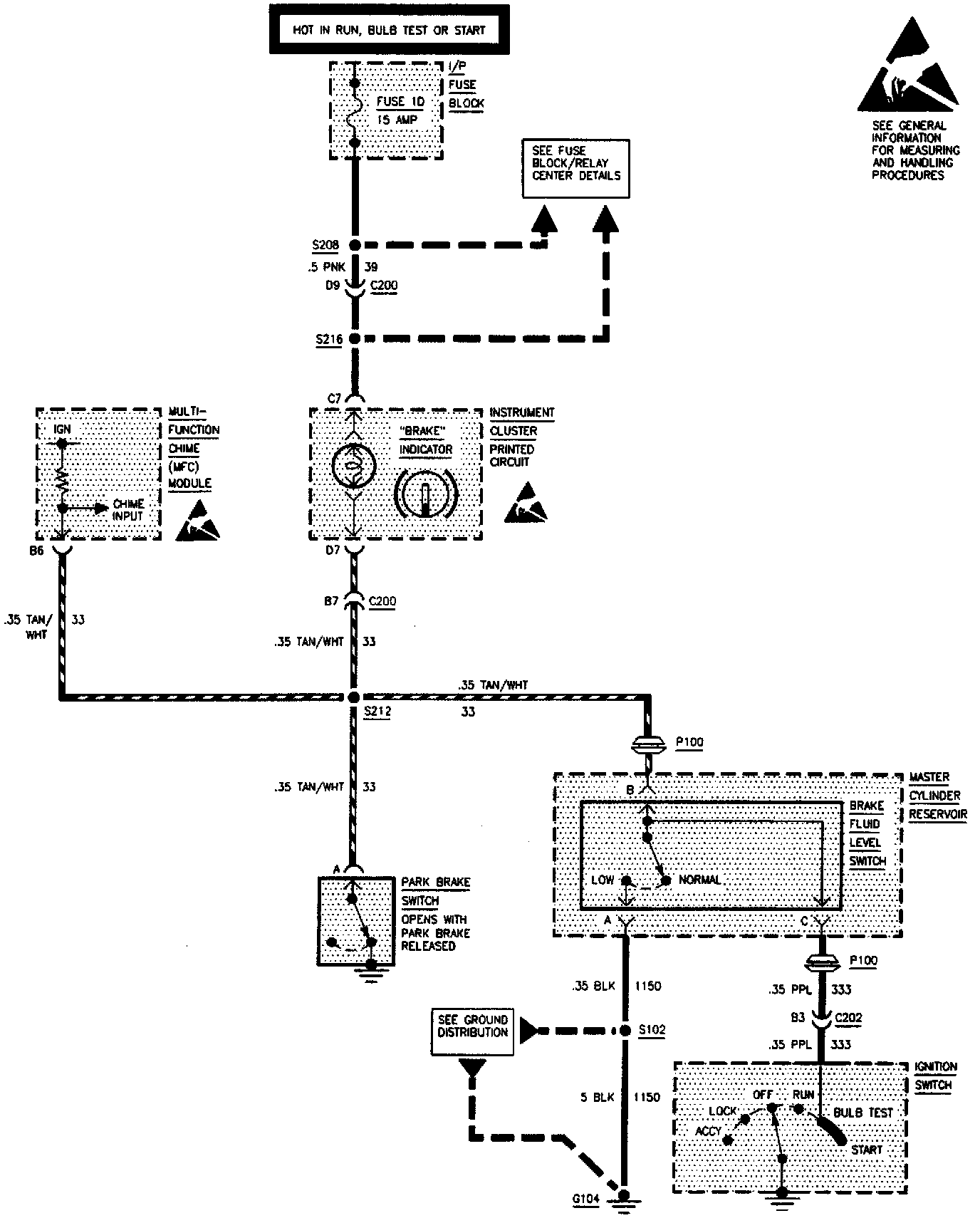

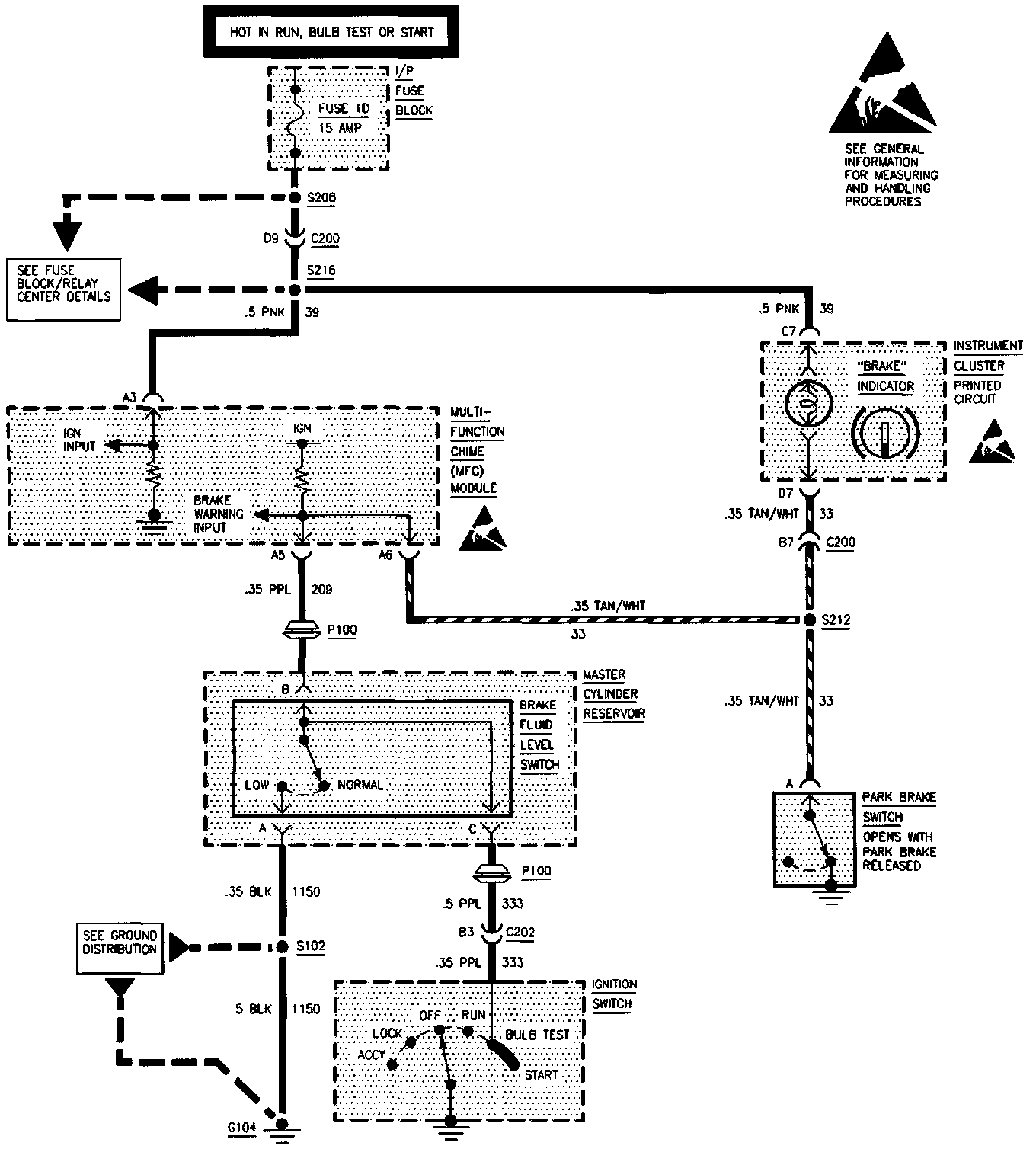

Indicators Cluster

Indicators Cluster:



Indicators Cluster:
