Daytime Running Lamp

Twilight Sentinel/Daytime Running Lamps:




Twilight Sentinel/Daytime Running Lamps (Part 1 Of 3):

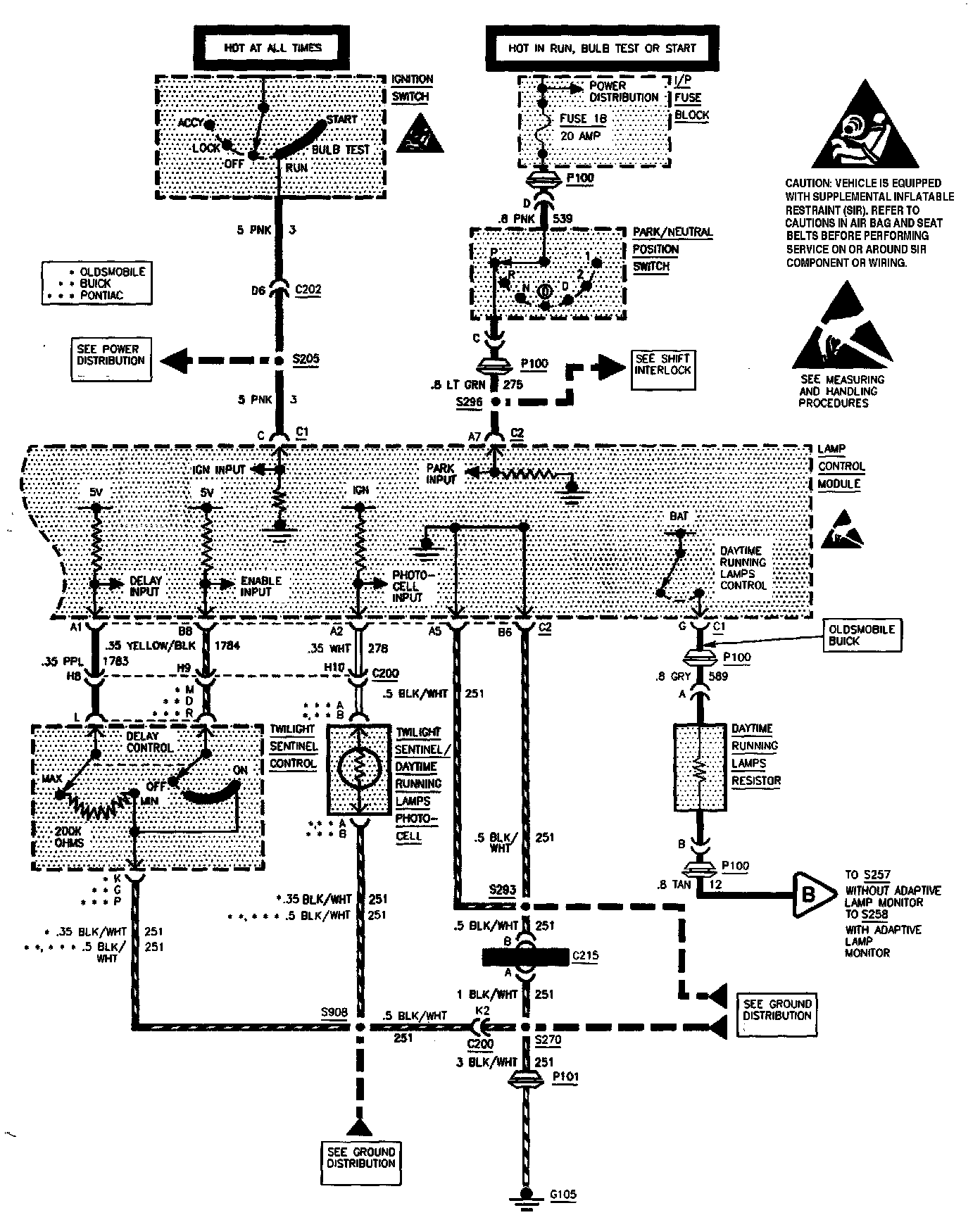

Twilight Sentinel/Daytime Running Lamps (Part 2 Of 3):

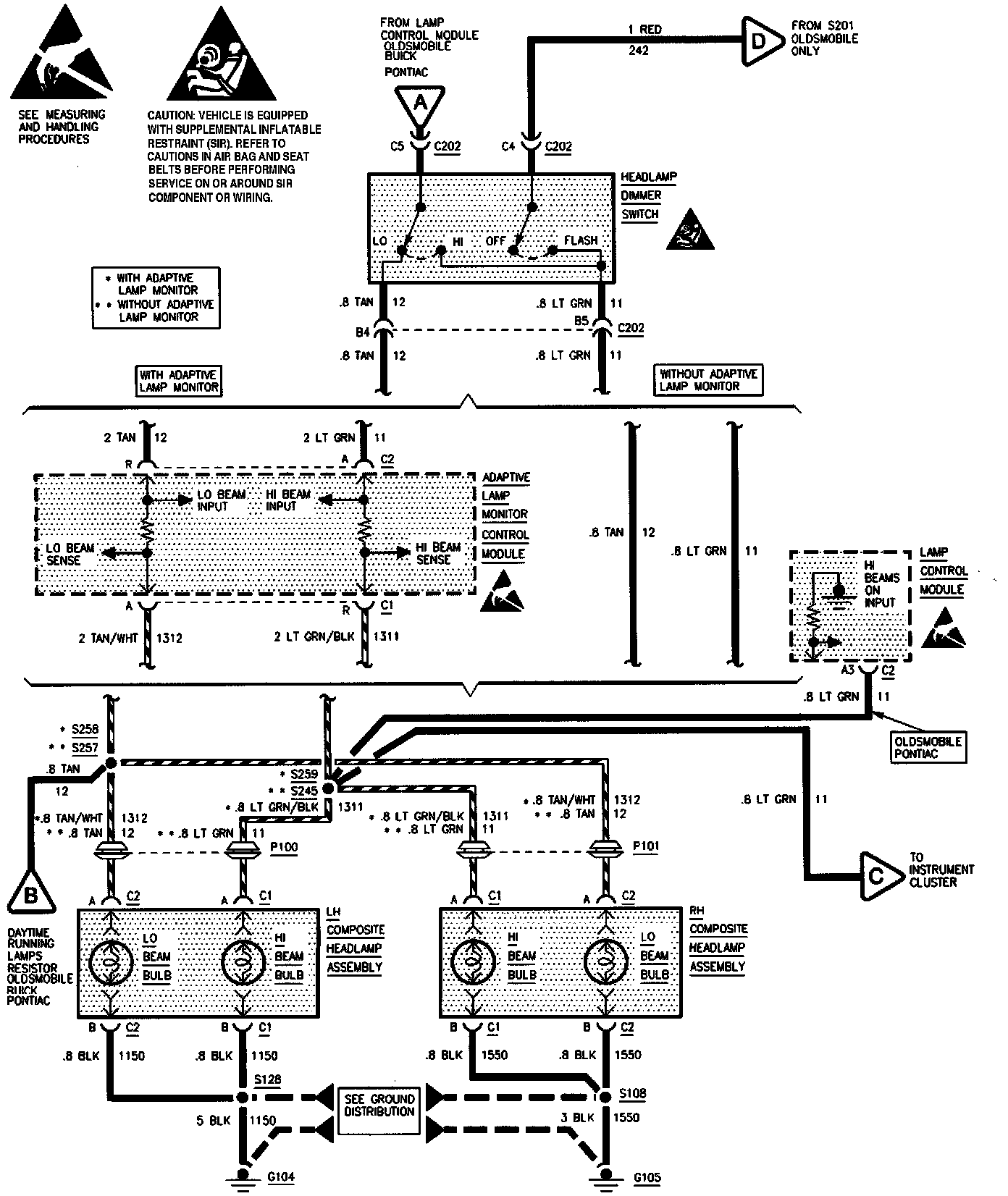

Twilight Sentinel/Daytime Running Lamps (Part 3 Of 3):
