Oldsmobile
>>
1995
>>
Ninety-Eight V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Interior Lamps
>>

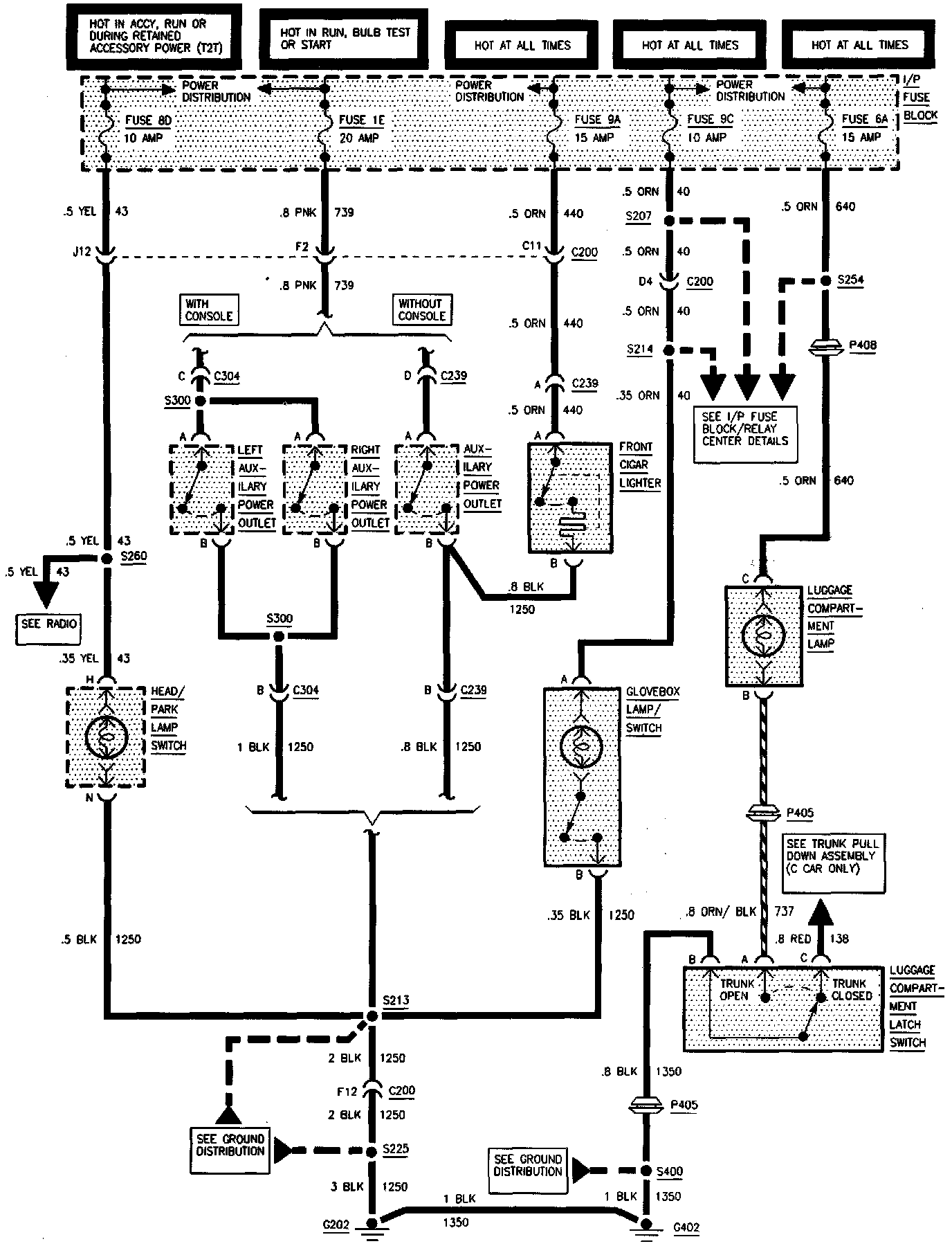

Head/Park Lamp SW/Auxiliary Power Outlet/Front Cigar Lighter
Head/Park Lamp SW/Auxiliary Power Outlet/Front Cigar Lighter
Head/Park Lamp SW/Auxiliary Power Outlet/Front Cigar Lighter:
