Gauges Cluster

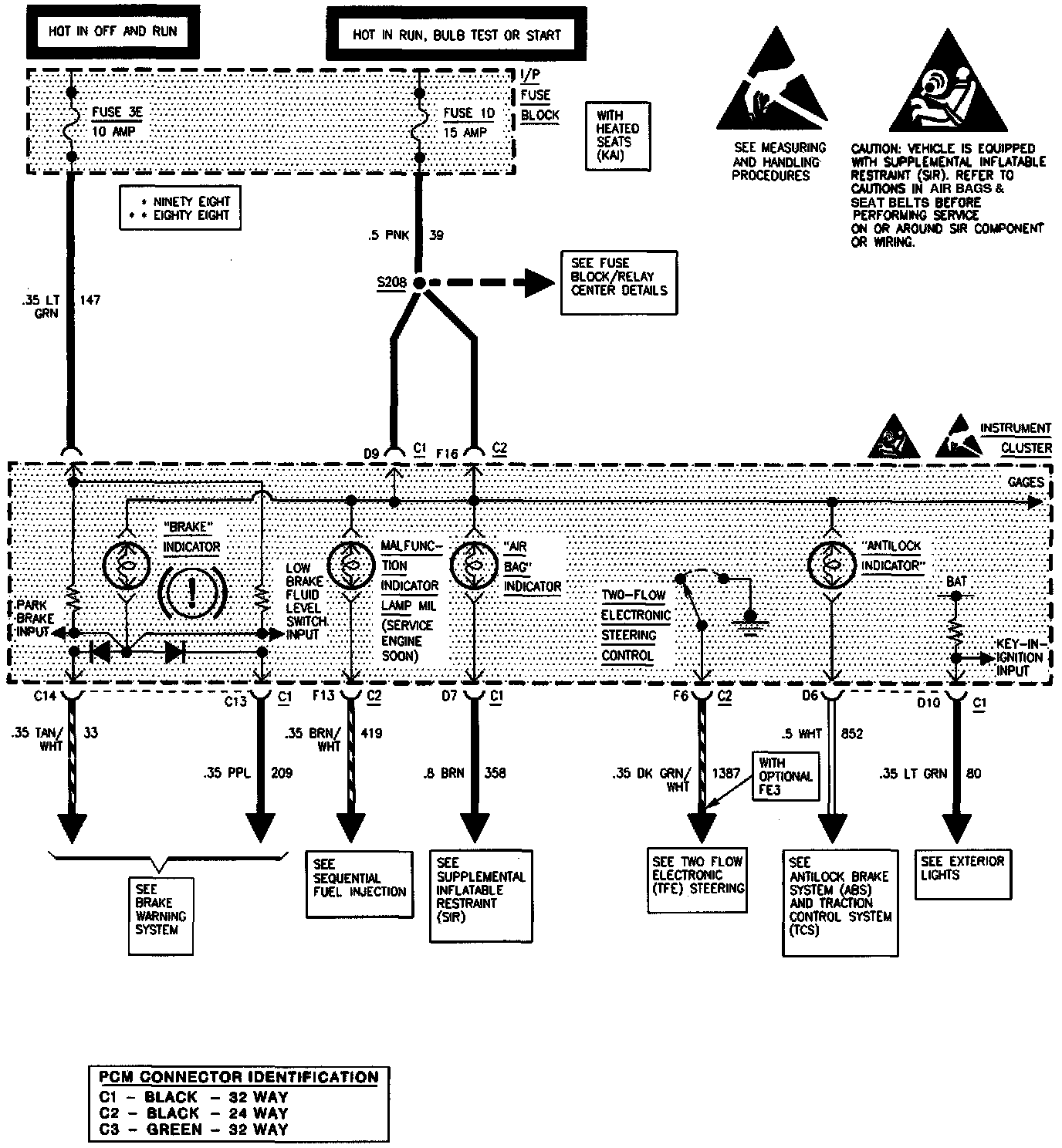

Gages Cluster (Part 1 Of 7):

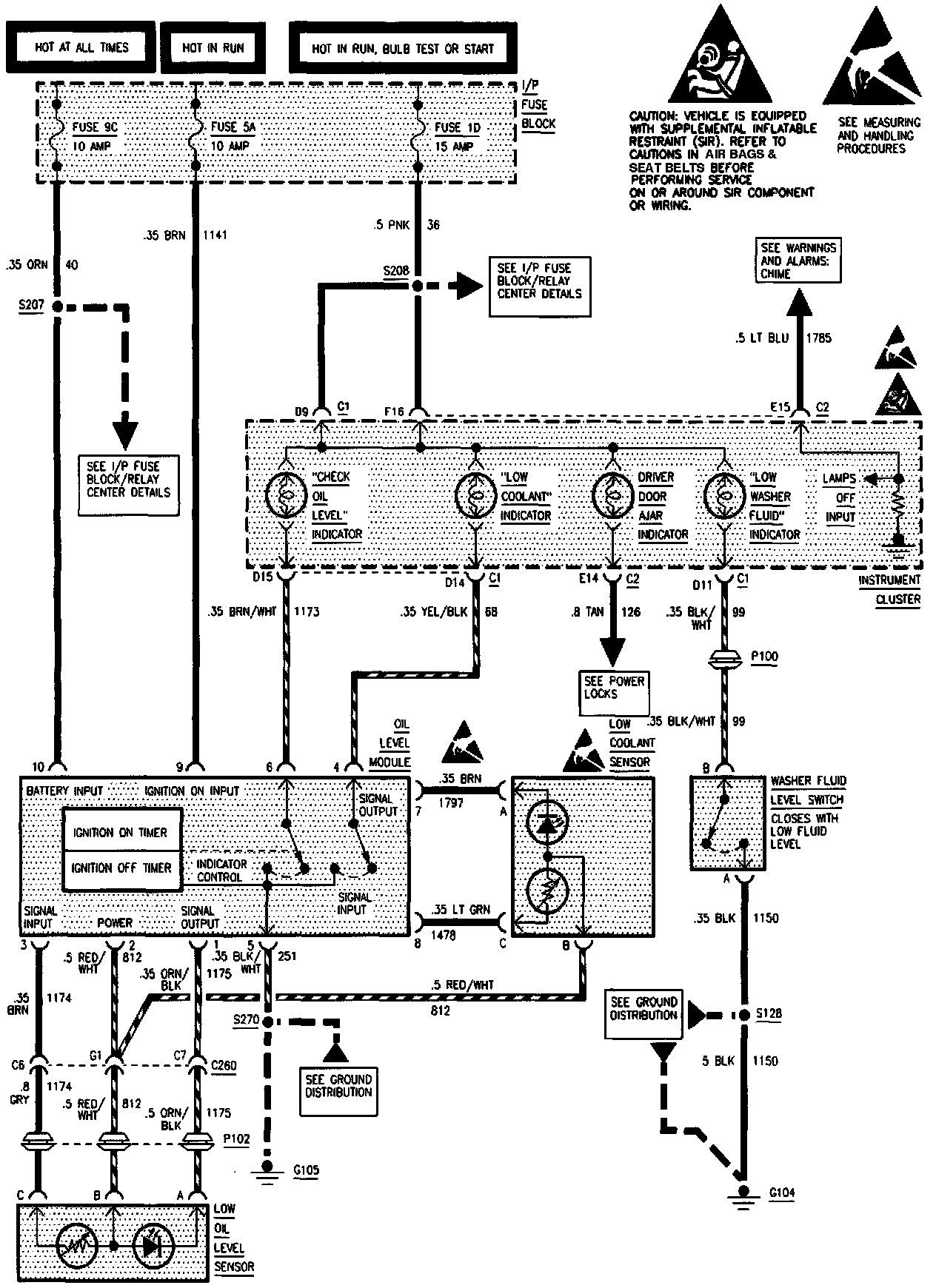

Gages Cluster (Part 2 Of 7):

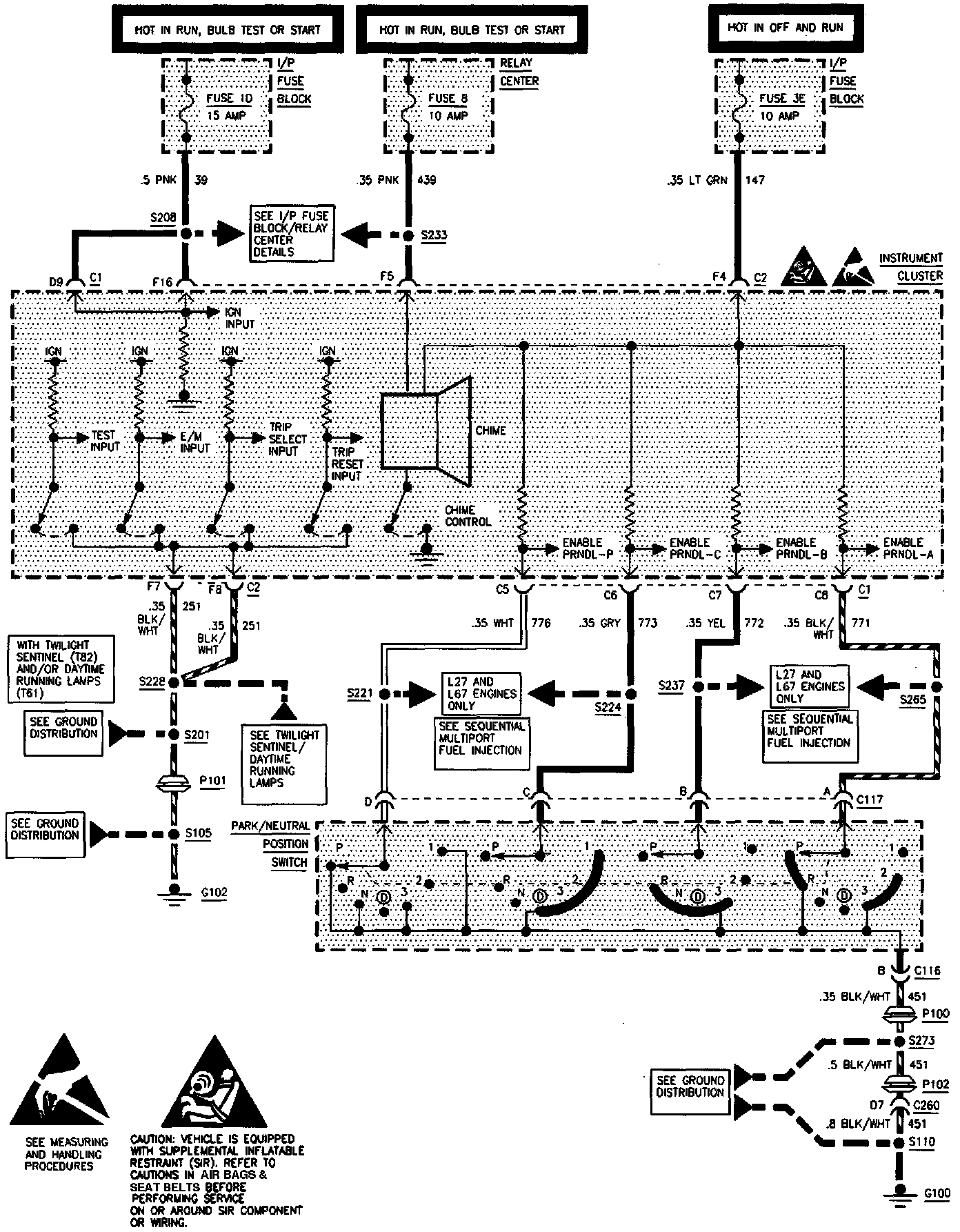

Gages Cluster (Part 3 Of 7):

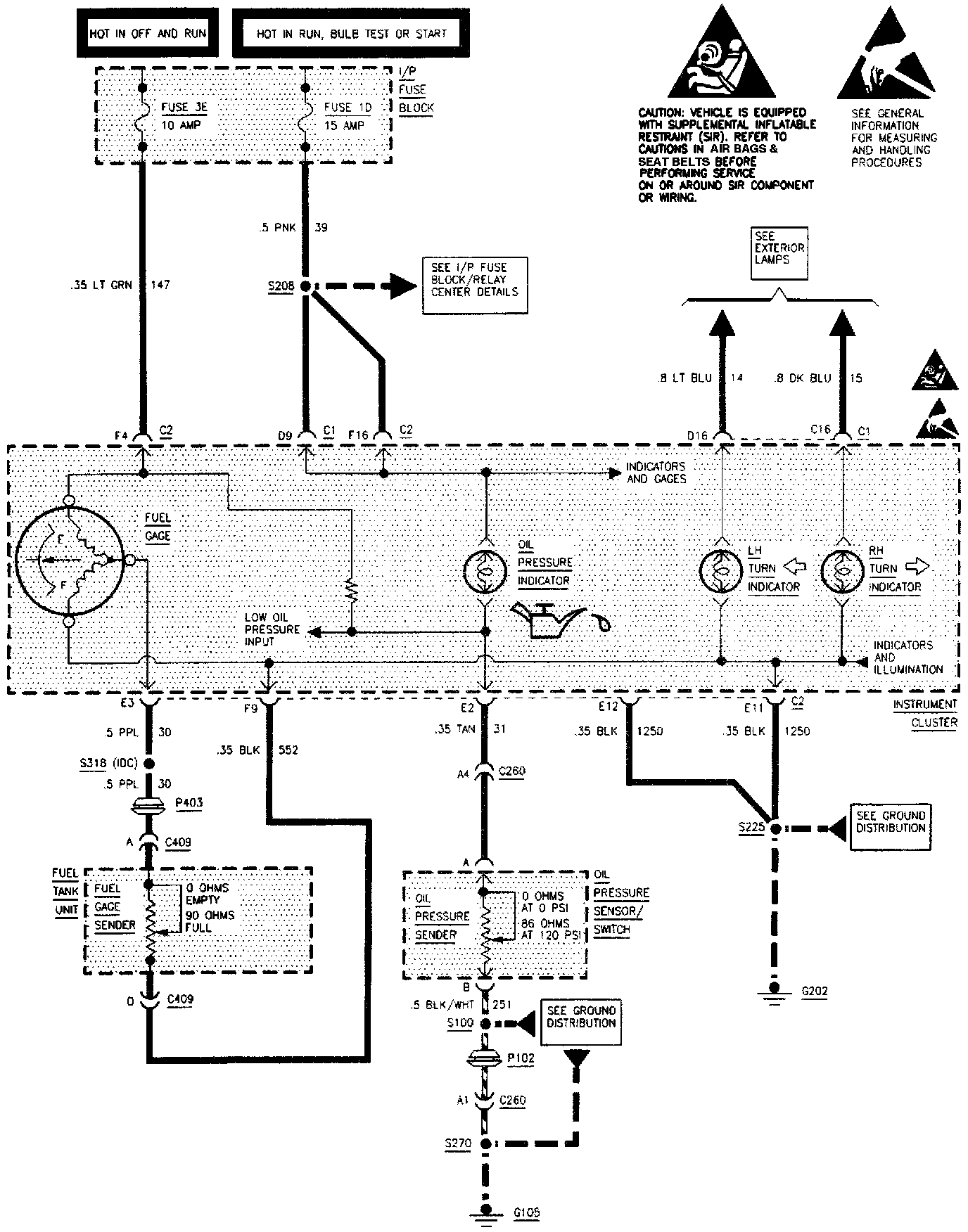

Gages Cluster (Part 4 Of 7):

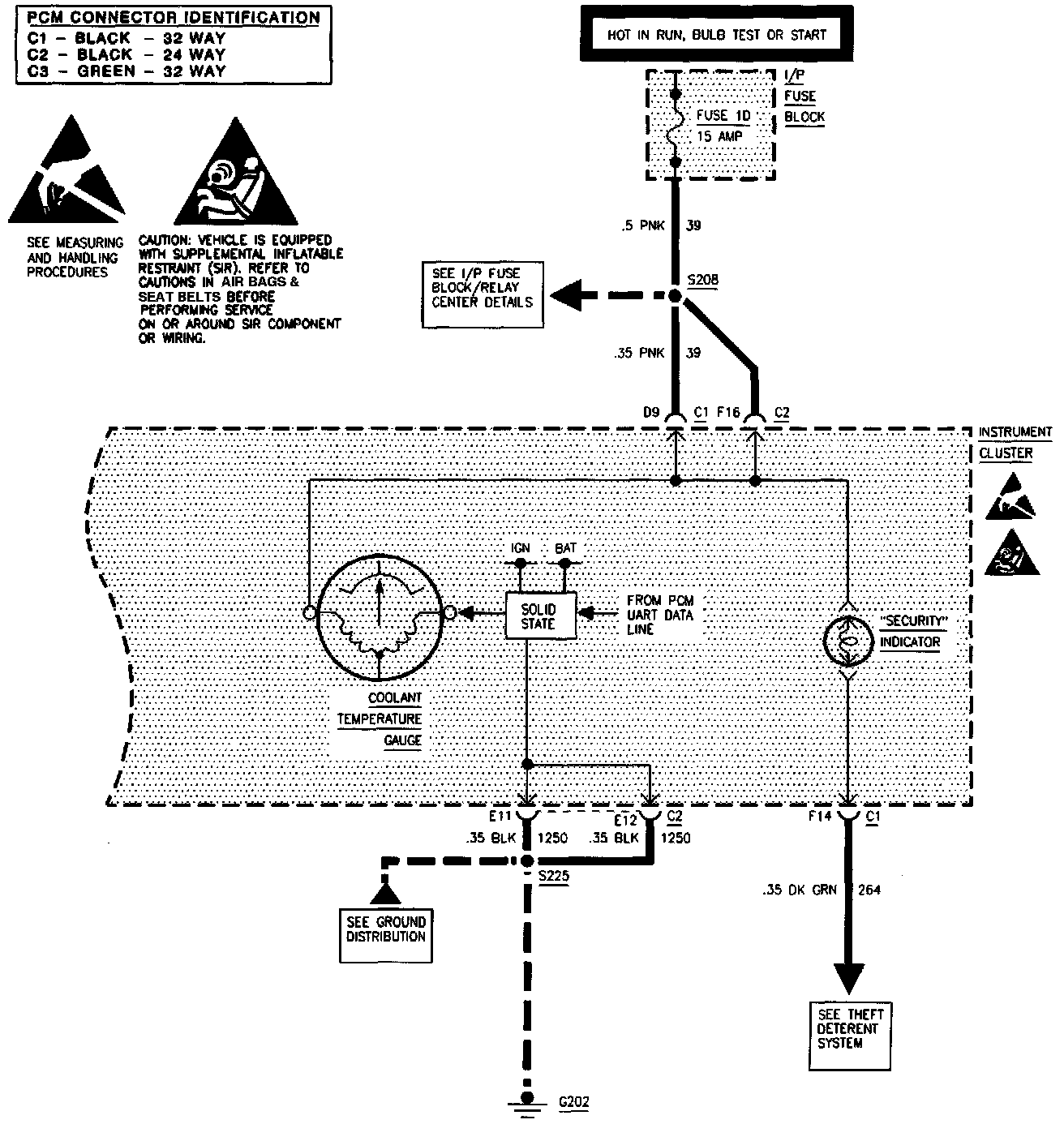

Gages Cluster (Part 5 Of 7):




Gages Cluster (Part 6 Of 7):




Gages Cluster (Part 7 Of 7):
