Fuel Control & Idle Air Control
Fuel Control & Idle Air Control
Fuel Control And Idle Air Control (Part 1 Of 2):

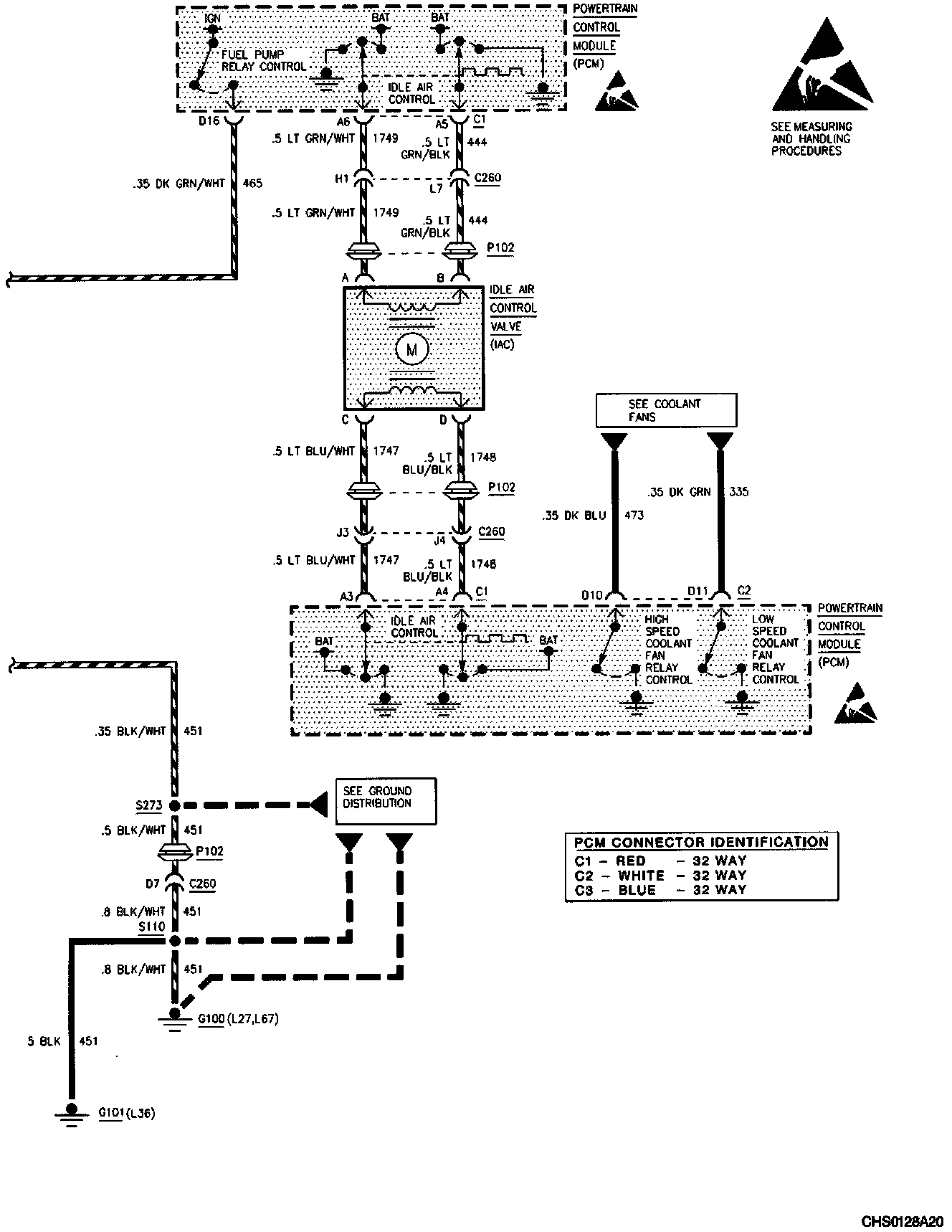

Fuel Control And Idle Air Control (Part 2 Of 2):
