Home >> Oldsmobile >> 1995 >> Ninety-Eight V6-3.8L VIN K >> Repair and Diagnosis >> Windows and Glass >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Diagrams

Power Window Switch: Diagrams

Power Window Switch:

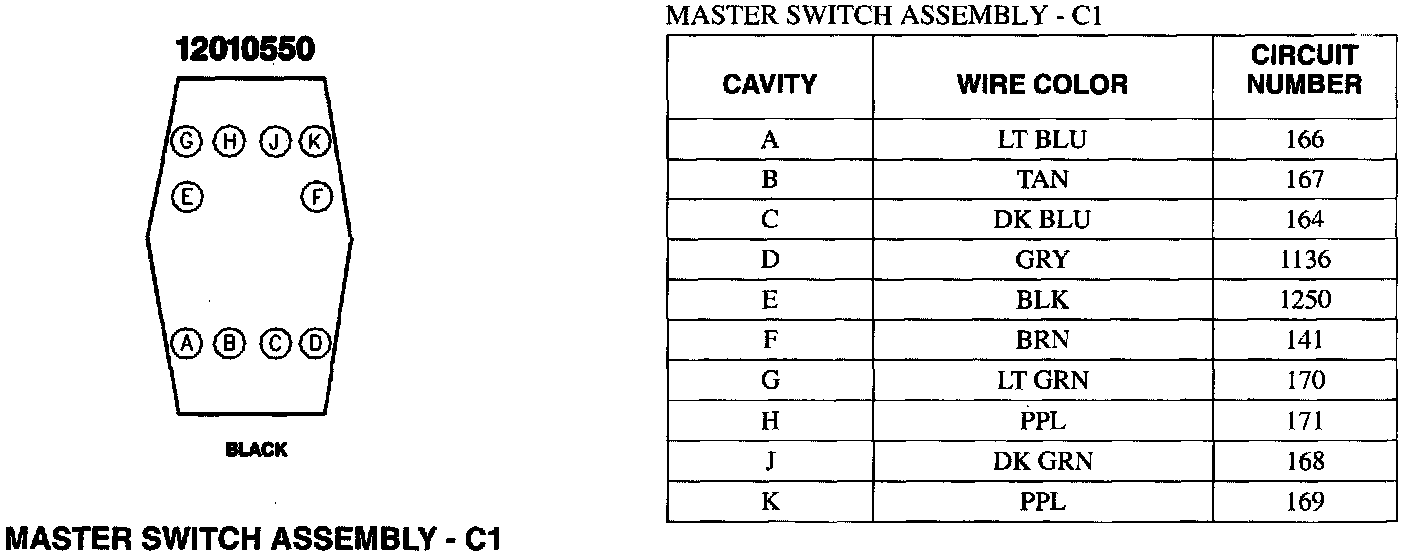

Master Switch Assembly: C1:
