Ninety-Eight V6-3800 3.8L VIN L SFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Vacuum Hose Routing
Vacuum Hose Routing

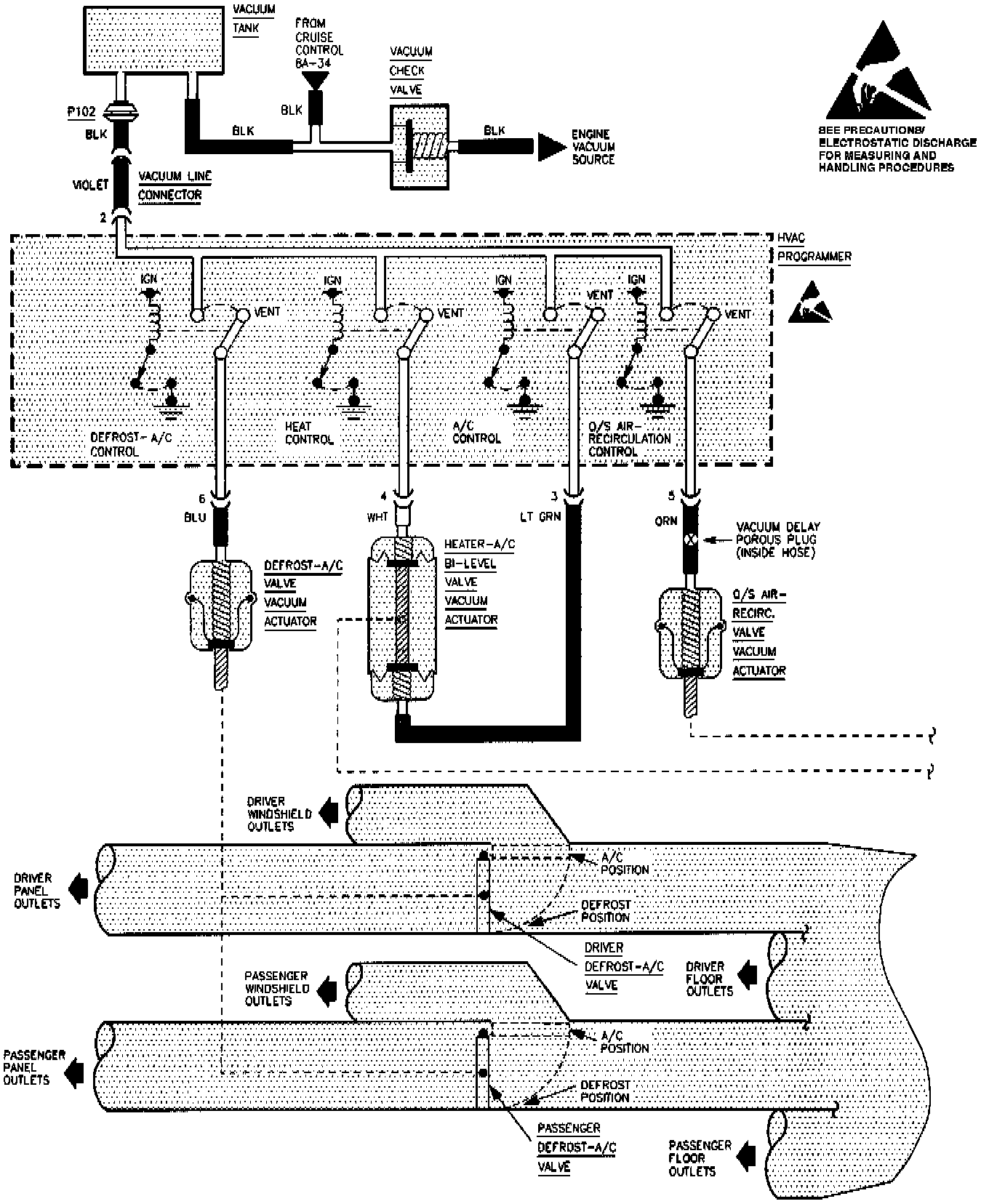

Dual Zone ECC Air Flow/Programmer Diagram (Part 1):

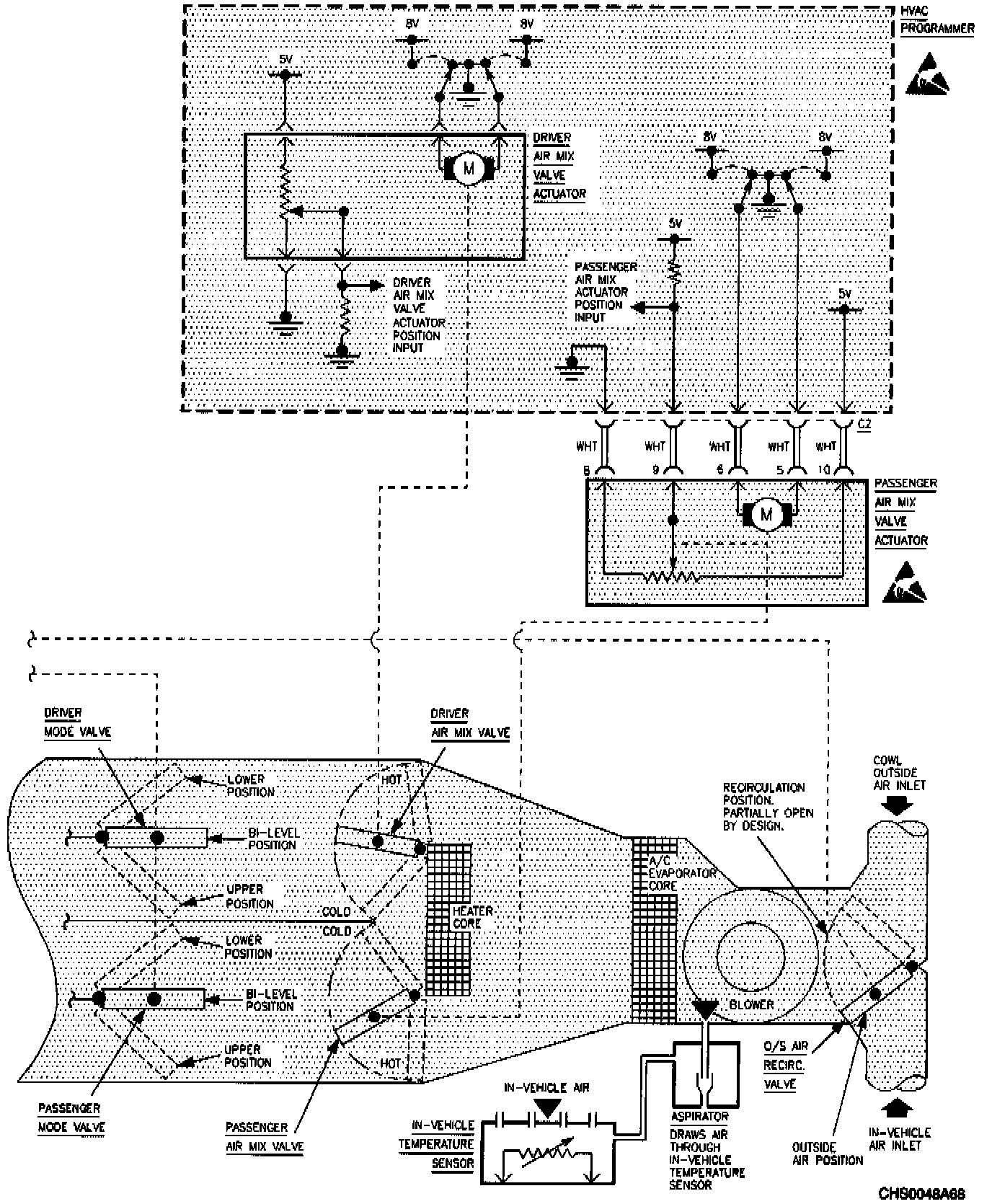

Dual Zone ECC Air Flow/Programmer Diagram (Part 2):
