Electrical Diagrams

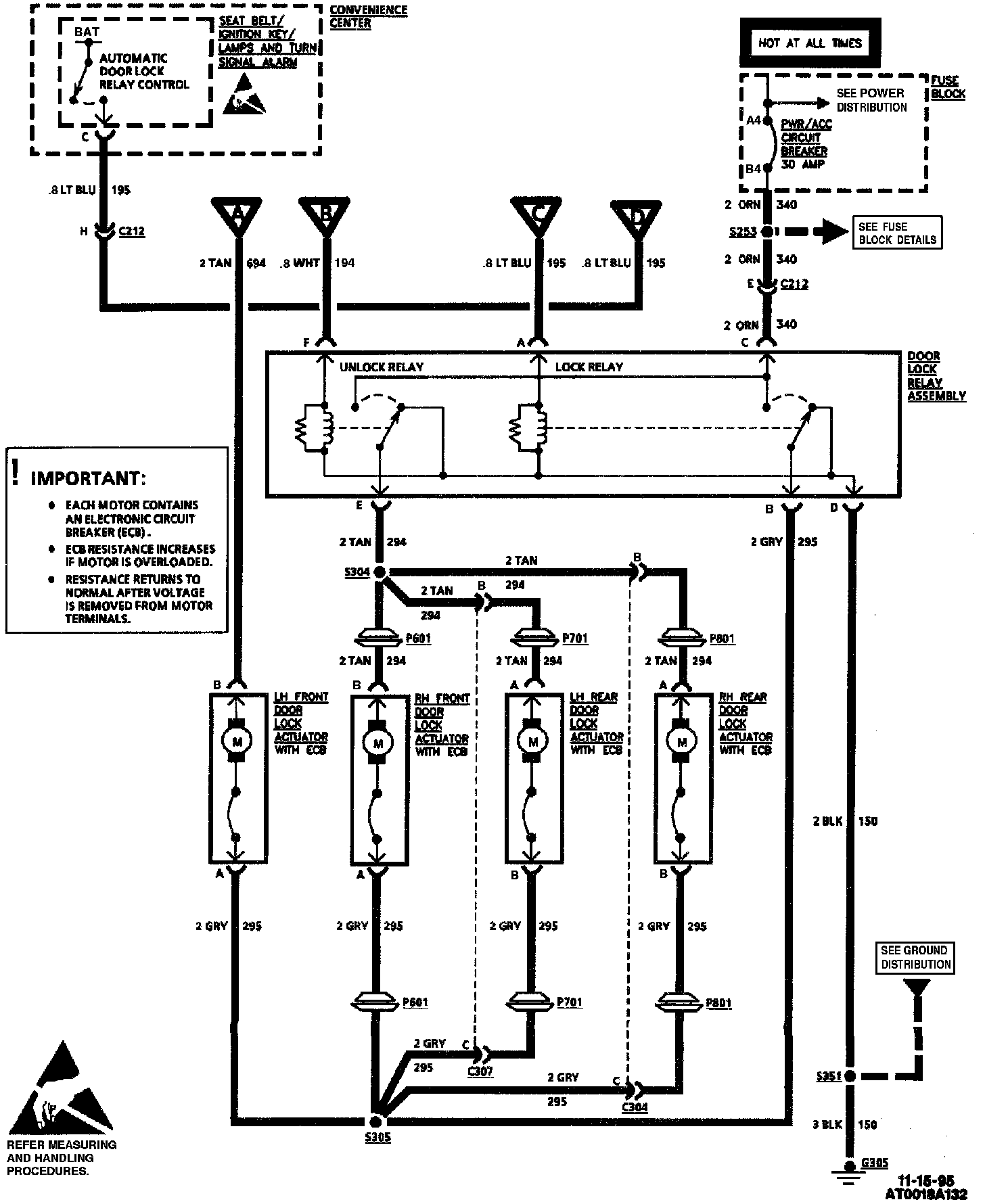

Remote Keyless Entry (Part 1 Of 3):



Remote Keyless Entry (Part 2 Of 3):



Remote Keyless Entry (Part 3 Of 3):
