Courtesy & Dome Lamp

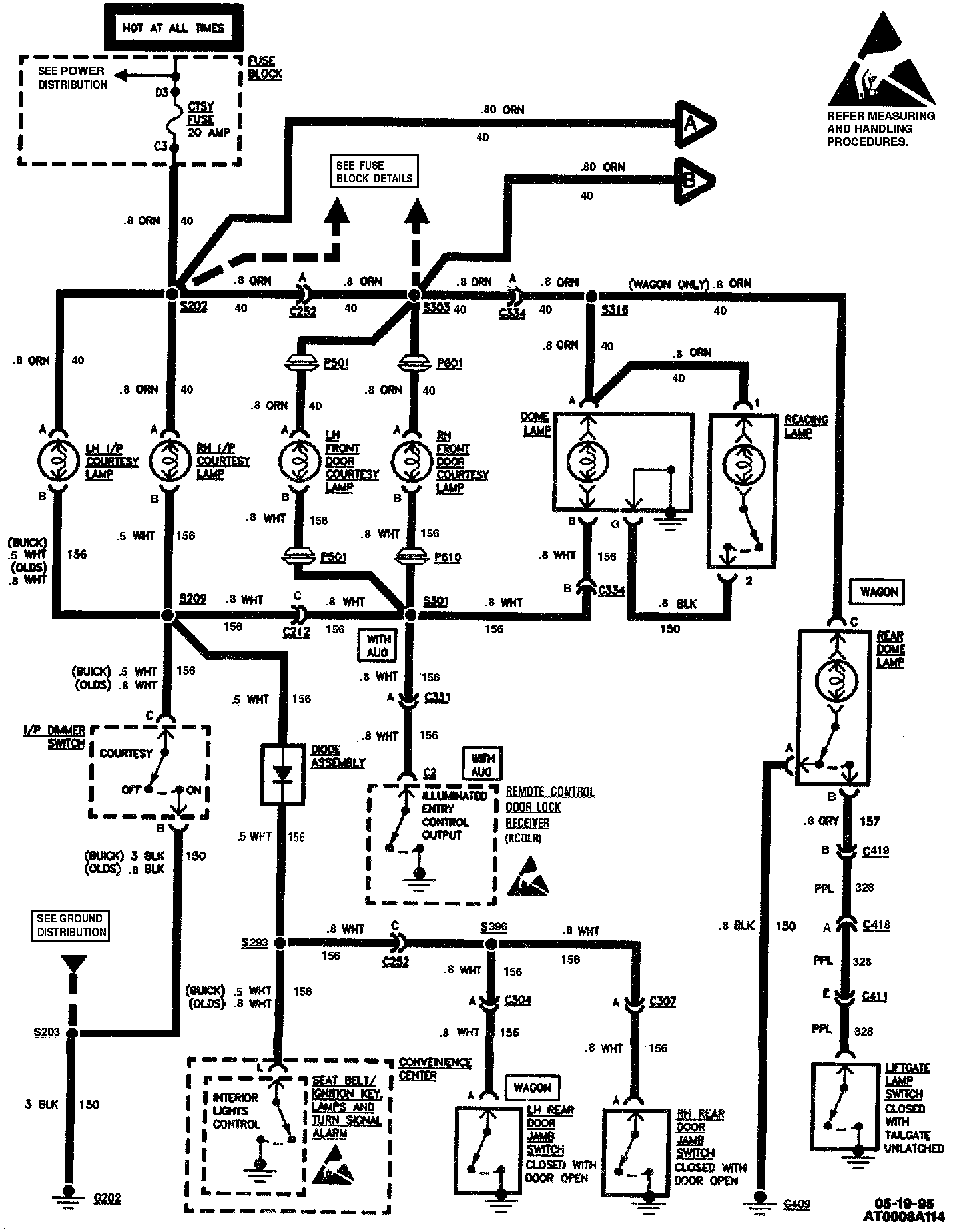

Courtesy And Dome Lamps (Part 1 Of 2):



Courtesy And Dome Lamps (Part 2 Of 2):
