Air Intake Resonator

Lower Air Filter Housing:

REMOVAL PROCEDURE
1. Remove the battery from the vehicle.
2. Remove the snorkel duct.
3. Remove the Intermediate duct.
4. Remove the battery tray mounting bolts.

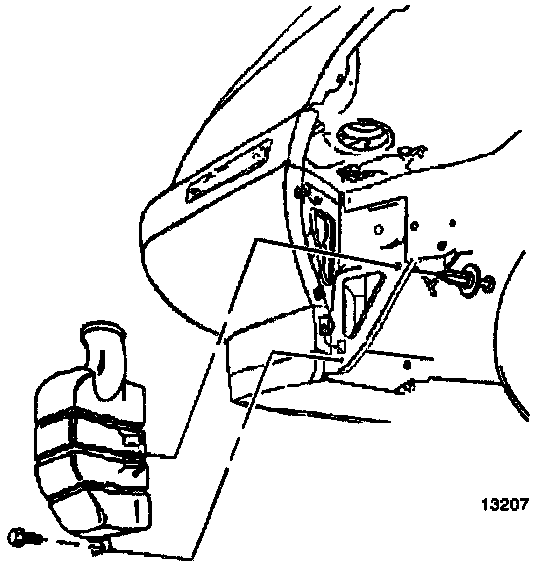

5. Remove the resonator.

INSTALLATION PROCEDURE
1. Install the resonator.
2. Install the resonator bolts.

Tighten
Bolts to 6 Nm (53 lb in).

Refer to Battery Disconnect Caution in Vehicle Damage Warnings.
Vehicle Damage Warnings

3. Install the battery mounting tray bolts.
4. Install the intermediate duct.
5. Install the snorkel duct.
6. Install the battery.
