Automatic Transmission/Transaxle: Application and ID

These transaxles may be identified by a model tag attached to the oil pan flange pad to the right of the oil dipstick at the rear of the transaxle.

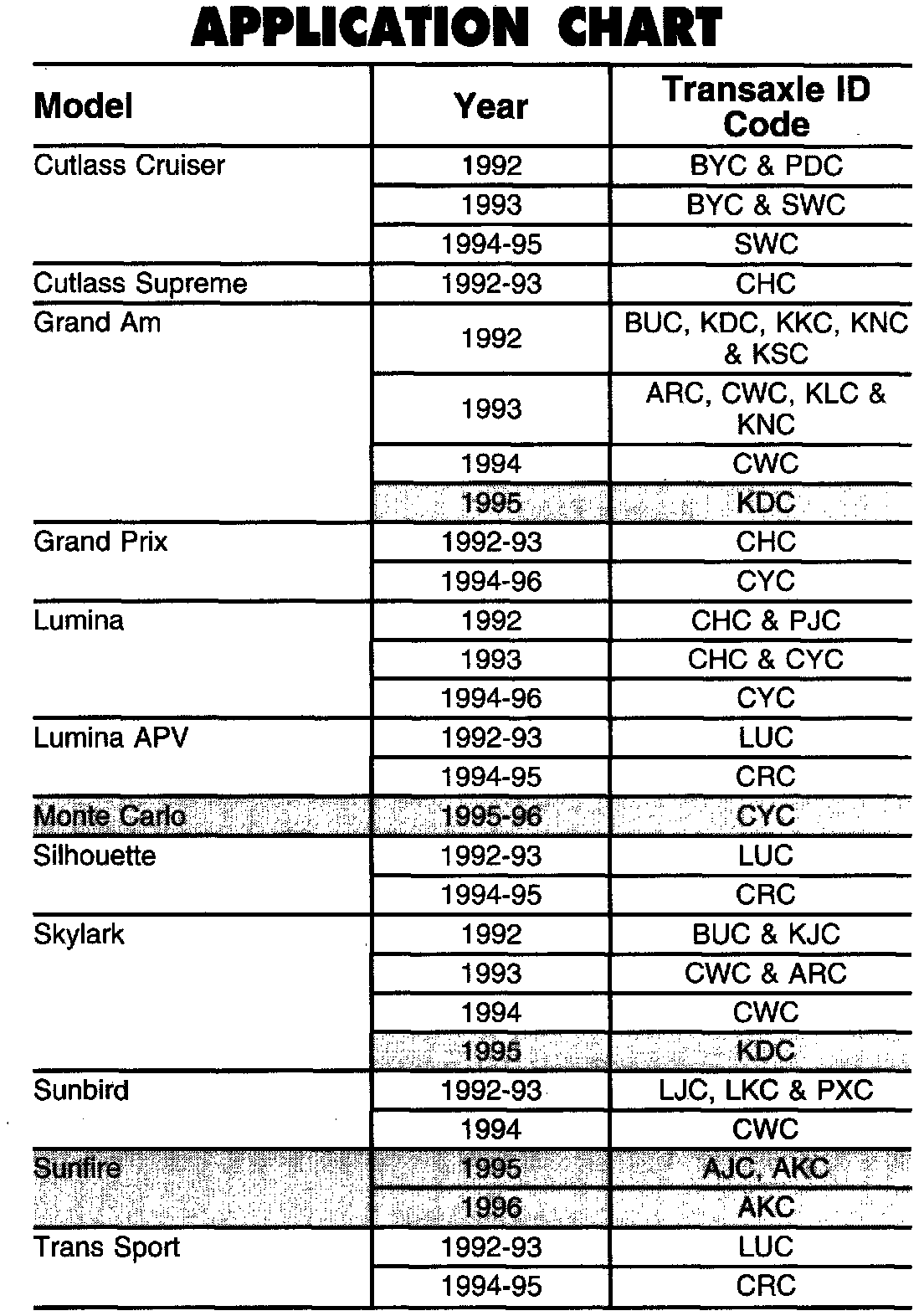

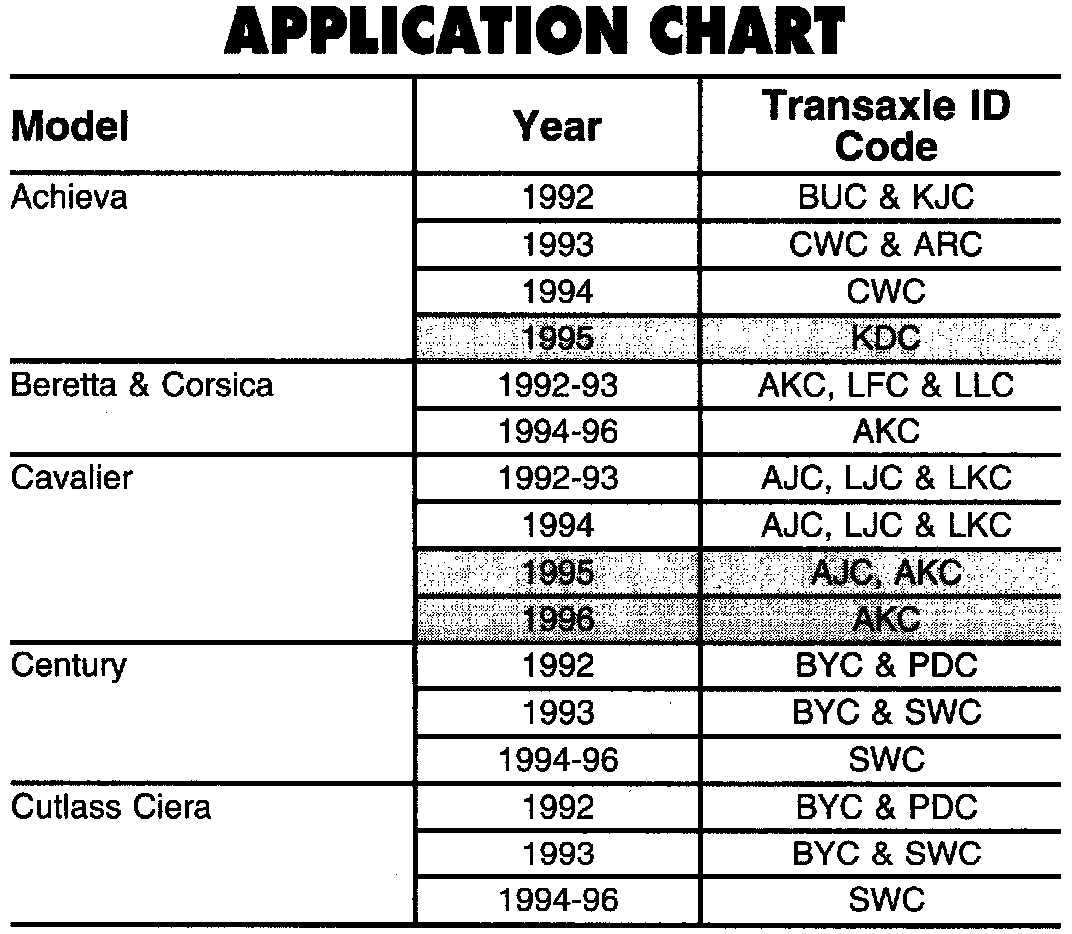

Refer to the figure and the "Application Chart" for transaxle identification.
