Power Window Switch

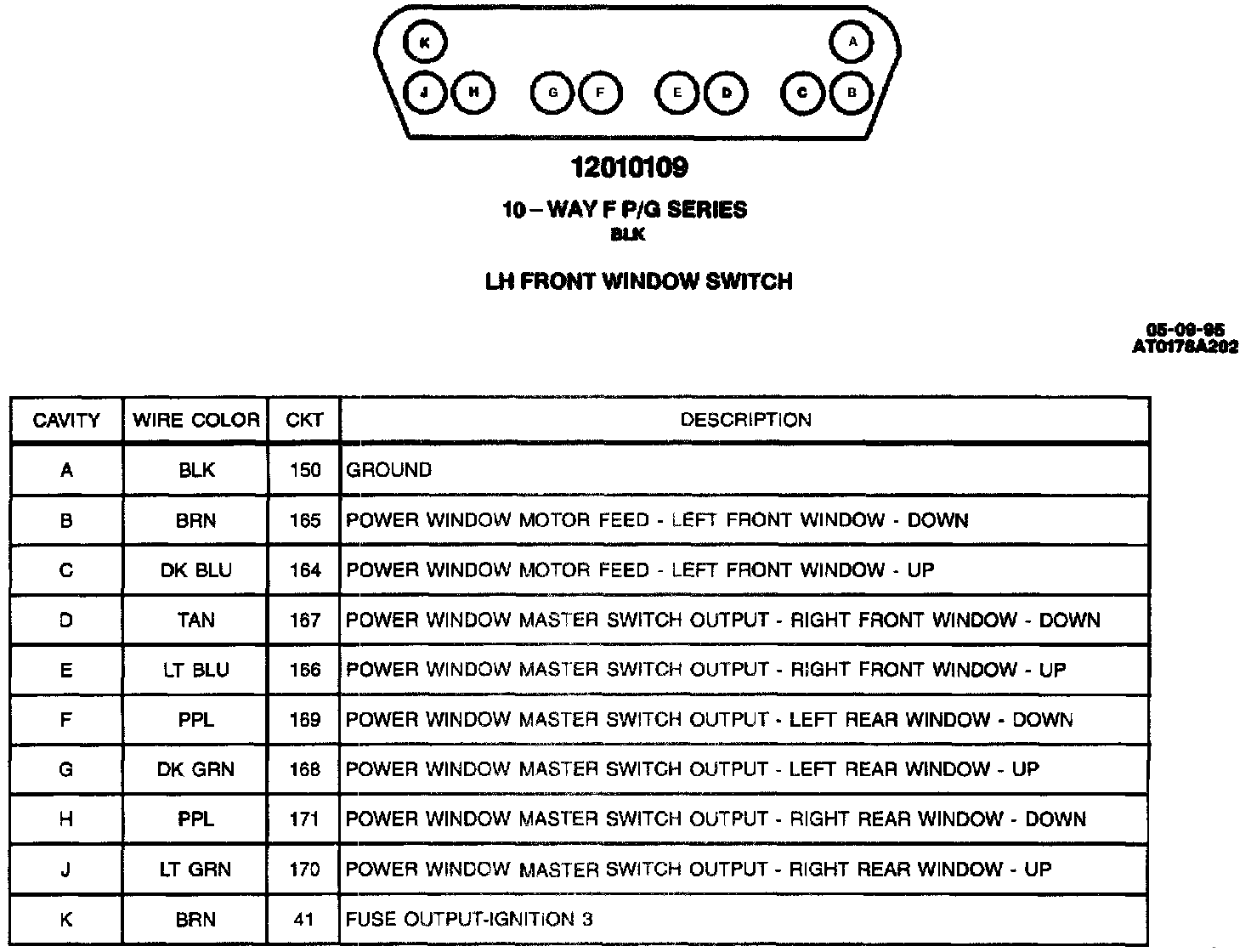

LH Front Window Switch:



Door Lock Switch, Window Switch:



Rear Window/Door Lock Switch, Window Switch, Right Hand FRT Window Switch:
