Cutlass Supreme V6-204 3.4L DOHC VIN X SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
EVAP, MAF, EGR
EVAP, MAF, EGR

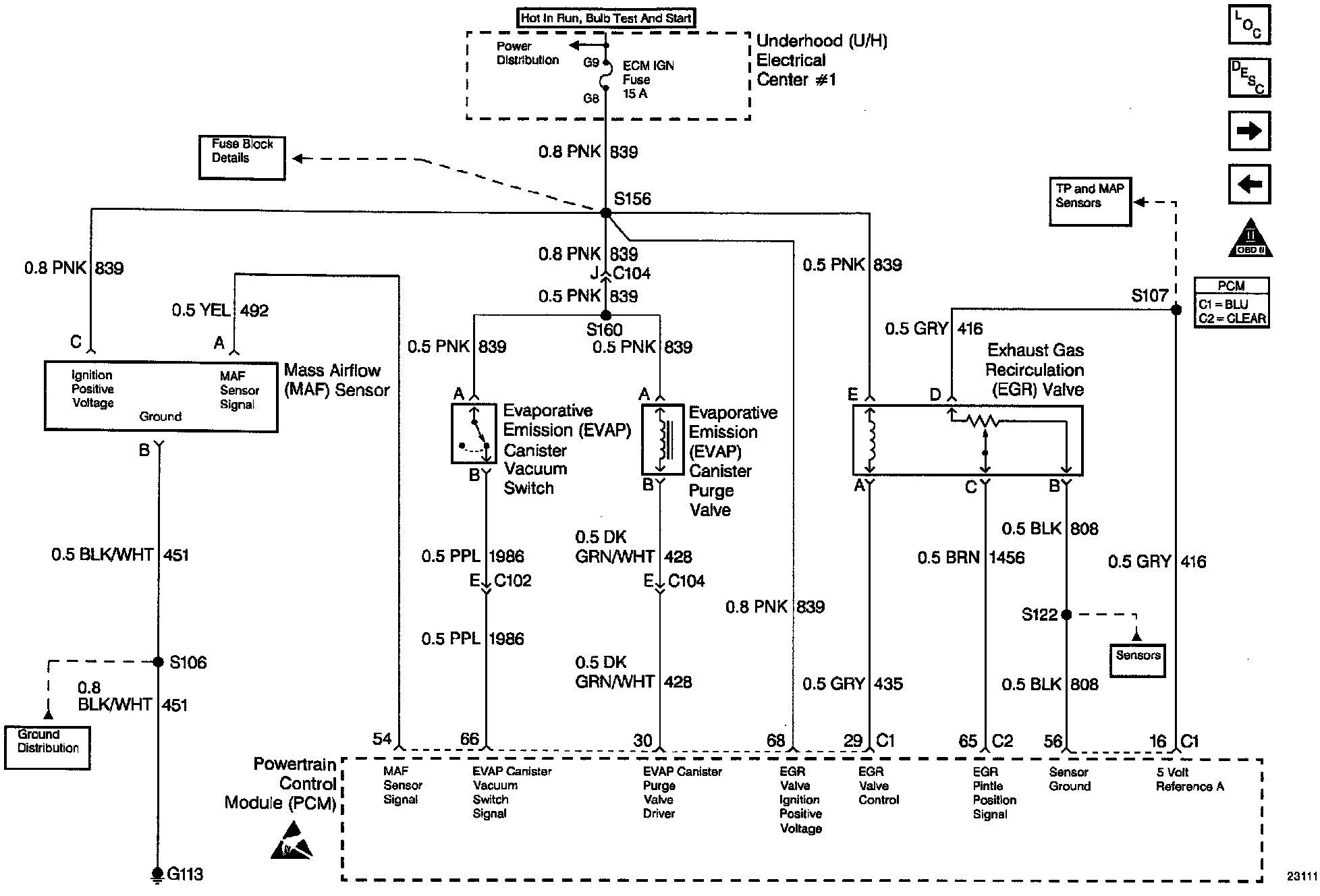

Engine Controls (EVAP, MAF, EGR Sensors):
