Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1996
>>
Cutlass Supreme V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Tachometer, Speedometer, Gages, Indicators
Tachometer, Speedometer, Gages, Indicators

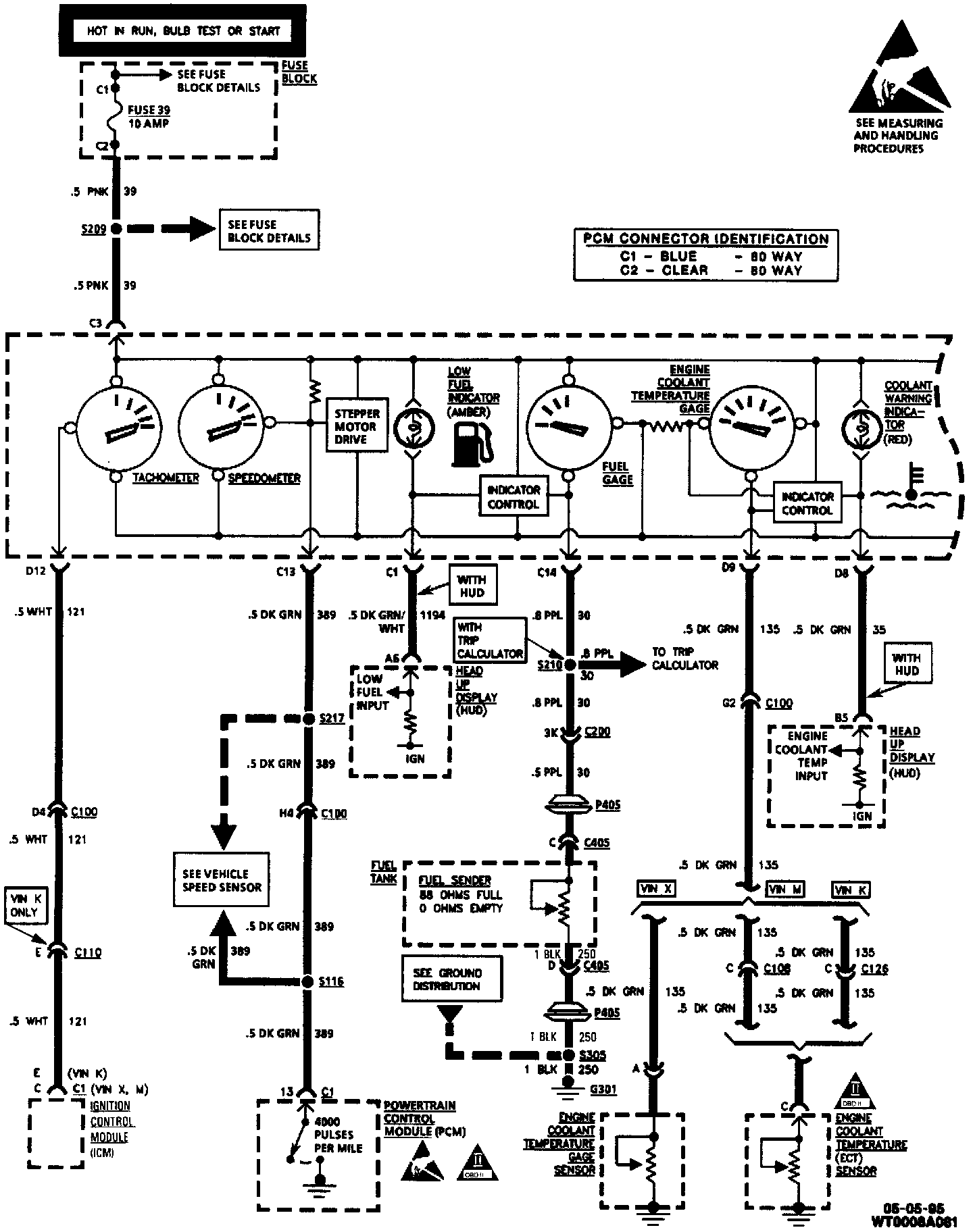

Tachometer, Speedometer, Gages, Indicators (Part 1 Of 2):

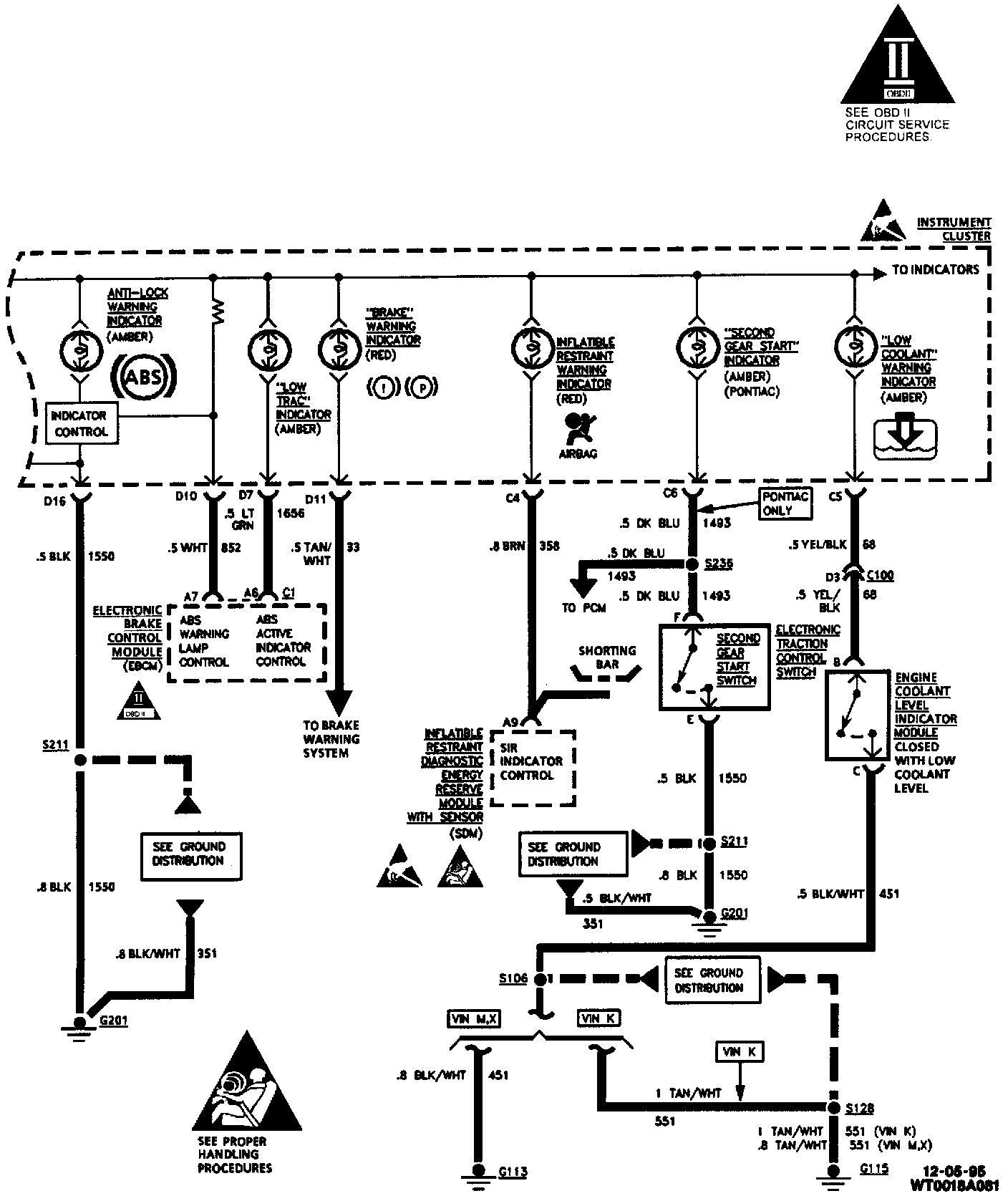

Tachometer, Speedometer, Gages, Indicators (Part 2 Of 2):
