Home >> Oldsmobile >> 1996 >> Cutlass Supreme V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Transmission Controls

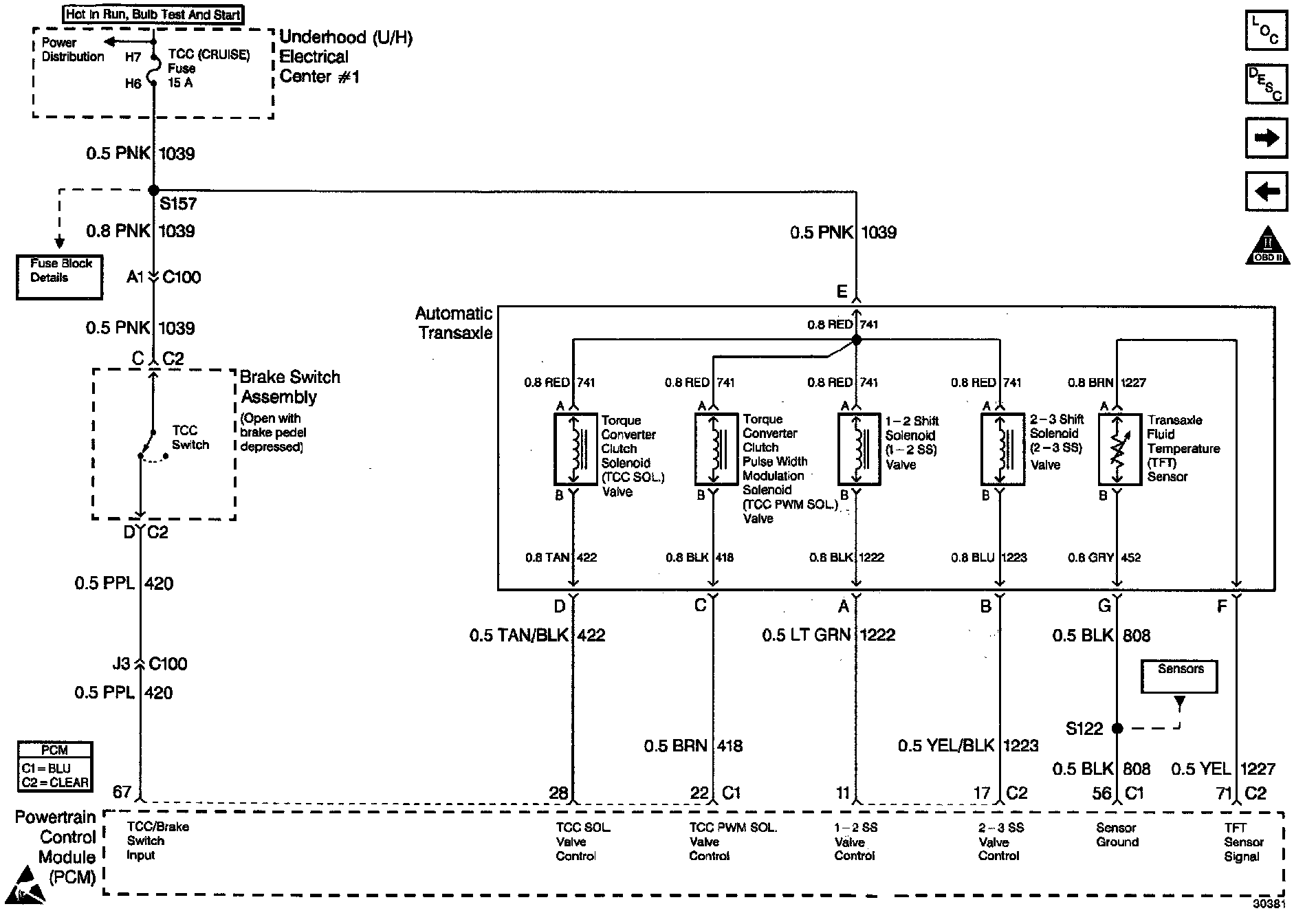

Transmission Controls

Engine Controls (TCC And Brake Switch Systems):
