Home >> Oldsmobile >> 1996 >> Eighty-Eight LSS FWD V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Coolant Level Indicator Lamp >> With RPO UH8 (INST, COOL TEMP, TRIP ODOM, TACH)

With RPO UH8 (INST, COOL TEMP, TRIP ODOM, TACH)

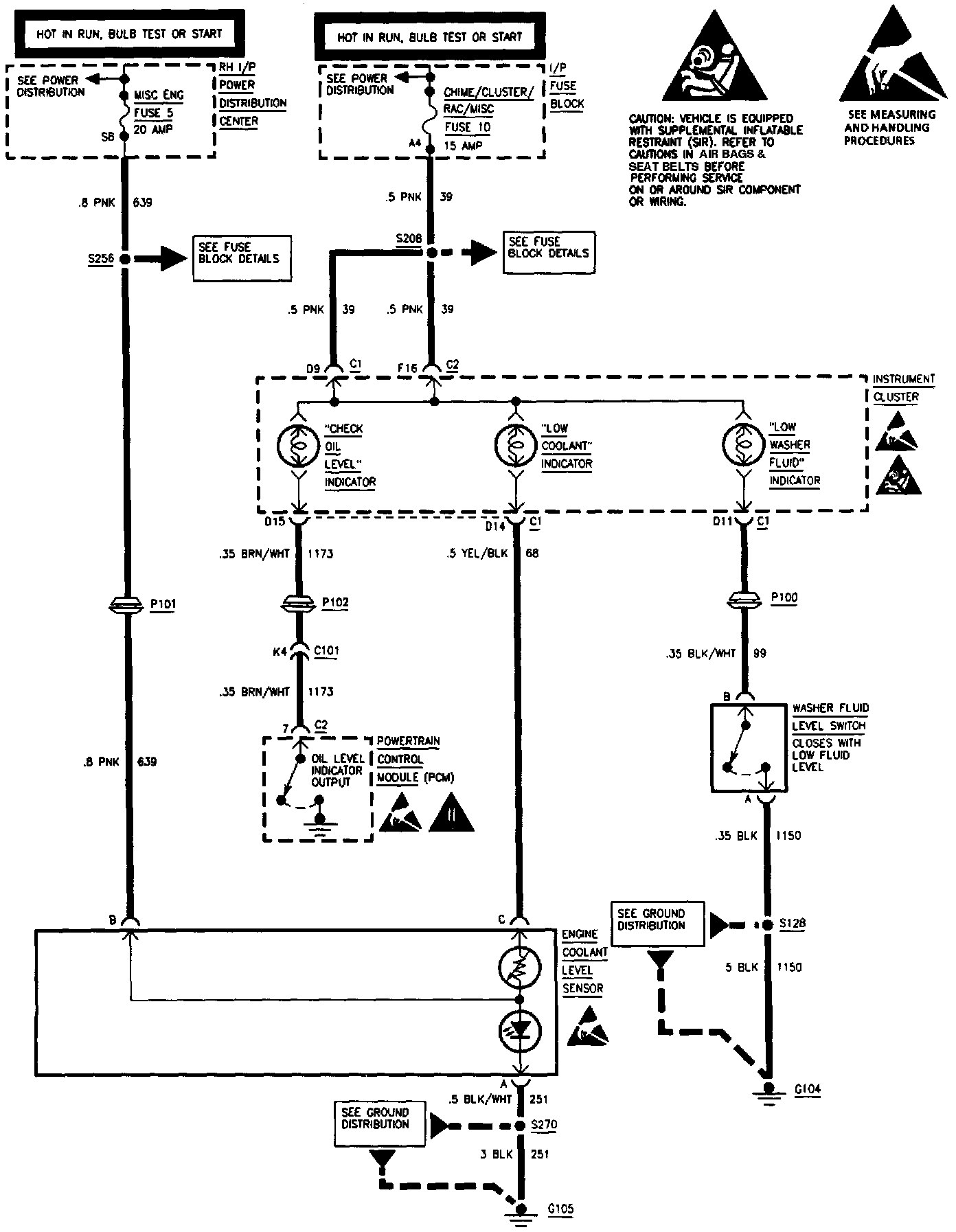

Gages Cluster: With UH8 (Part 7 Of 9):
