Home
>>
Oldsmobile
>>
1996
>>
Eighty-Eight LSS FWD V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Temperature Gauge
>>
Testing and Inspection
Temperature Gauge: Testing and Inspection

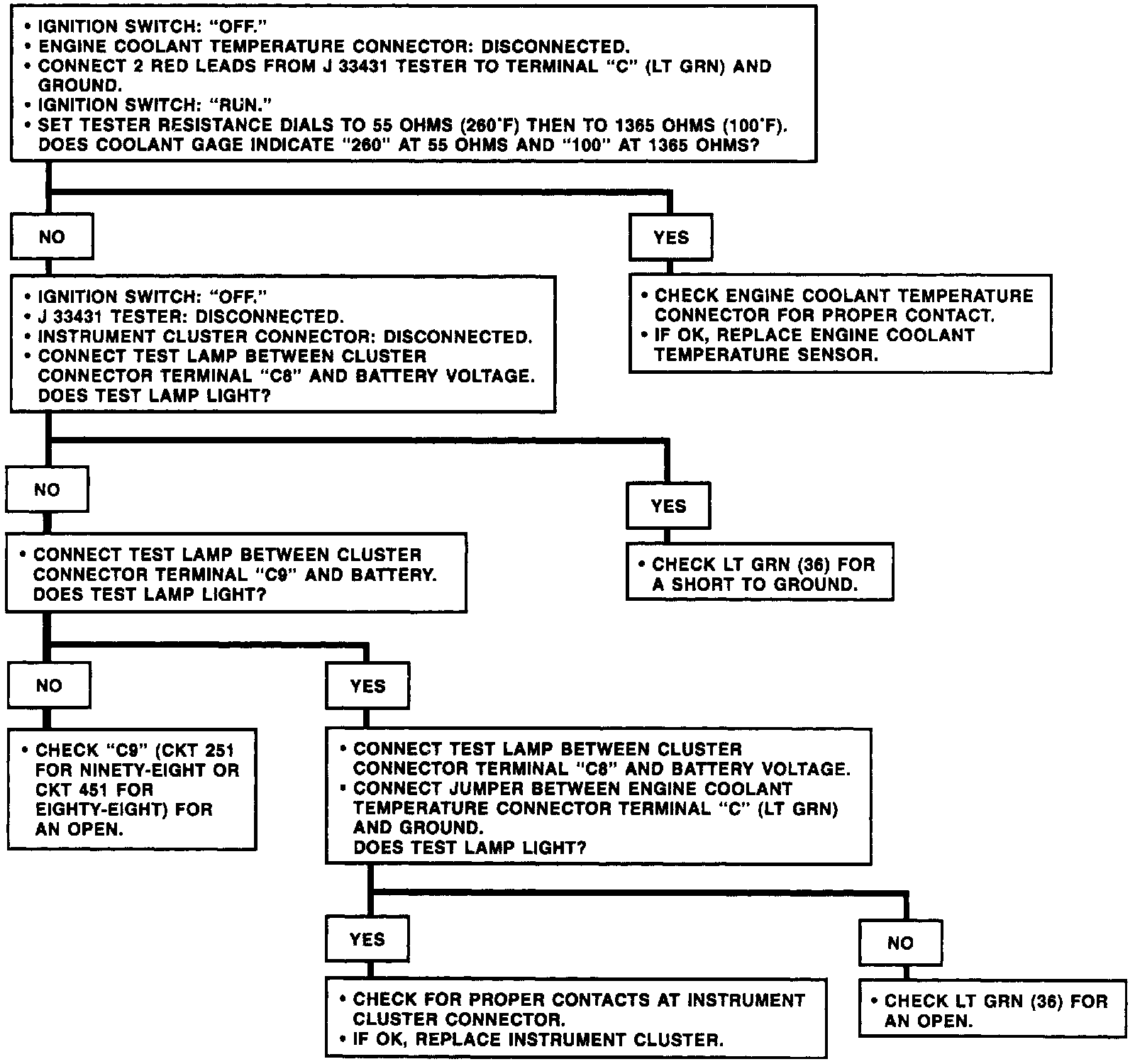

Fig. 73 Chart 5: Coolant Temperature Gauge Does Not Operate Properly:
