Cruise Control
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Cruise Control System Diagnosis Test C-17
Cruise Control System Diagnosis Test C-17

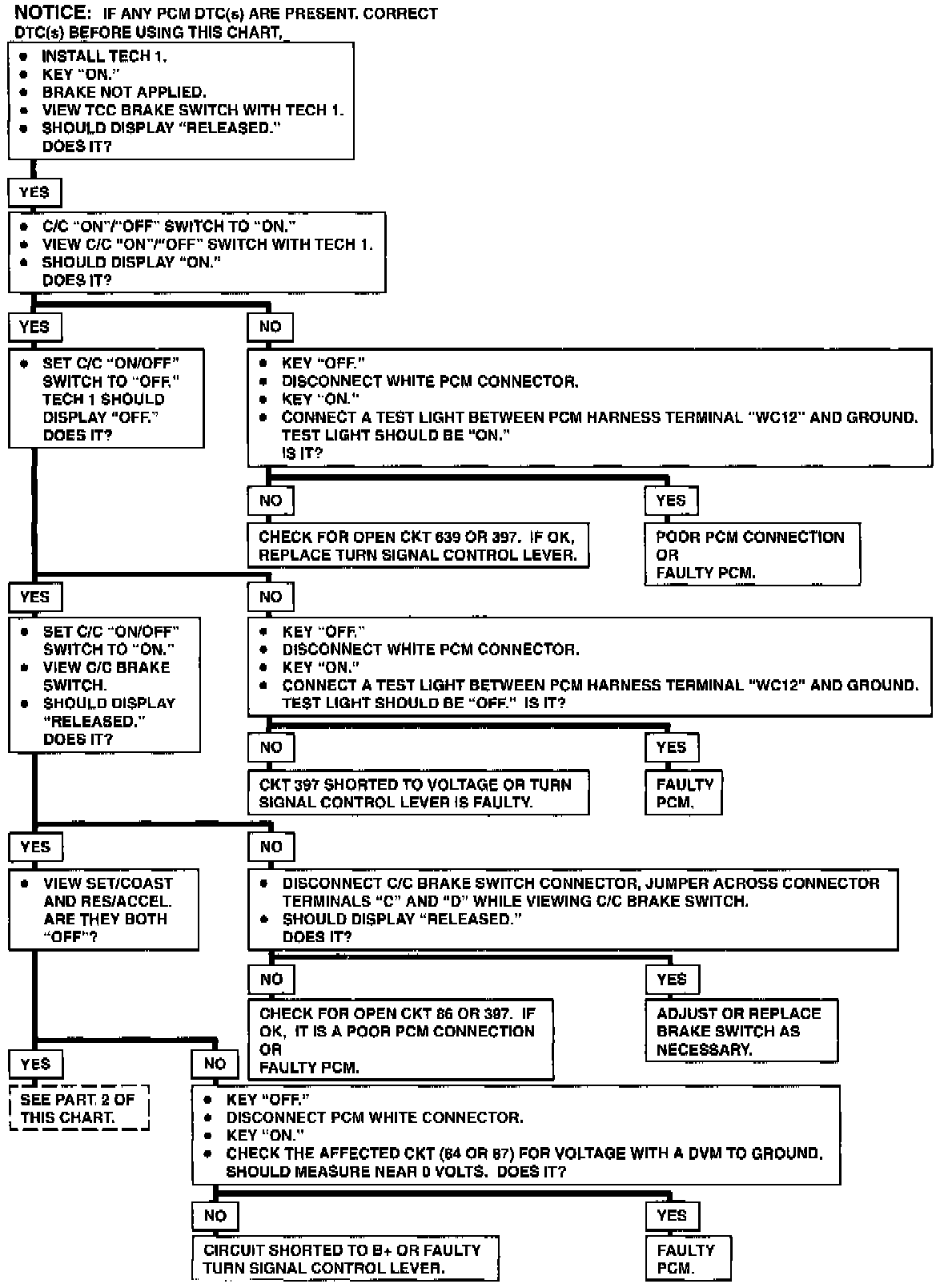

Fig. 10 Test C-17: Cruise Control System Check:

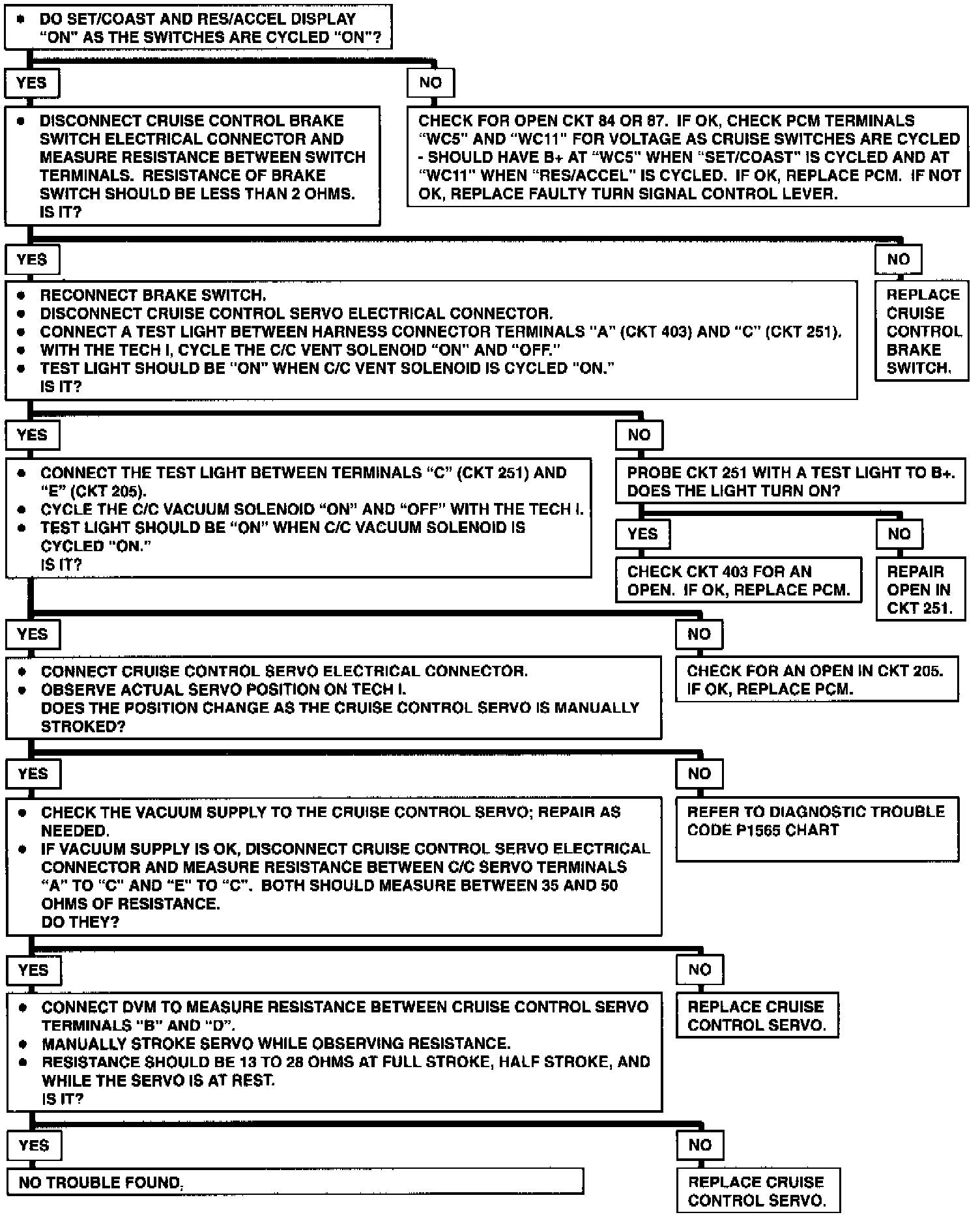

Fig. 10 Test C-17: Cruise Control System Check (Part 2 Of 2).:
