Universal Theft Deterrent (UTD) Systems

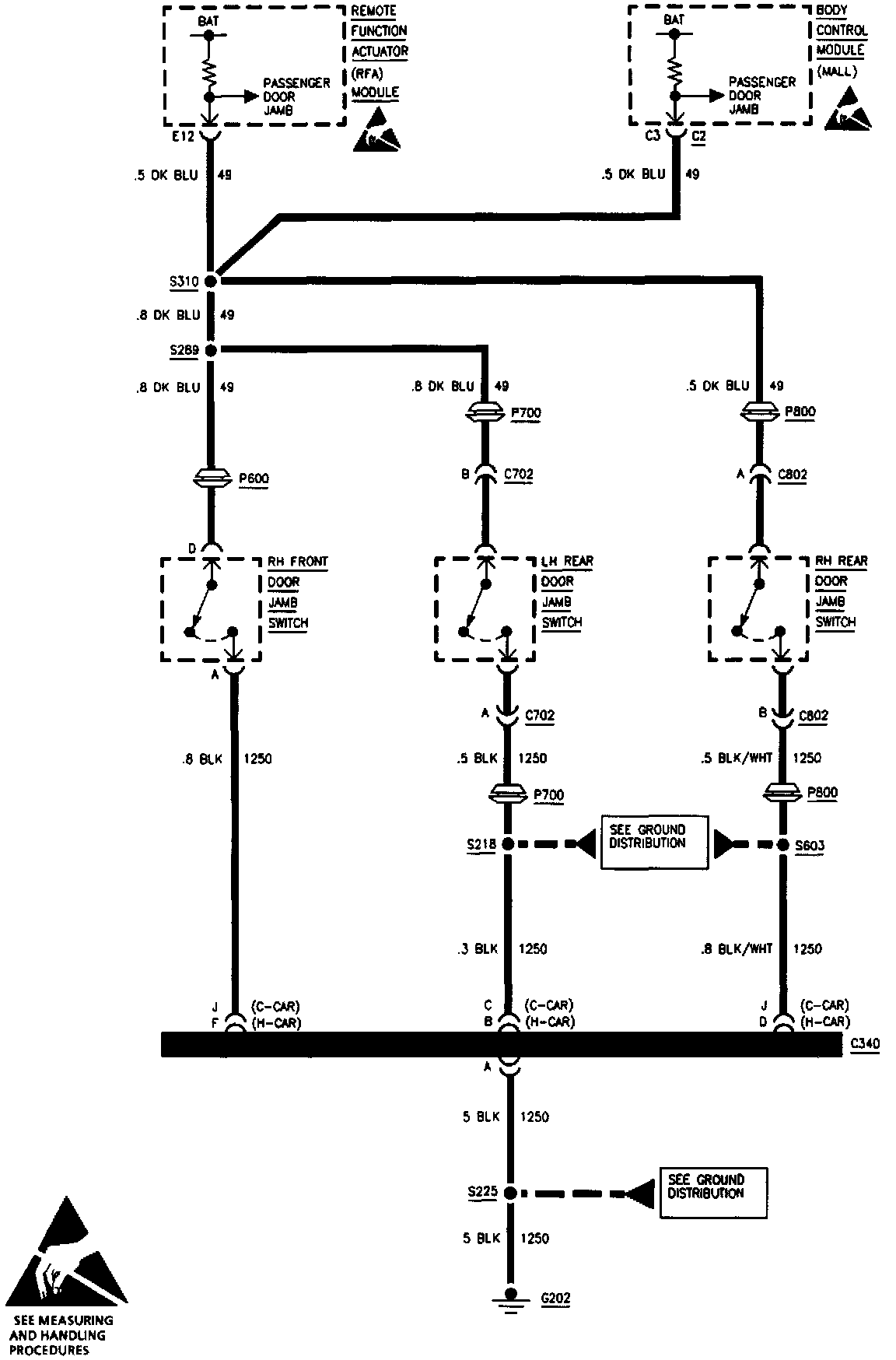

Universal Theft Deterrent System (UA6) (Part 1 Of 3):



Universal Theft Deterrent System (UA6) (Part 2 Of 3):



Universal Theft Deterrent System (UA6) (Part 3 Of 3):



Security Indicator:
