Home >> Oldsmobile >> 1996 >> Ninety-Eight V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Coolant Level Indicator Lamp >> With RPO U2E (INST, COOL TEMP, TRIP ODOM)

With RPO U2E (INST, COOL TEMP, TRIP ODOM)

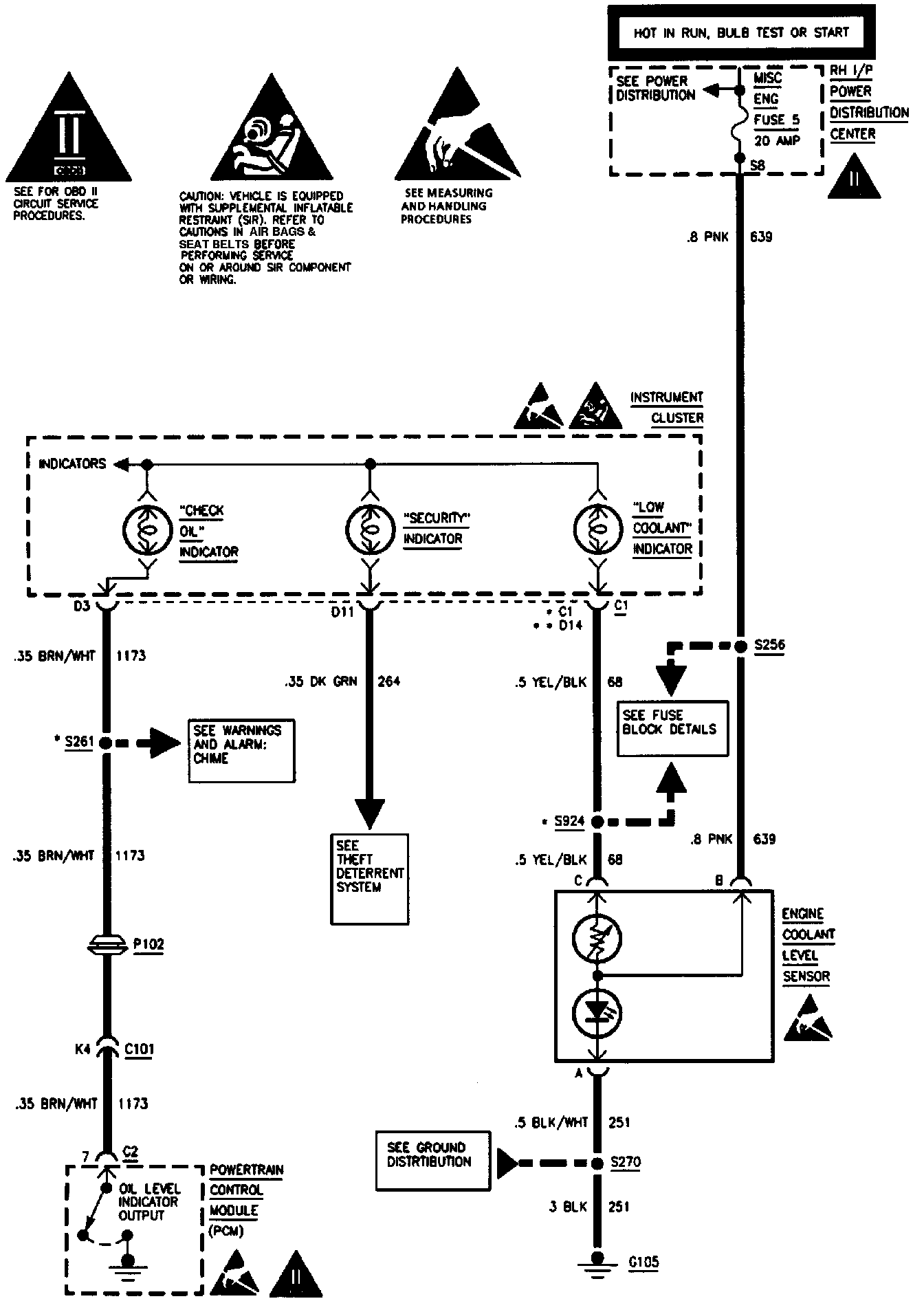

Indicator Cluster: With U2E (Part 4 Of 6):
