Ride Control System

Fig.10 CCR Wiring Diagram (Part 2 Of 4).:

Fig.10 CCR Wiring Diagram (Part 3 Of 4).:

Fig.10 CCR Wiring Diagram (Part 4 Of 4).:

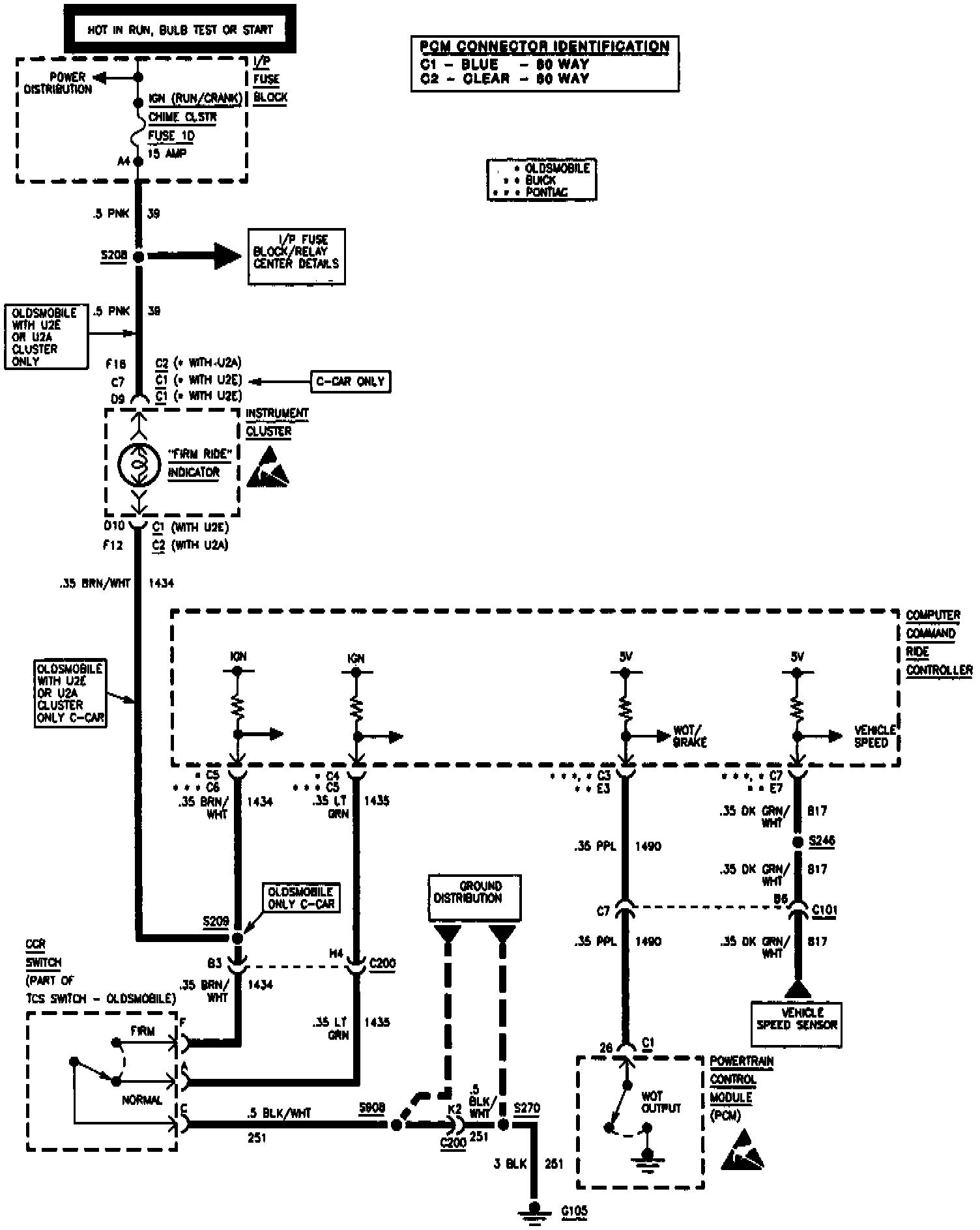

Refer to Fig. 10 for system wiring diagrams to help in the repair and diagnosis of the trouble codes.
