Instrument Panel Cluster Replacement

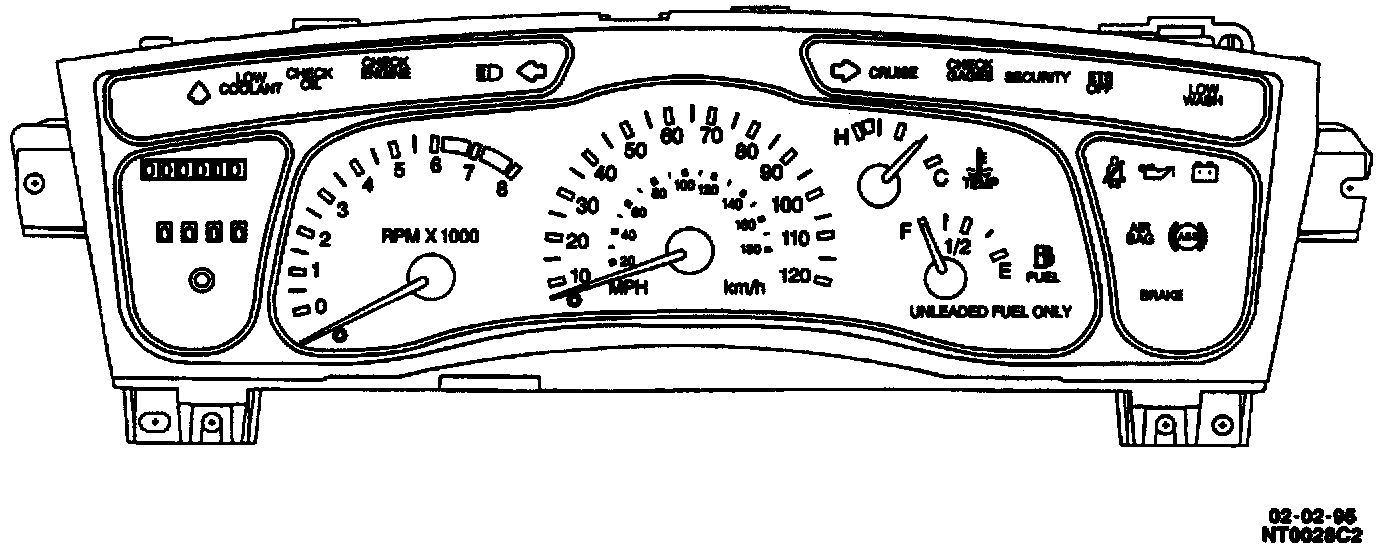

I/P Cluster (Oldsmobile):

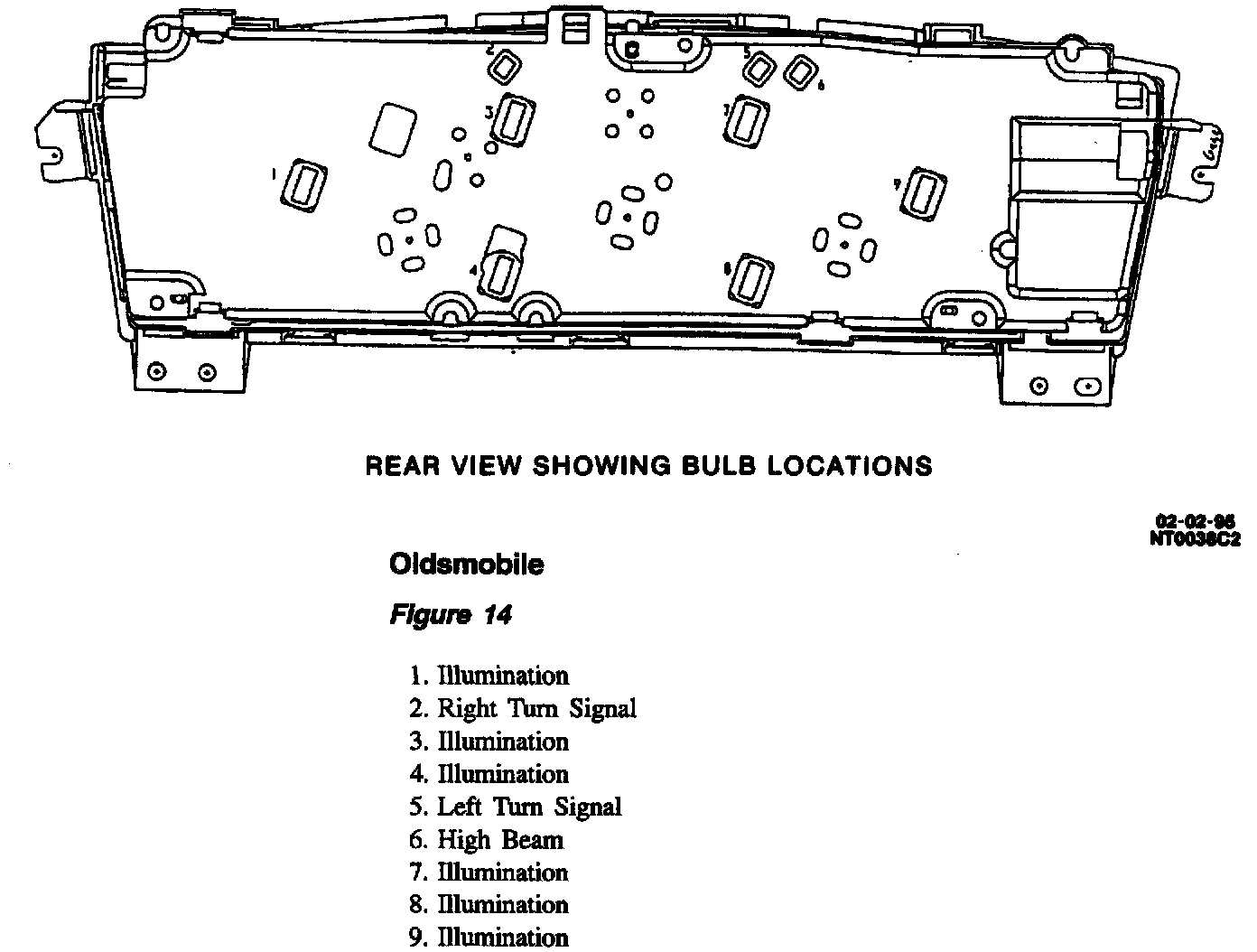

Rearview Of I/P Cluster (Oldsmobile):

Remove or Disconnect
1. I/P cluster trim plate.
2. Screws to I/P.
3. Electrical connector.
4. I/P cluster.

Install or Connect
1. I/P cluster.
2. Electrical connector.
3. Screws to I/P

Tighten
^ I/P Cluster screws to 2 N.m (17 lb. in.)

4. I/P cluster trim plate.

Legend
1. Illumination
2. Right Turn Signal
3. Illumination
4. Illumination
5. Left Turn Signal
6. High Beam
7. Illumination
8. Illumination
9. Illumination
