Cruise Control Servo Cable: Service and Repair

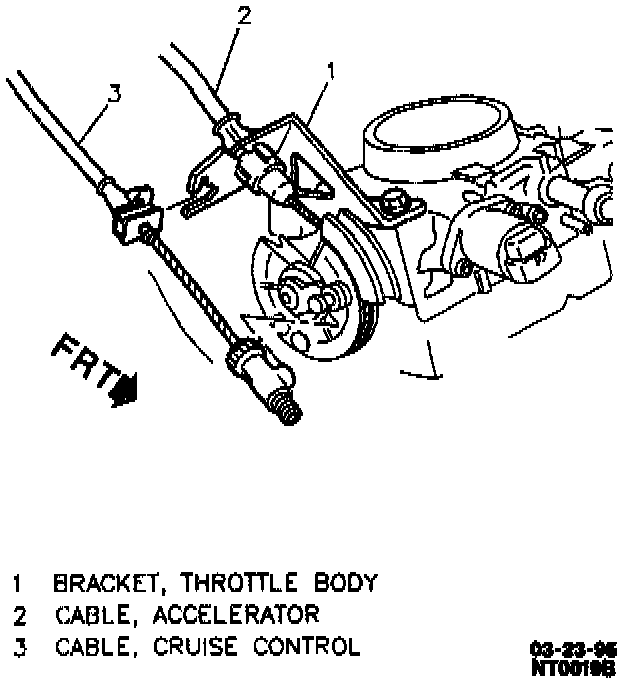

Cruise Control Routing:

Cruise Control Routing:

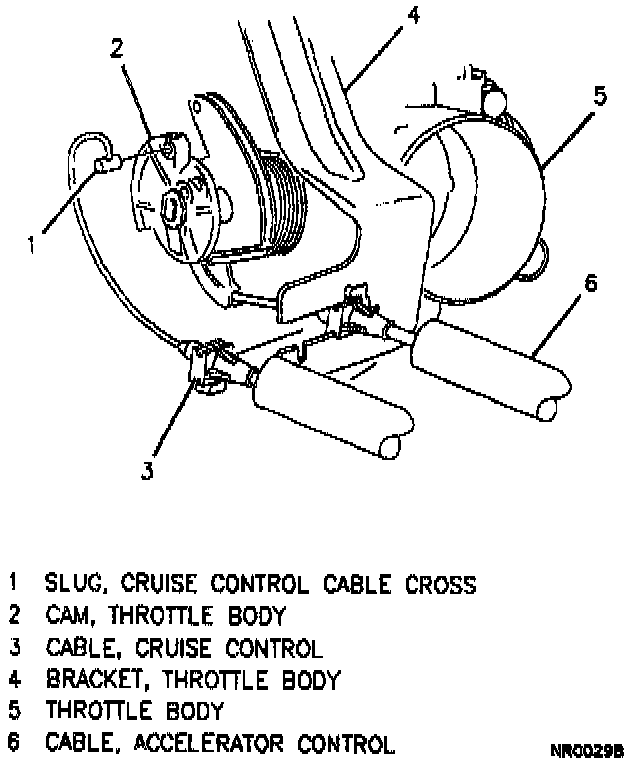

Cruise Control Cable To Throttle Bracket:

Cruise Control Cable To Throttle Bracket:

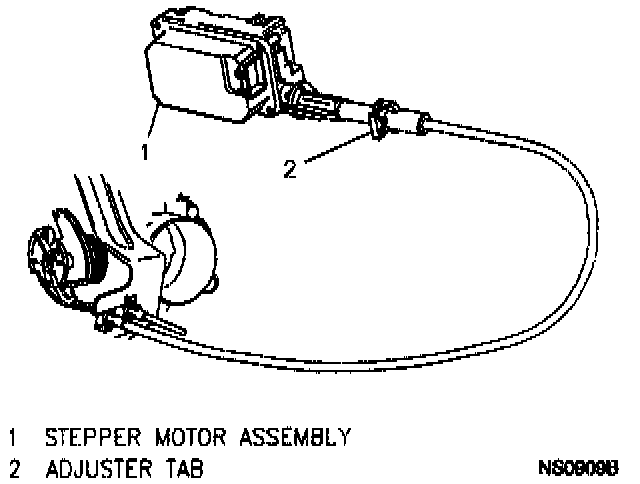

Cruise Control Cable Locking And Adjustment:

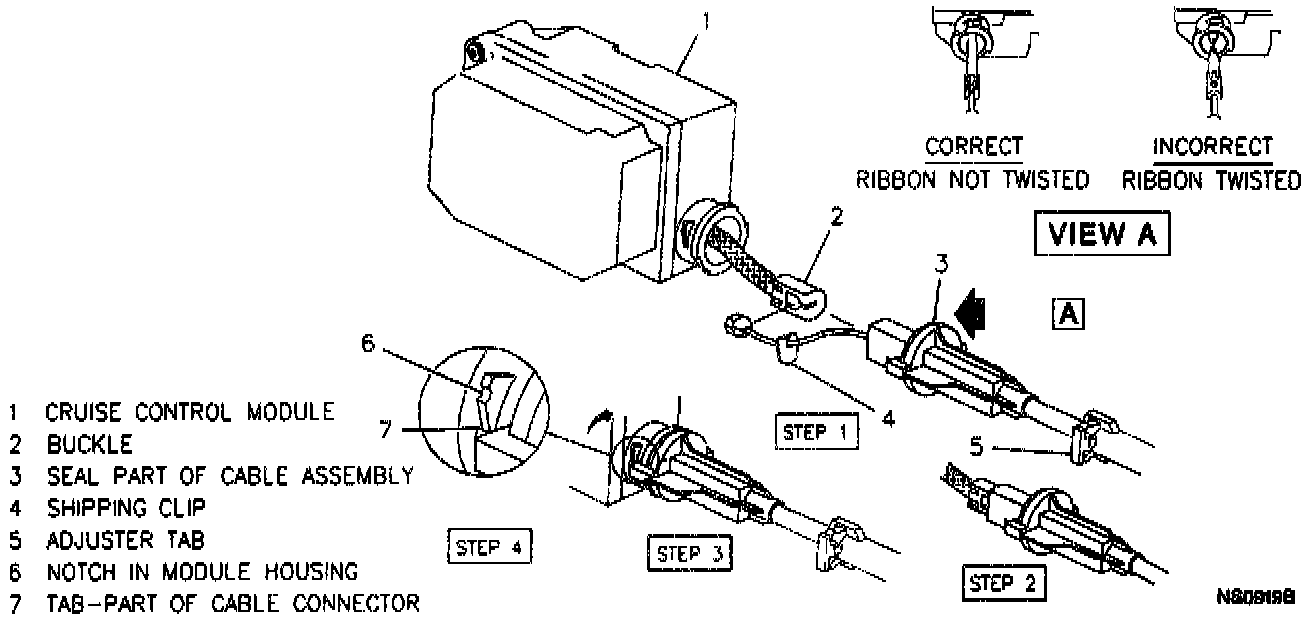

Cruise Control Cable To Module:

REMOVE OR DISCONNECT
1. Cruise control cable tab from TBI cam. Rotate throttle body cam to 1/4 open throttle to release tab.
2. Push locating fitting inward to release cable and pull from bracket.
3. Cable assembly from module by 1/4 turn counter clockwise.
4. Cable from ribbon.

INSTALL OR CONNECT
1. Cable to ribbon.
2. Cable assembly to module by 1/4 turn clockwise.
3. Cruise control cable tab to TBI cam.
4. Align cruise control cable fitting to TBI bracket and snap into place.
