Keyless Entry Receiver
Keyless Entry Receiver
Remote Control Door Lock Receiver:

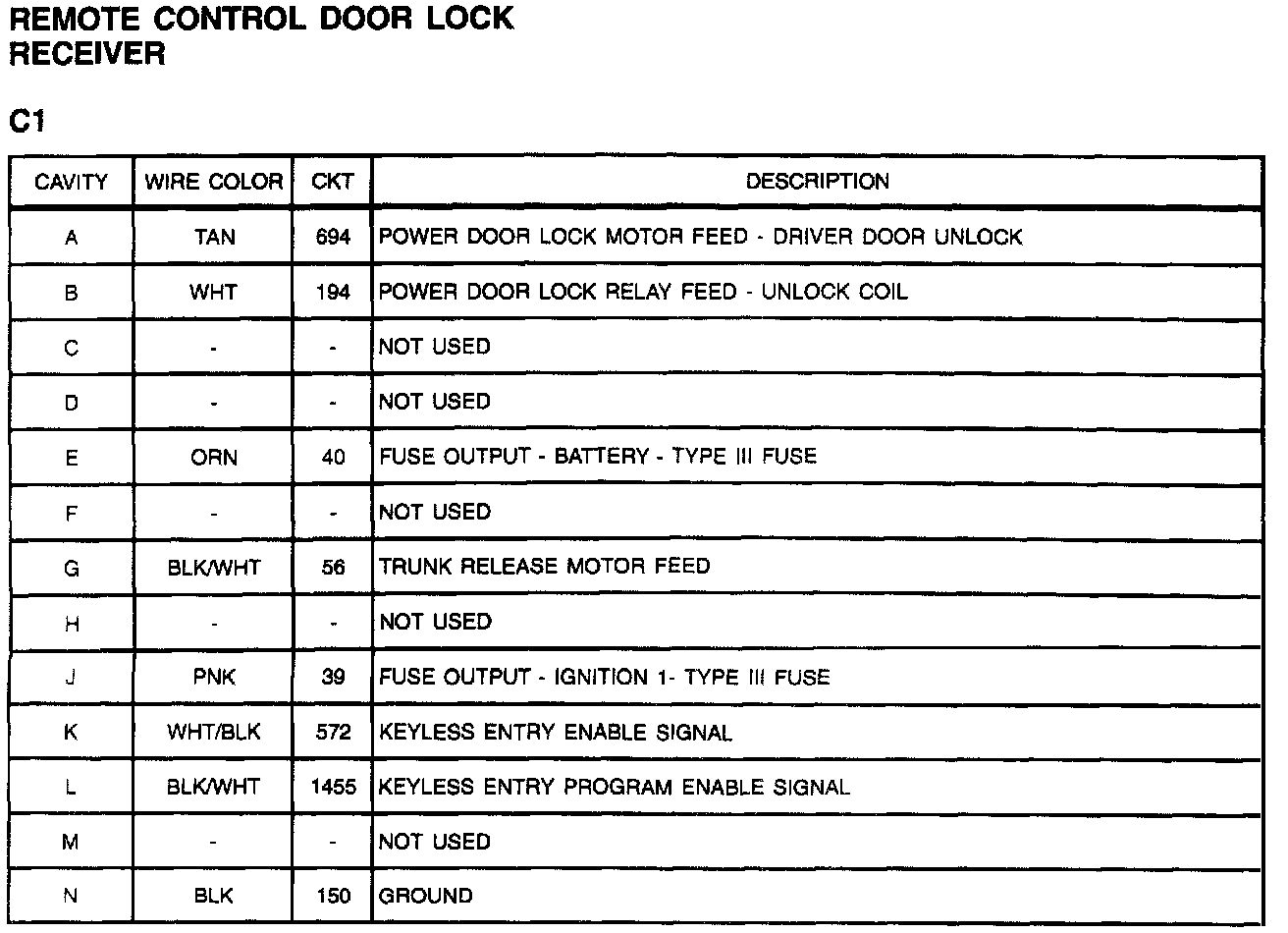

C1 (Part 1 Of 2):

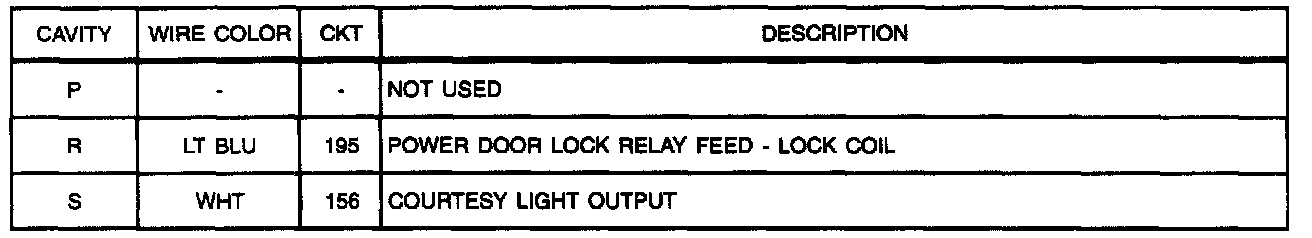

C1 (Part 2 Of 2):
C2:
