Home >> Oldsmobile >> 1997 >> Achieva V6-3100 3.1L MFI VIN M >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry

Keyless Entry

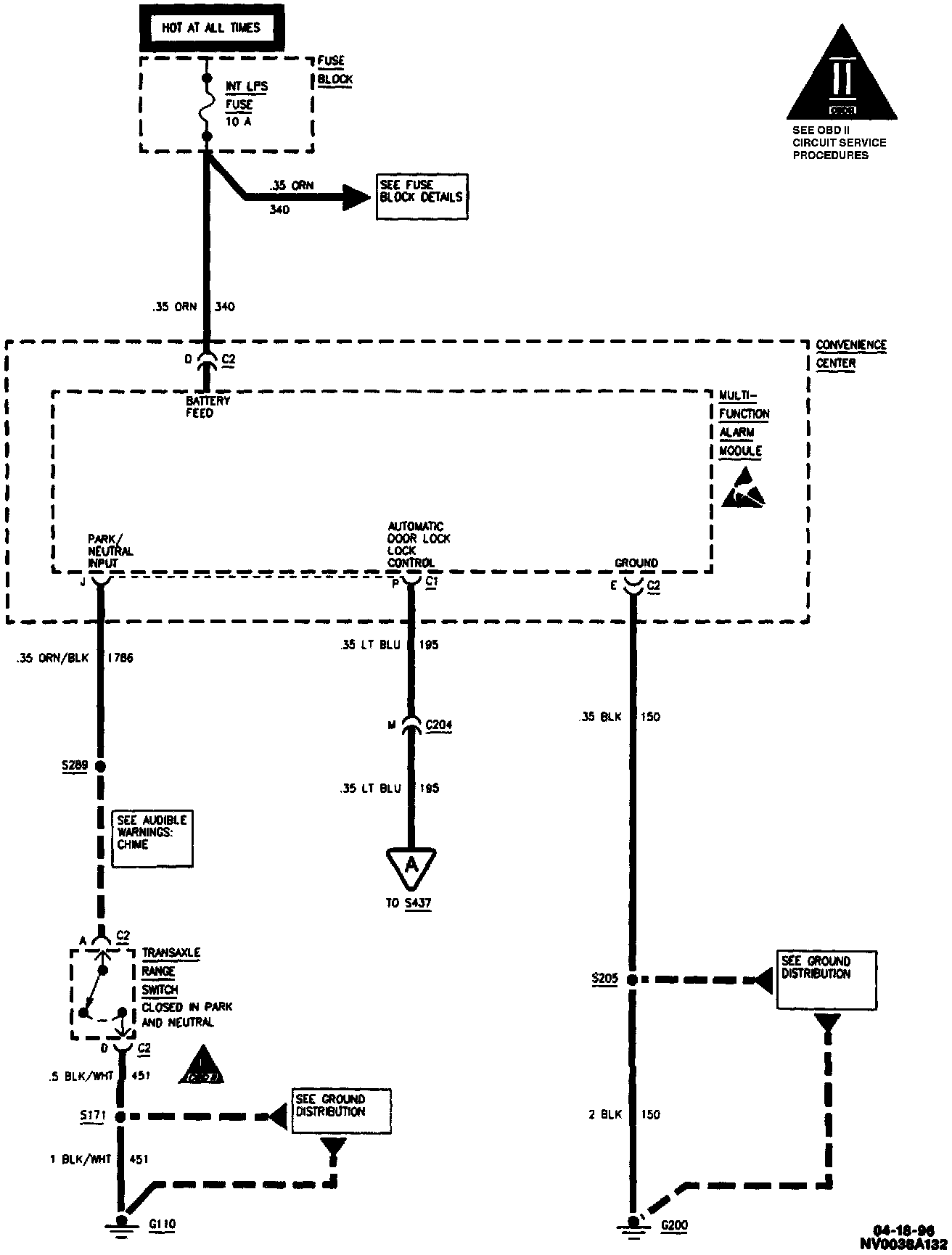

Keyless Entry:




Keyless Entry:




Keyless Entry (Part 3 Of 4):




Keyless Entry (Part 4 Of 4):
