Marker Lamp: Service and Repair

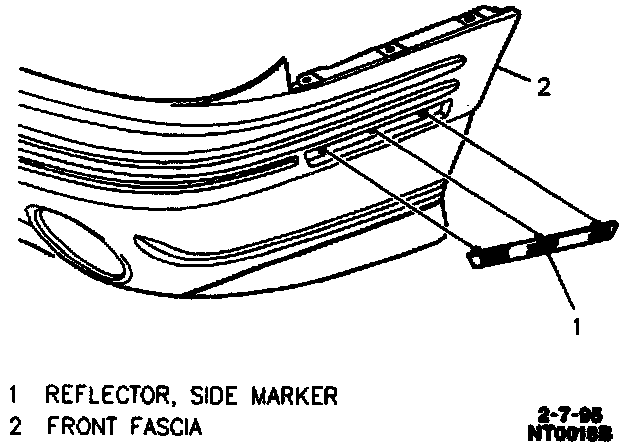

Side Marker Lamp (Pontiac):

Side Marker Lamp (Buick):

Side Marker Lamp (Oldsmobile):

Remove or Disconnect
1. Open hood.
2. Screw to lamp tab.
3. Socket by twisting 45 degrees counterclockwise.
4. Bulb and socket from lamp housing.

Install or Connect
1. Bulb into socket.
2. Socket into lamp housing. Secure socket into housing by twisting socket 45 degrees.
3. Screw.

Tighten
^ Screw to 2 N.m (17 lb. in.)

4. Close hood.
