Parking Brake System: Description and Operation

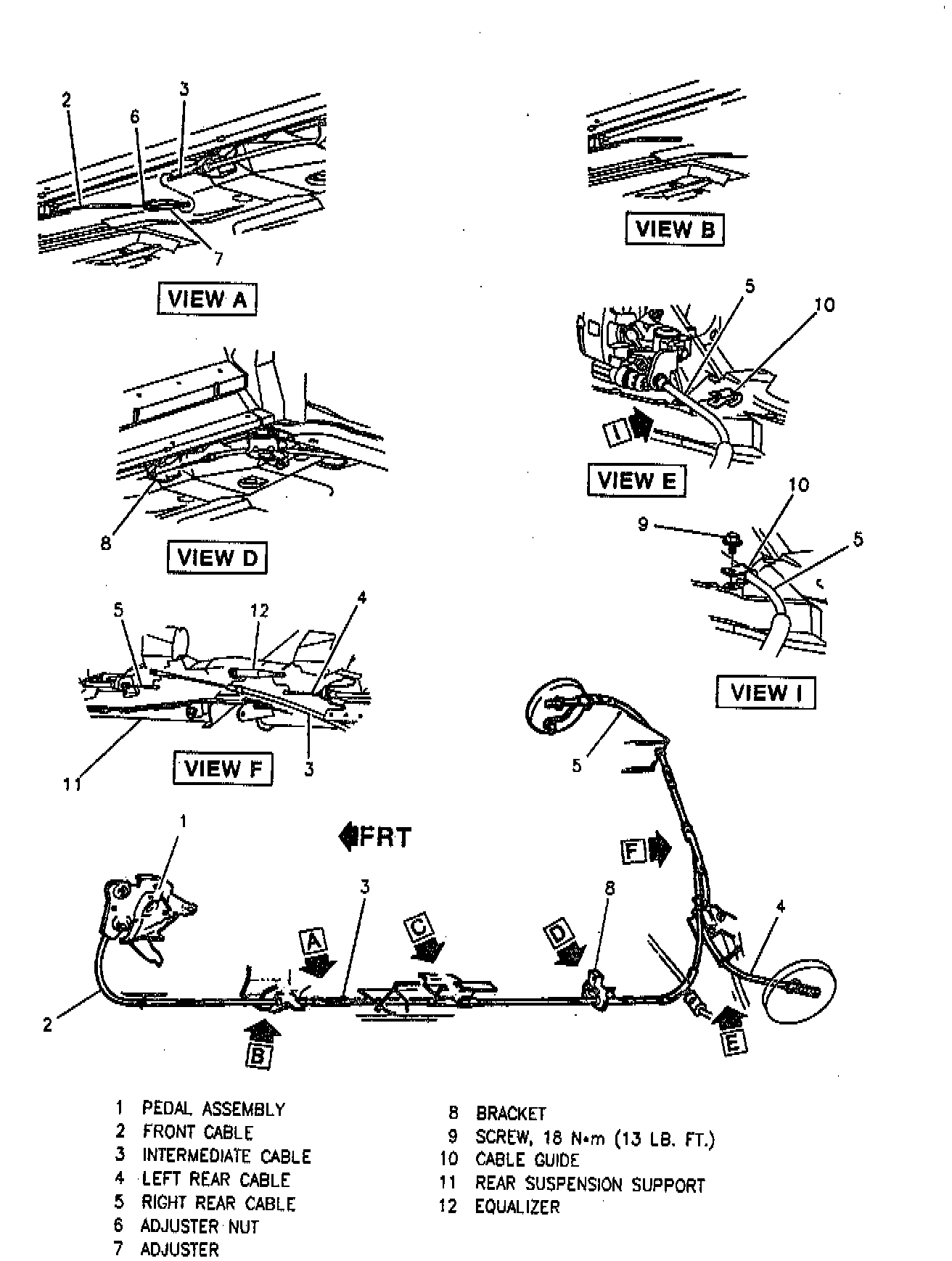

Parking Brake Components:

Description

The parking brake system is a mechanical system which operates on the rear disc brakes.

Operation
