Home >> Oldsmobile >> 1997 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo

Radio/Stereo

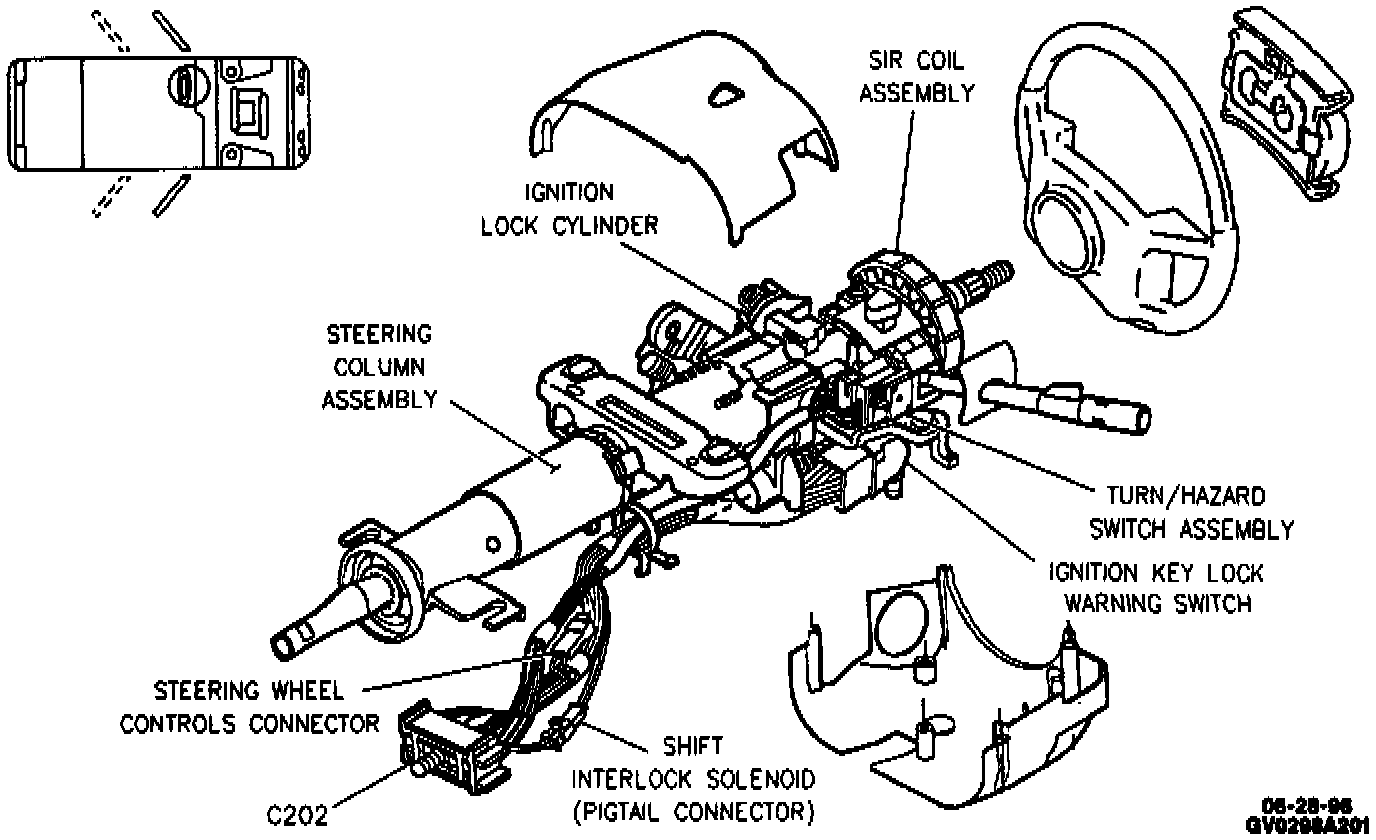

LH Front Of Passenger Compartment, Attached To Steering Column:
