Antilock Brakes / Traction Control Systems

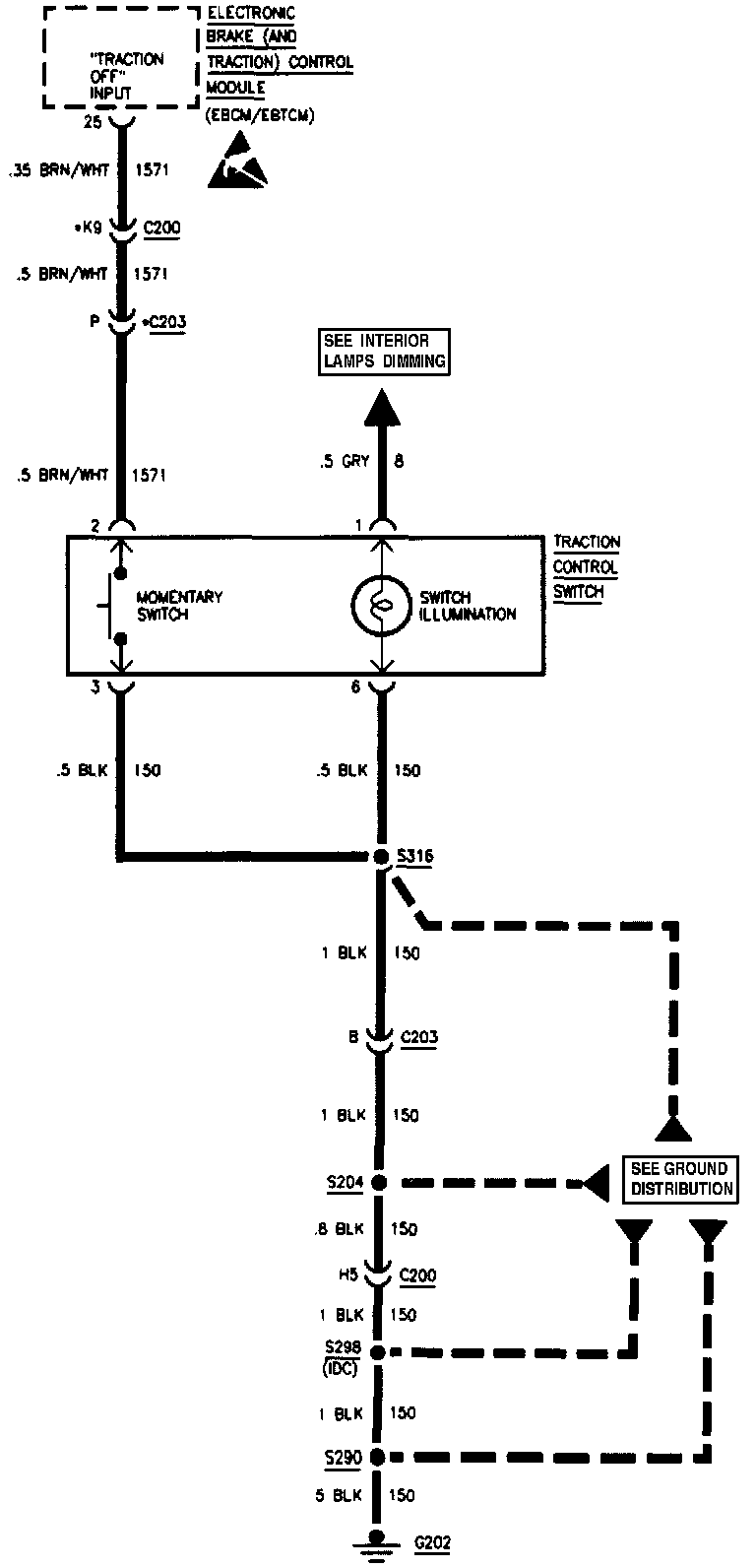

Antilock Brakes/Traction Control:

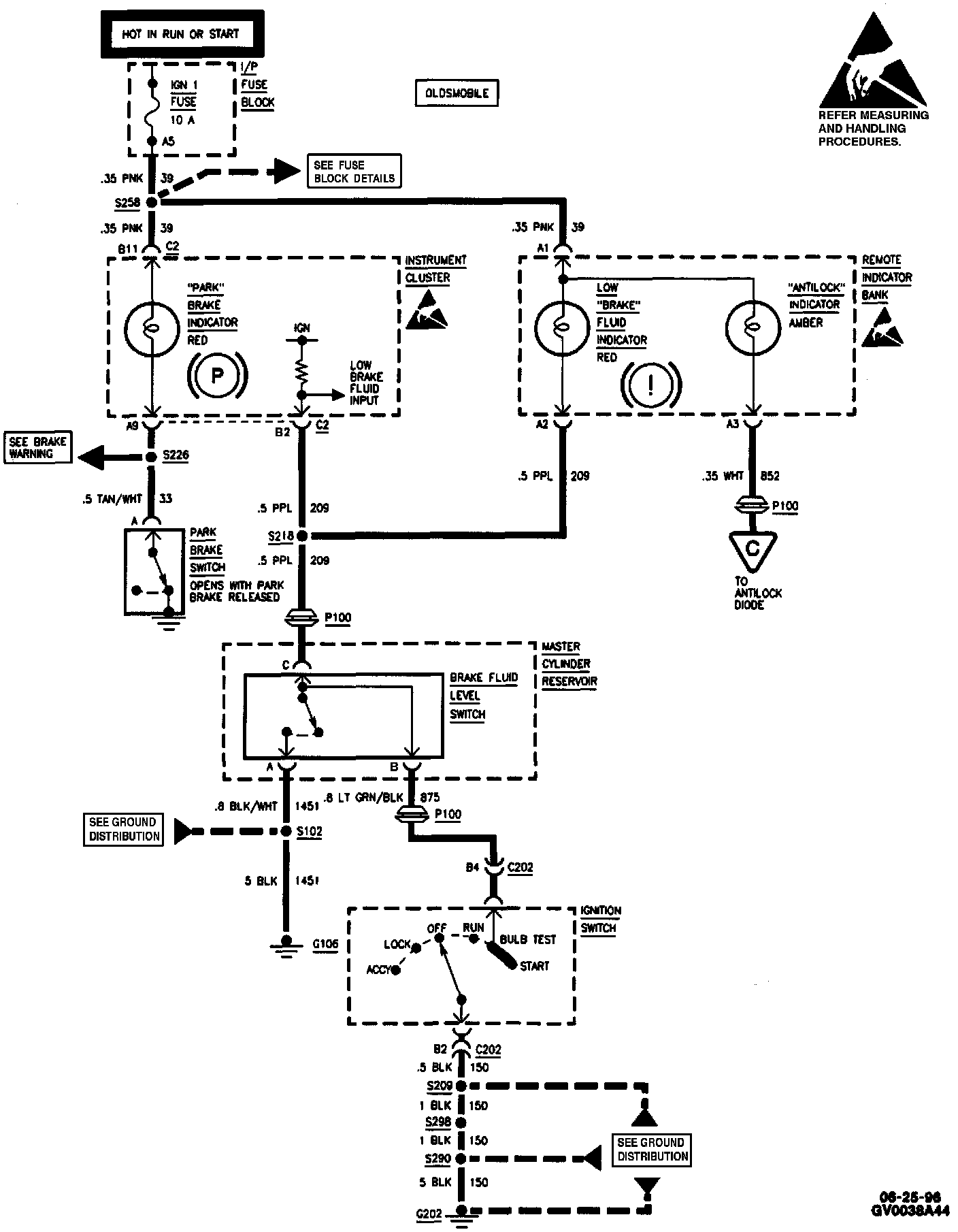

Antilock Brakes/Traction Control:

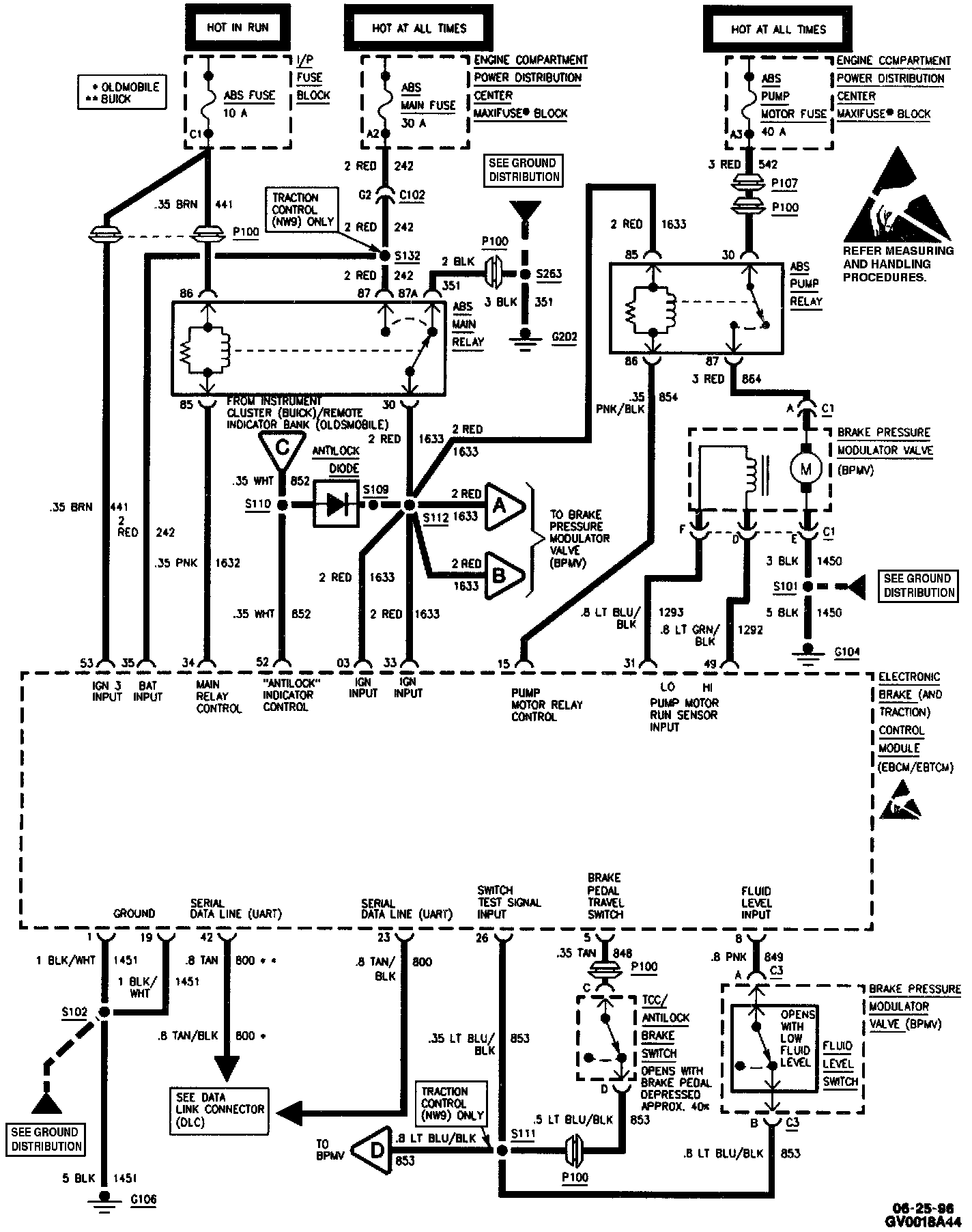

Antilock Brakes/Traction Control:

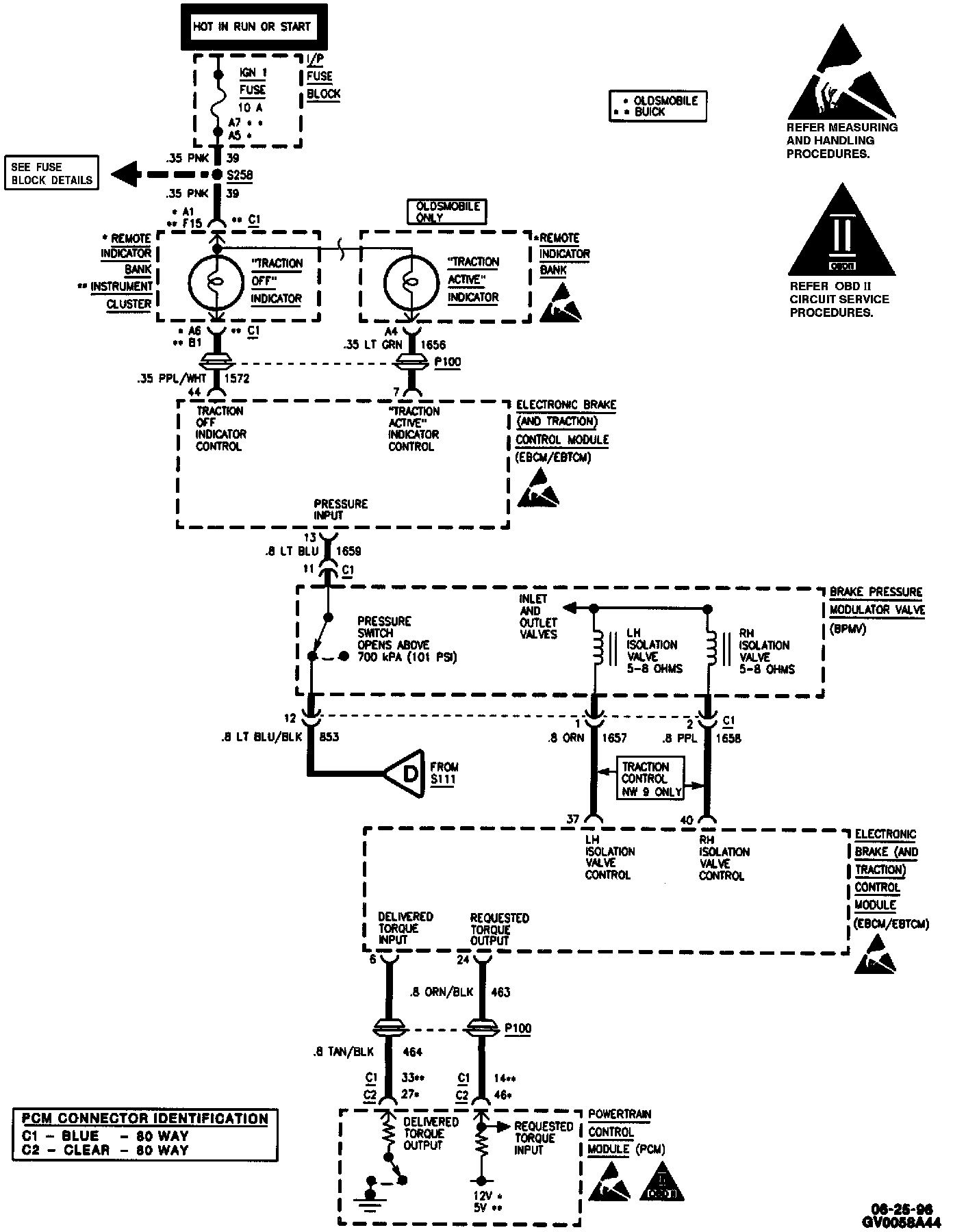

Antilock Brakes/Traction Control:

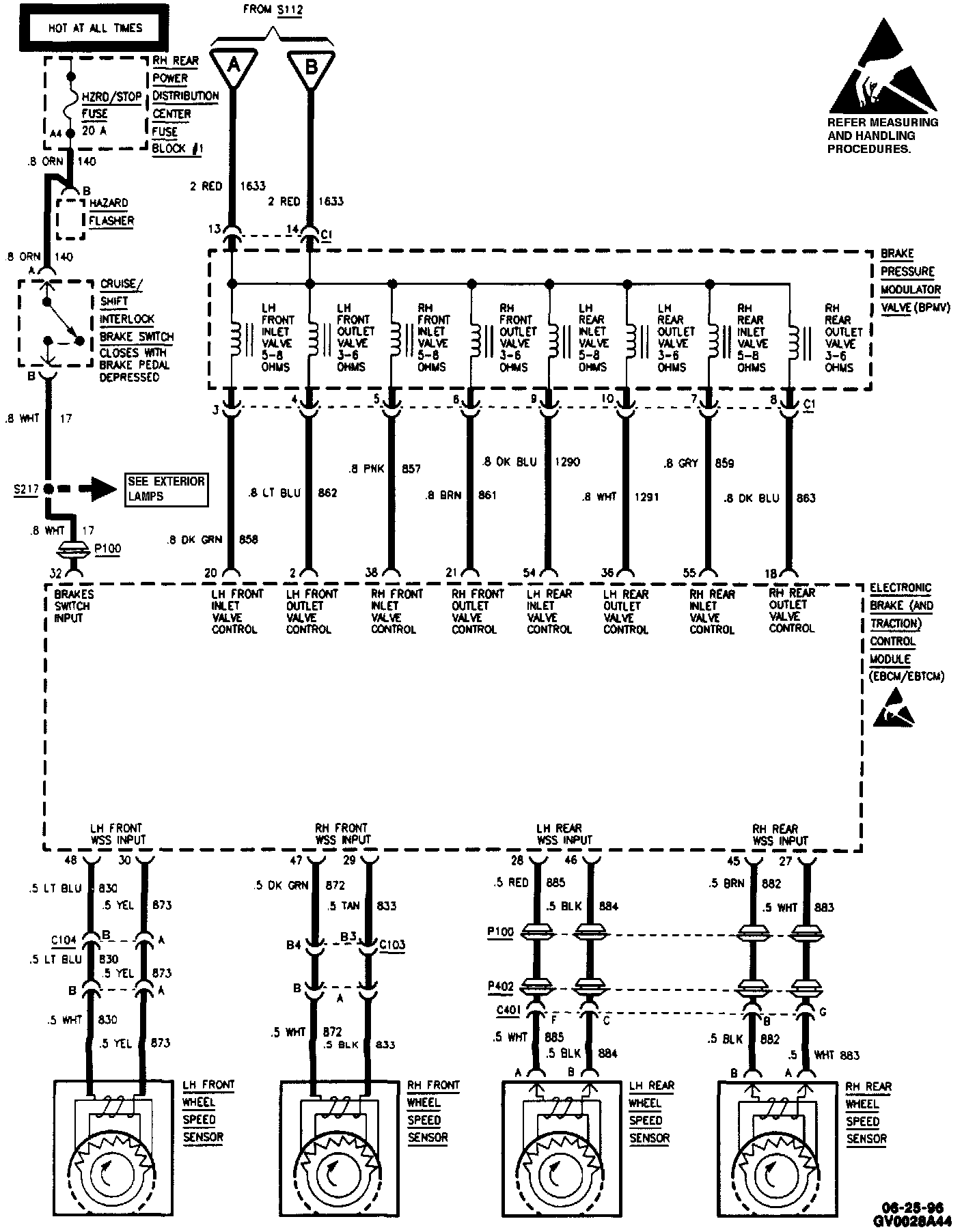

Antilock Brakes/Traction Control:
