Keyless Entry

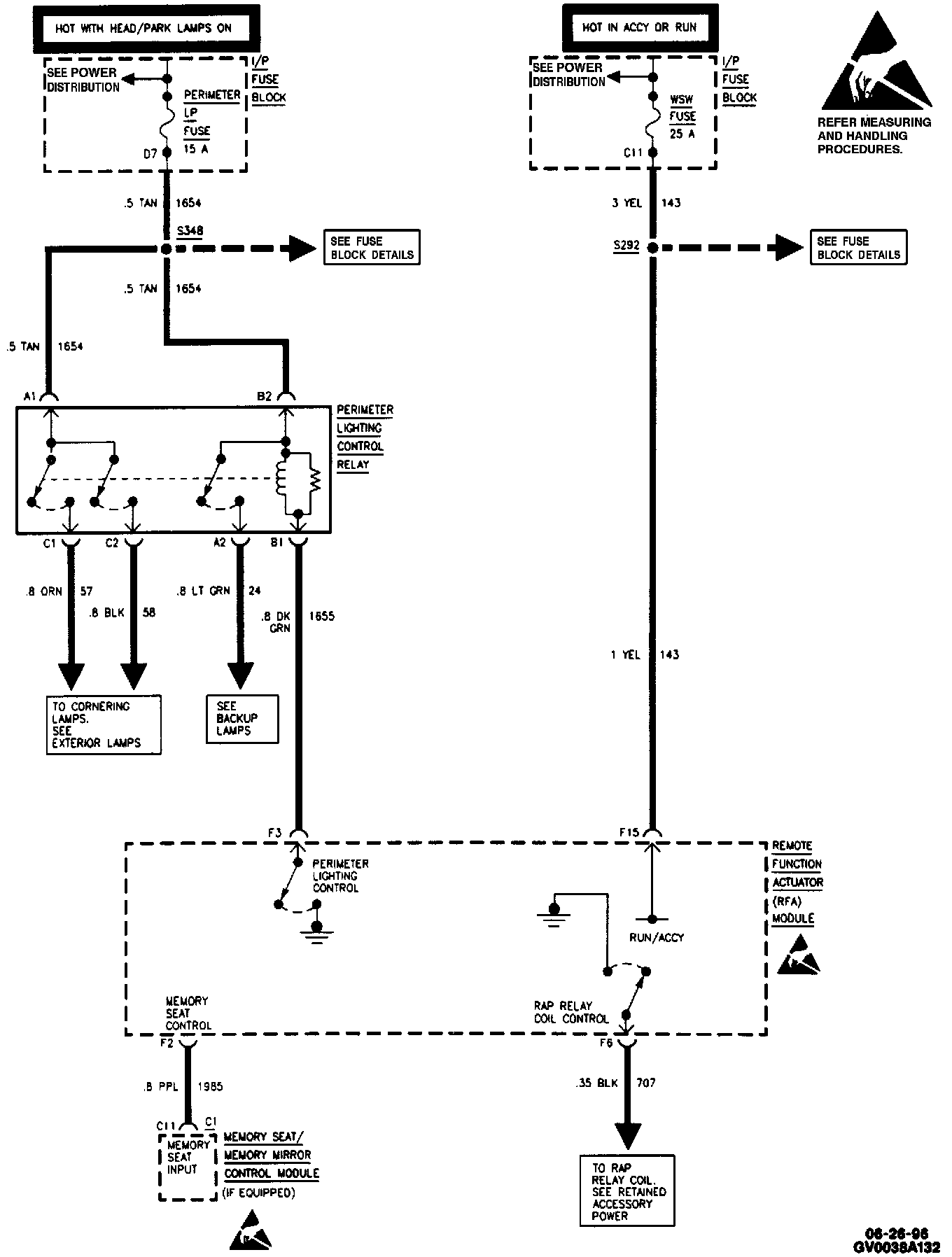

Keyless Entry (Part 1 Of 7):

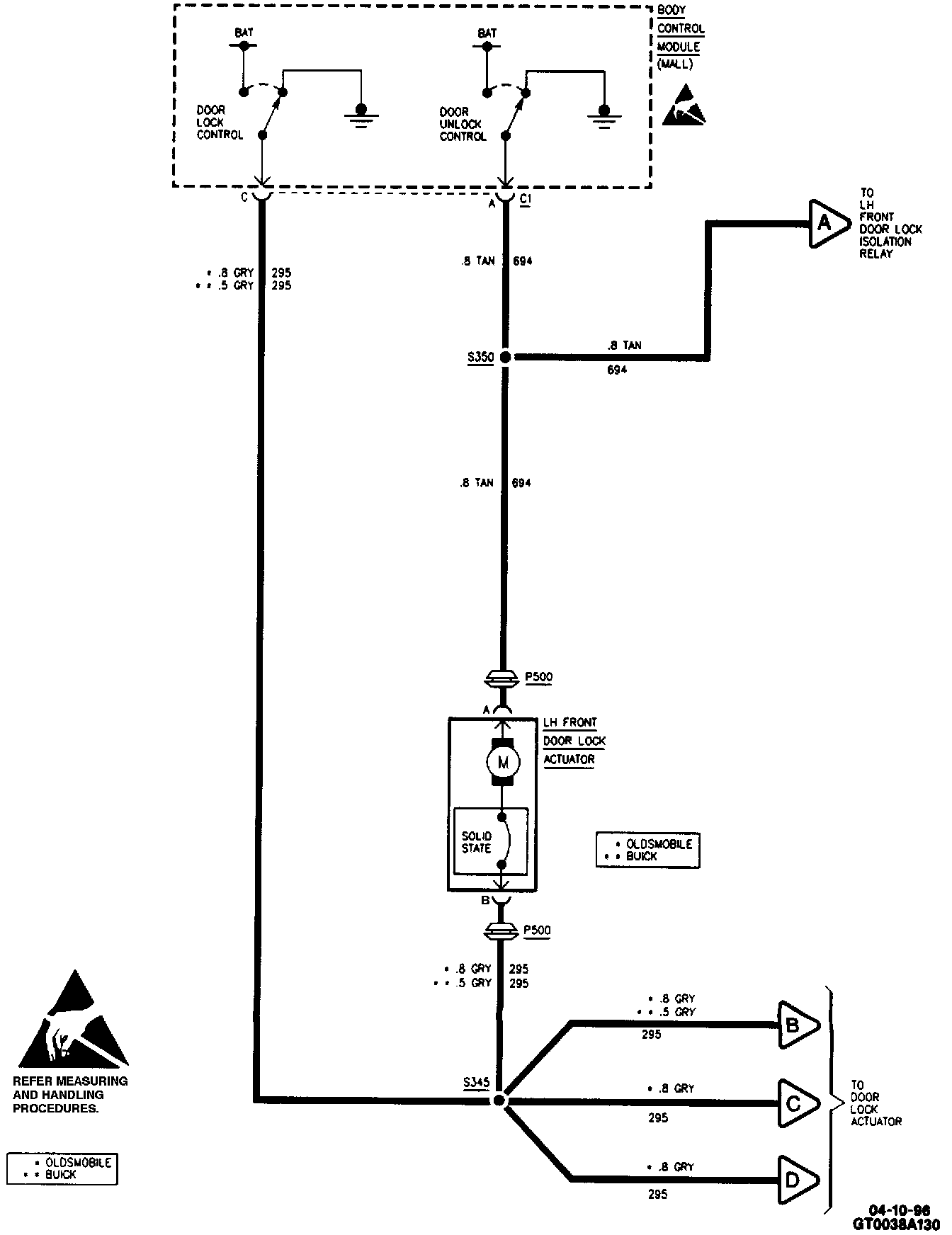

Keyless Entry (Part 2 Of 7):

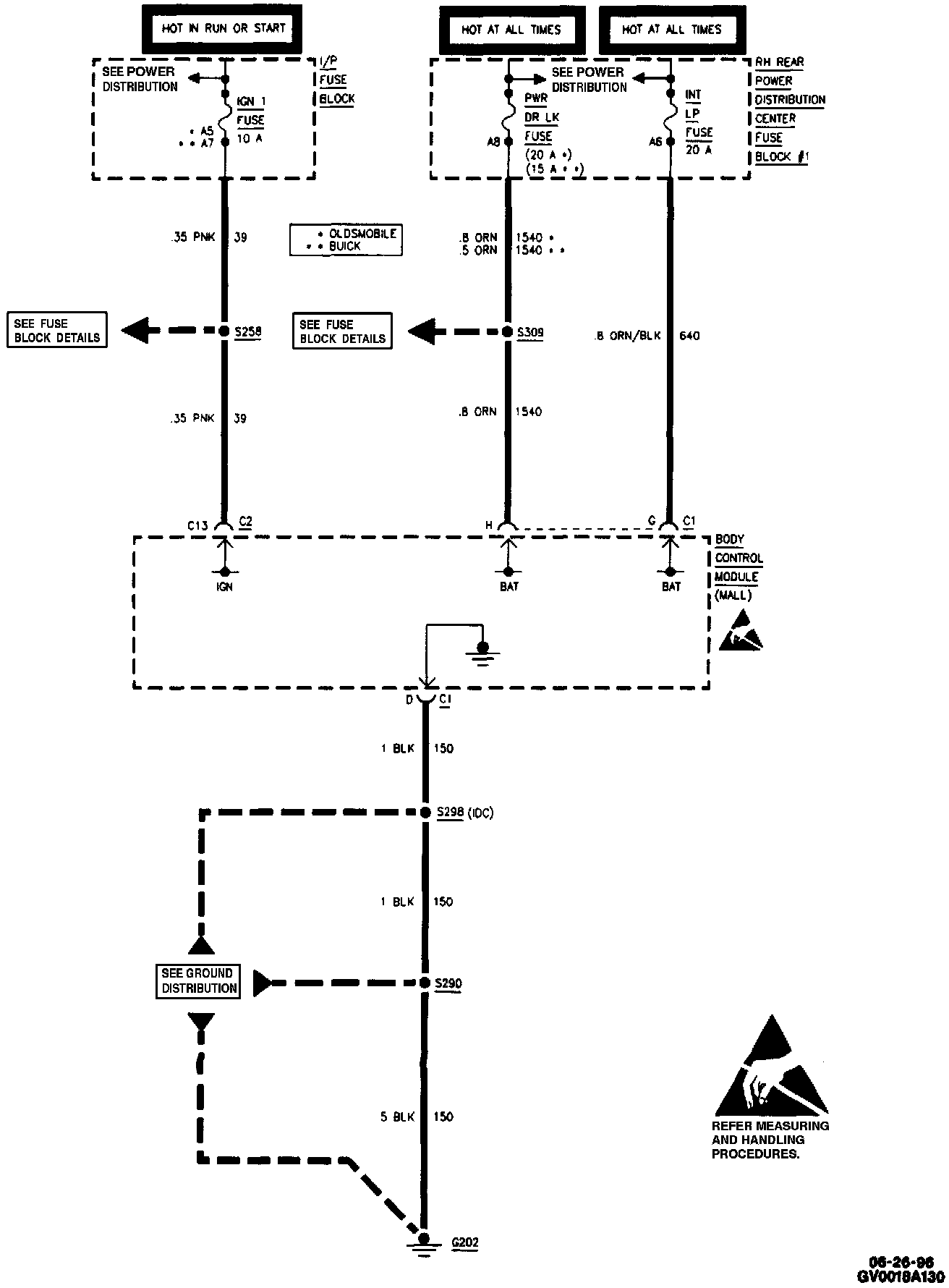

Keyless Entry (Part 3 Of 7):




Keyless Entry (Part 4 Of 7):




Keyless Entry (Part 5 Of 7):




Keyless Entry (Part 6 Of 7):




Keyless Entry (Part 7 Of 7):
