Automatic Transmission/Transaxle

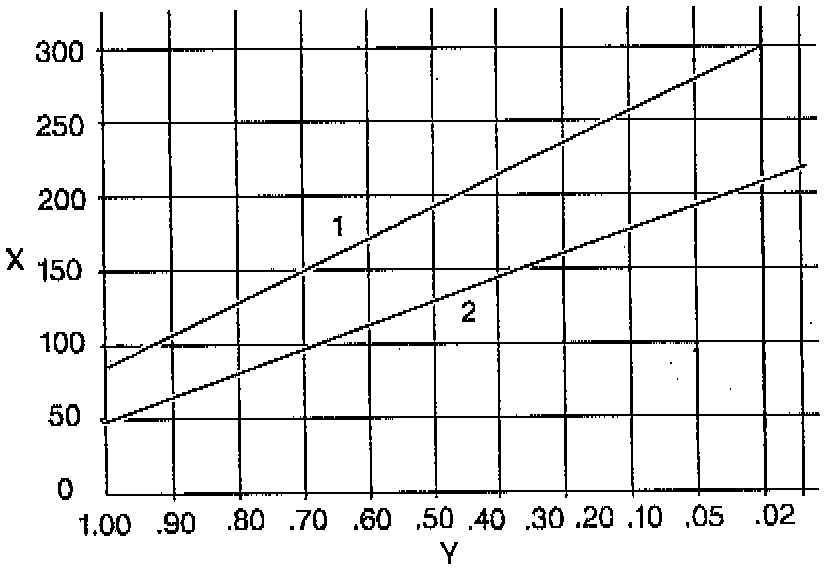

The vertical axis represents line pressure PSI.

Line #1 represents Reverse gear

Line #2 represents Park, Neutral, and Drive gear

Cooler Flow Rates: 1500 + RPM = 7-9 liters per minute at Min Line, 12-14 liters per minute at Max Line.
