Sunroof / Moonroof: Service and Repair

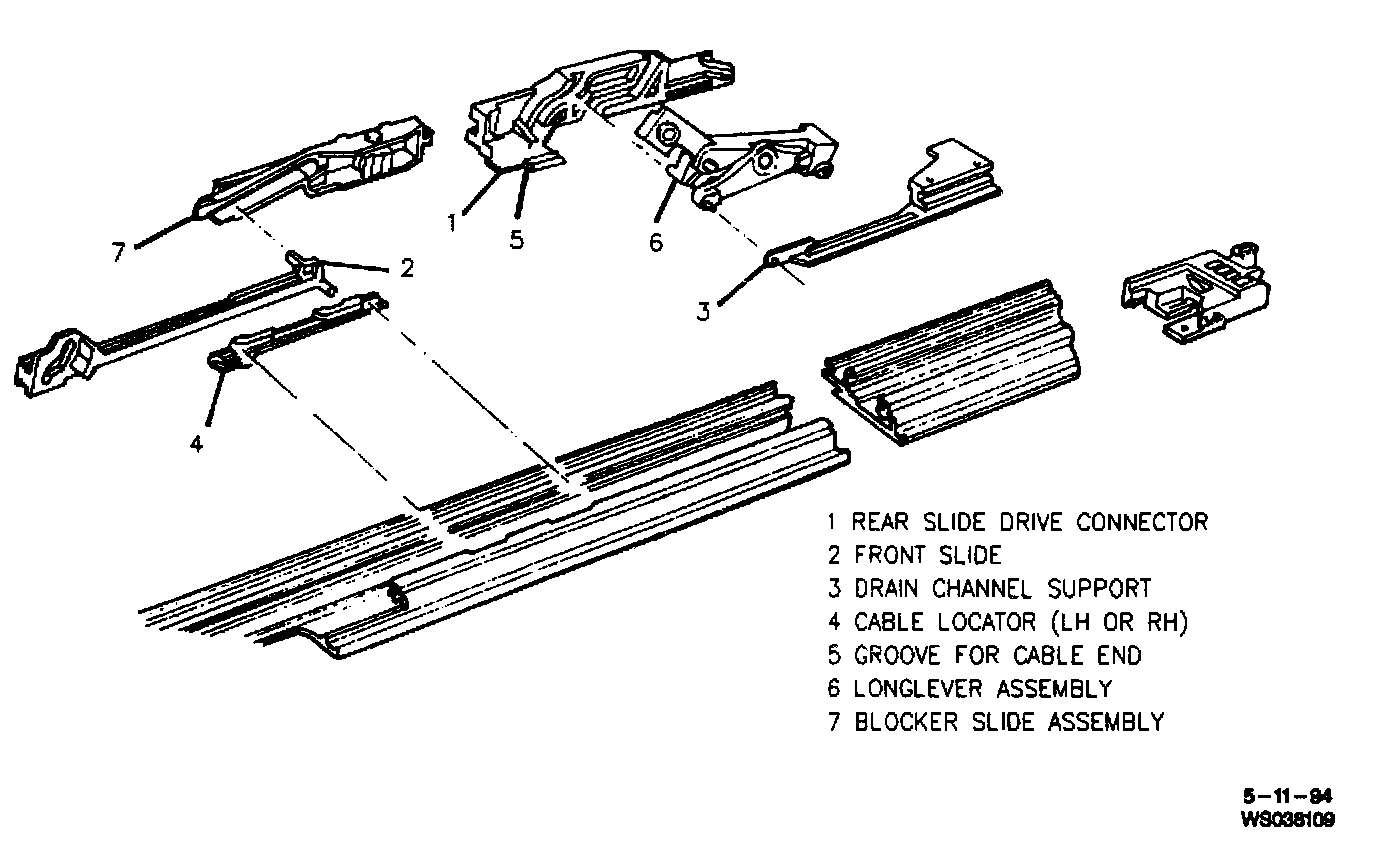

Guide - Disassembled View:






Remove or Disconnect

1. Wind deflector.
2. Window.
3. Drain channel.
4. Motor and drive gear.
5. Drive cable locators.

Important
^ System should be in vent position so cables are fully recessed in drive cable tubes.

6. Front slide from guide.
7. Two attaching screws (two each side) from front and center of guide track.
8. Pull guide outboard to release from lips of housing, then forward and upward slightly to release rear end of guide from finger lip.
9. Slide guide from under drive cables tube and withdraw guide assembly from roof module.

Install or Connect

1. Slide guide from under drive cables tube and withdraw guide assembly from roof module.
2. Pull guide outboard to release from lips of housing, then forward and upward slightly to release rear end of guide from finger lip.
3. Two attaching screws (two each side) from front and center of guide track.
4. Front slide from guide.

Important
^ Install window panel before wind deflector to avoid possible damage to deflector by side adjustment brackets if system is actuated.

5. Drive cable locators.
6. Motor and drive gear.
7. Drain channel.
8. Window.
9. Wind deflector.
