Cutlass Supreme V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>
Left Front Door Lock Switch
Left Front Door Lock Switch

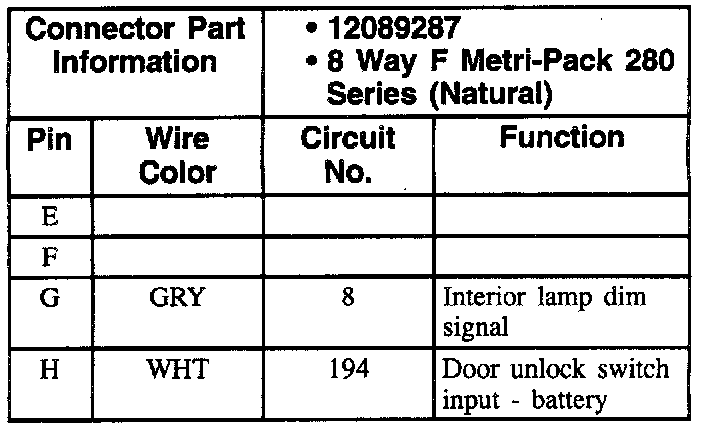

Door Lock Switch, LH (Part 1 Of 2):

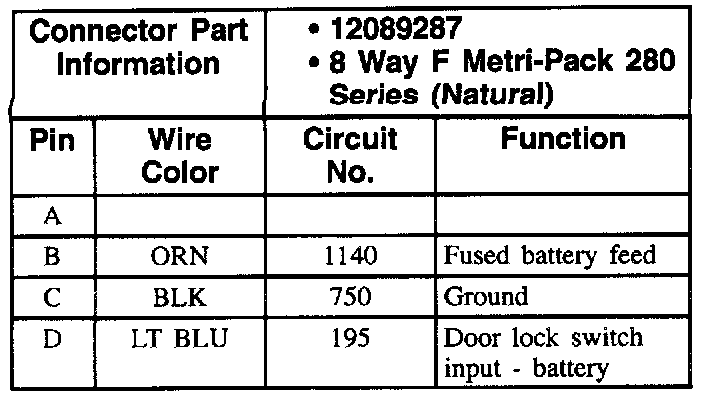

Door Lock Switch, LH (Part 2 Of 2):
Door Lock Switch, LH:
