Cutlass Supreme V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
LF
LF

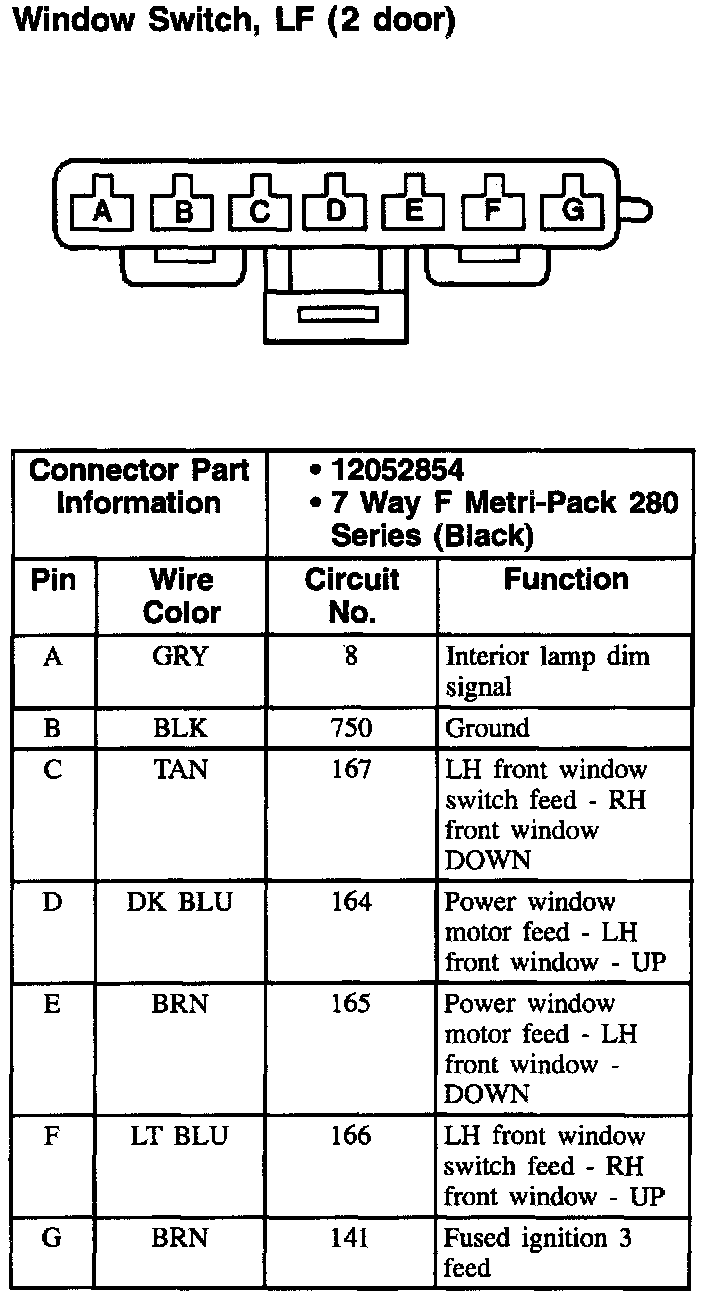

Window Switch, LF (2 Door):

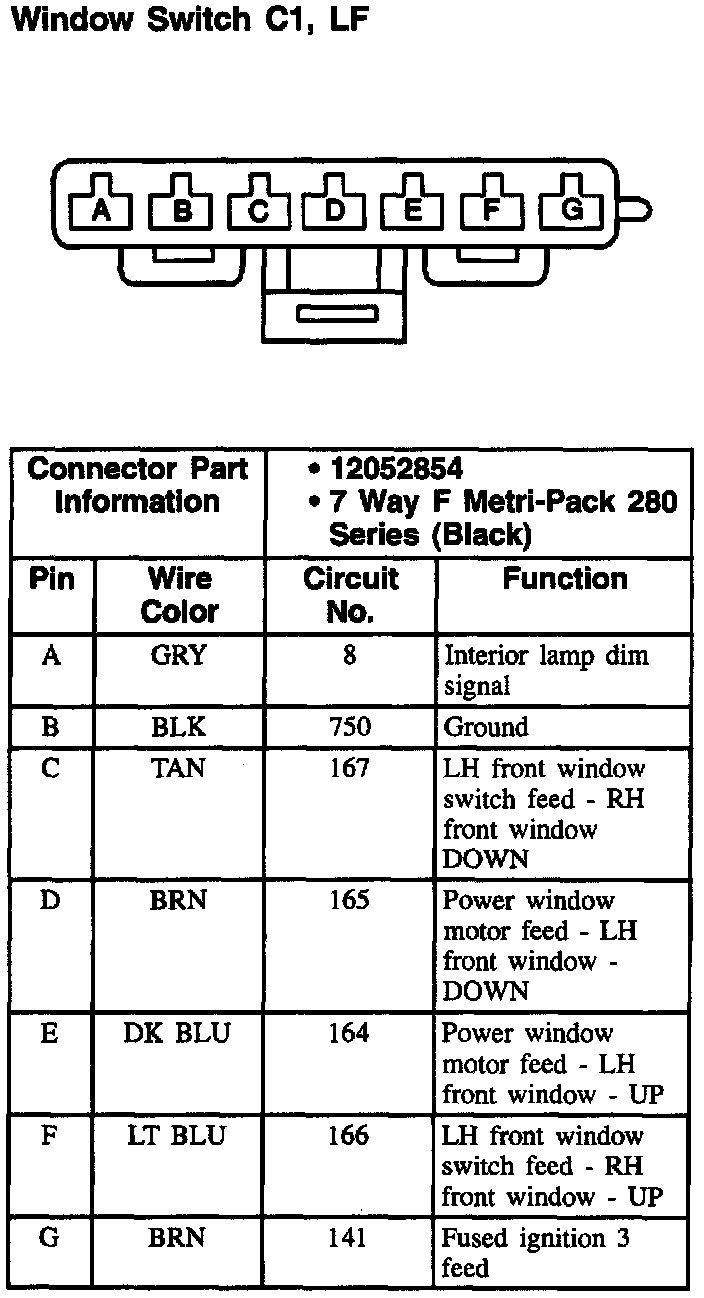

Window Switch, LF: C1:
