Instrument Panel Cluster Replacement

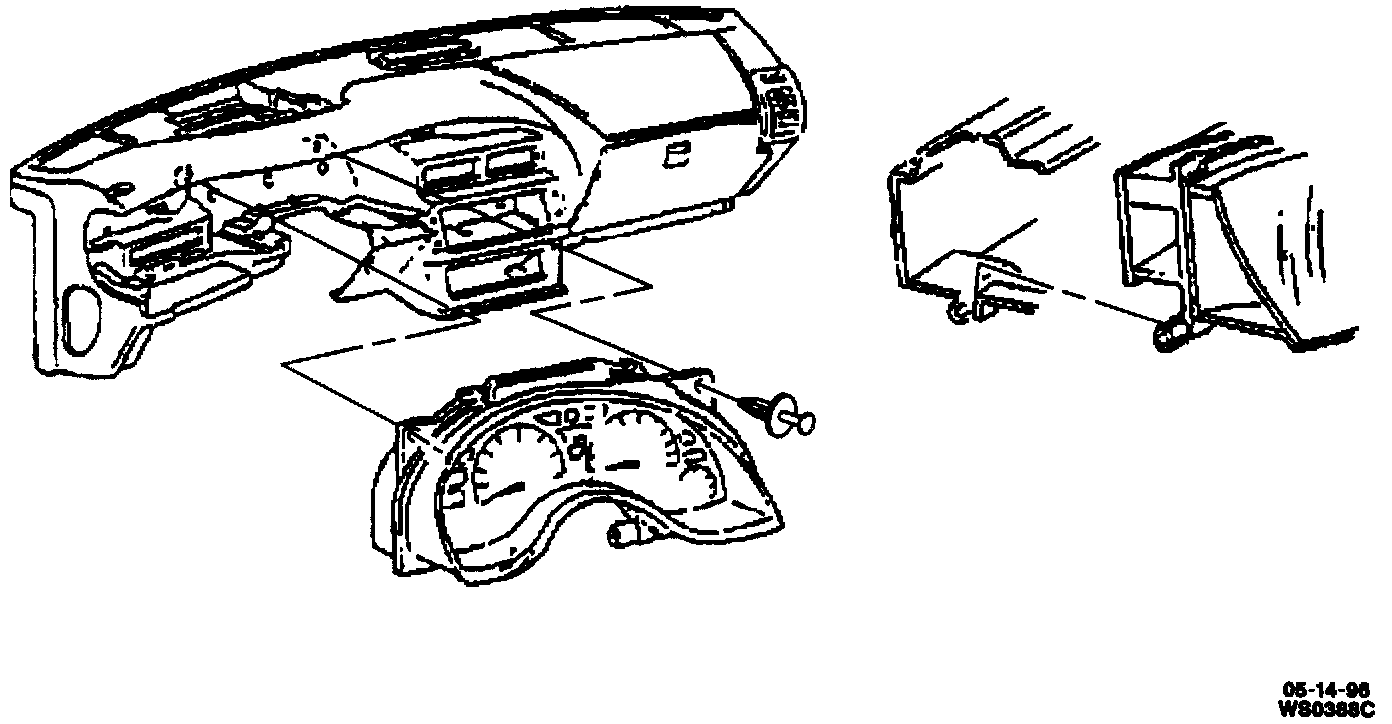

Instrument Panel Cluster (Oldsmobile):

Remove or Disconnect
1. Instrument panel cluster trim plate.
2. Two push-in retainers from top of instrument panel clusters.
3. Rotate top of instrument panel cluster rearward and disengage locating pins on bottom of instrument panel cluster at the instrument panel.
4. Electrical connector.

Install or Connect
1. Electrical connector.
2. Position locating pins on bottom of instrument panel cluster to pin receivers in instrument panel.
3. Rotate bottom of instrument panel cluster forward and engage locating pins on bottom of instrument panel cluster at the instrument panel.
4. Two push-in retainers to top of instrument panel clusters.
5. Instrument panel cluster trim plate.
