Horn: Service and Repair

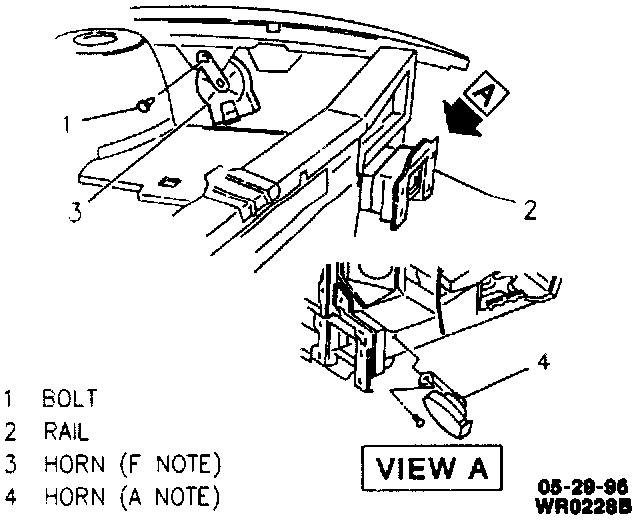

Horn Mounting (Oldsmobile):

"F" Note Horn

Remove or Disconnect
1. Open hood.
2. Upper diagonal brace.
3. Air cleaner.
4. Window washer solvent container.
5. Battery.
6. Electrical connector to horn.
7. Bolt/screw from horn.
8. Horn.

Install or Connect

NOTICE: Refer to Service Precautions.

1. Horn.
2. Bolt to horn.

Tighten
^ Bolt/Screw to 15 N.m (11 lb. ft.).

3. Electrical connector.
4. Battery.
5. Window washer solvent container.
6. Air cleaner.
7. Upper diagonal brace.
8. Close hood.

"A" Note Horn

Remove or Disconnect
1. Electrical connector from horn.
2. Bolt/screw from horn.
3. Horn.

Install or Connect
1. Horn.
2. Bolt/screw to horn.

Tighten
^ Bolt/screw to 4 N.m (36 lb. in.).

3. Electrical connector to horn.
