Electrical Diagrams

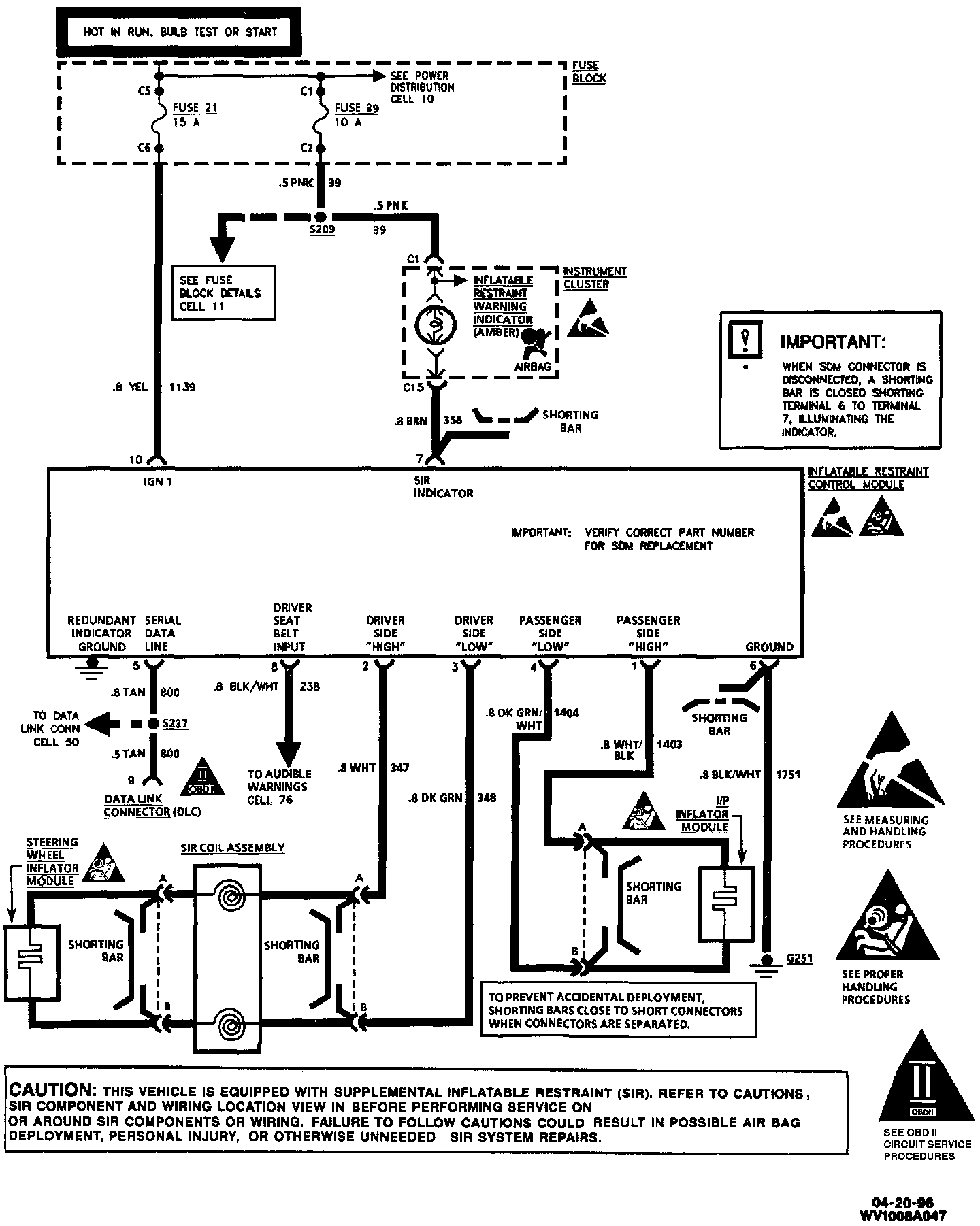

Supplemental Inflatable Restraint (SIR) (Part 1 Of 2):

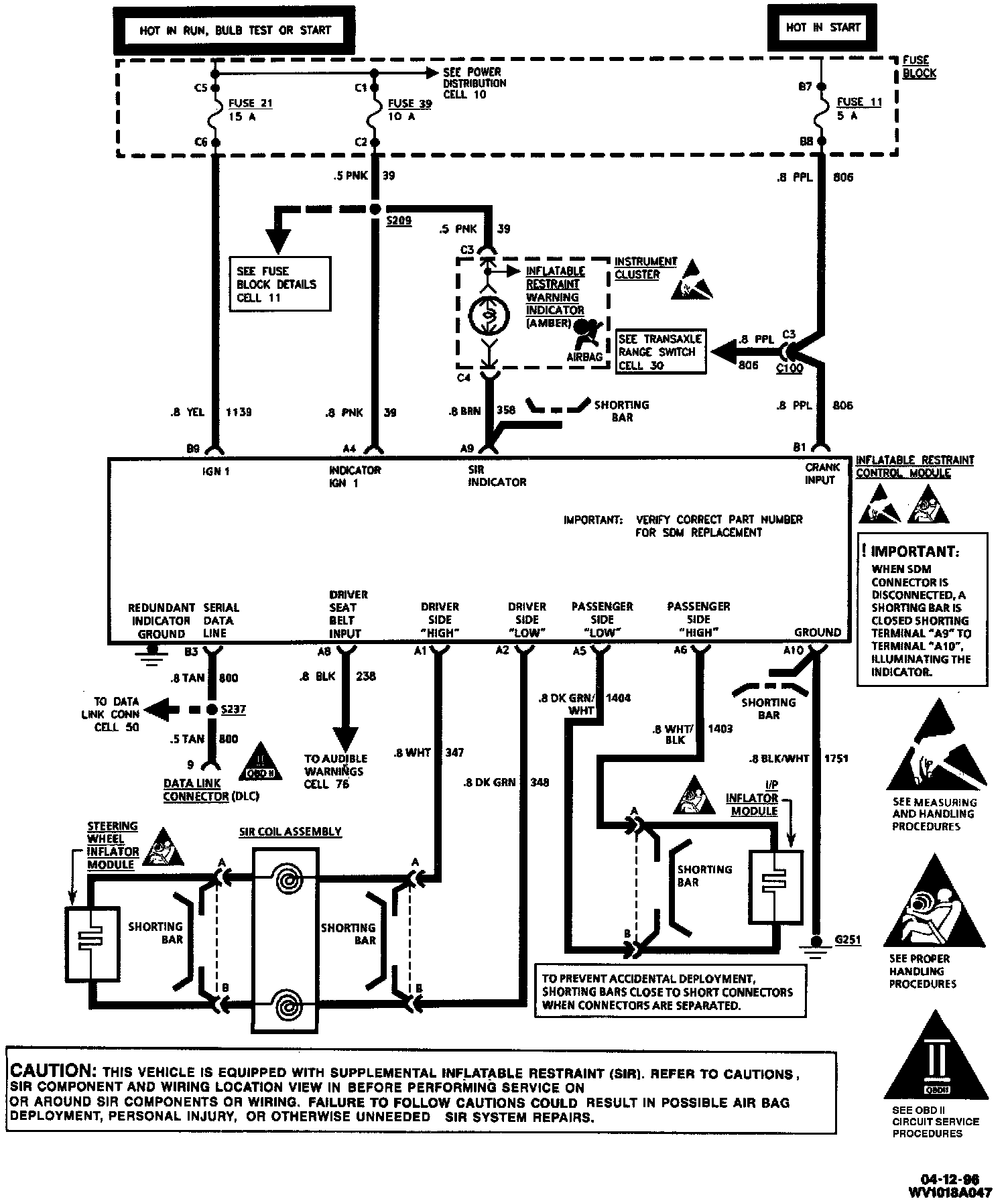

Supplemental Inflatable Restraint (SIR) (Part 2 Of 2):
